OEM OD 25.4mm Heat Exchanger Copper Tube CU-DHP C12000 Material
OEM OD 25.4mm Heat Exchanger Copper Tube CU-DHP C12000 Material
OEM OD 25.4mm Heat Exchanger Copper Tube CU-DHP C12000 Material
OEM OD 25.4mm Heat Exchanger Copper Tube CU-DHP C12000 Material
Specifications
Brand Name :
Transense
Model Number :
CU-DHP;C12000
Certification :
Rohs
Place of Origin :
Jiangsu, China
MOQ :
1 ton
Price :
USD LME Cu + Fabrication cost
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
400 Tons one month
Delivery Time :
3-4 weeks
Packaging Details :
Bundle and wooden case
Material :
CU-DHP;C12000
Annealing state :
Soft; semi-hard
Standard :
ASTMB68;JISH3300;GB/T19447;EN12735
Surface :
Washed and clean
Alloy or not :
Non-Alloy
Grade :
Copper
Product name :
Copper condenser tube
Warranty :
1 years
Description

Condenser Tube for central air-conditioner centrifuge,shell heat exchanger

Product Description

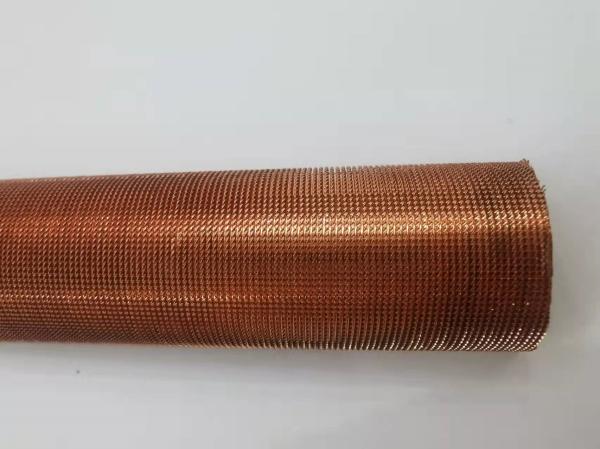

Copper condenser tube,specially designed for the condenser, the sharp ridges on the radial and axial outside finned section of the tube destroy the surface tension of gas, so as to make the condensing liquid dripping. The tube has high heat transfer coefficient and condensing efficiancy.The Process of Copper Condenser Tube is Extruded processes (Rolling).Copper Condenser Tube will pass 100% Eddy Current Testing, 100% hydraulic Testing.OEM of copper condenser tube is available according to drawings and/or samples.Copper condenser tubes are sold well in U.S.A, Germany, Australia etc.

Application

Copper condenser tube especially suitable for central air-conditioner centrifuge, water-cooled screw chilled water units, the shell heat exchanger, heat exchanger with phase transition.Copper condenser tubes are Widely used in petroleum industry, petrochemical industry, metallurgical industry, power industry, food, maritime,home appliances such as refrigerator and air-condition, automobile industry etc.

Packing of copper condenser tube Outside: Plywood sea-worthy case or pallet.

Copper Condenser Tube
Item Light tube Wing fragment
O.D. O.D. Wall Thickness minimum Wall Thickness Ridge Height Nominal outside surface area actualoutside surface area Nominal inside surface area Nominal inside surface area
mm mm mm mm mm ㎡/m ㎡/m ㎡/m ㎡/m
1 25.4 25.15 0.635 0.56 0.4 0.0798 0.3098 0.0725 0.1202

OEM OD 25.4mm Heat Exchanger Copper Tube CU-DHP C12000 Material

OEM OD 25.4mm Heat Exchanger Copper Tube CU-DHP C12000 MaterialOEM OD 25.4mm Heat Exchanger Copper Tube CU-DHP C12000 Material
