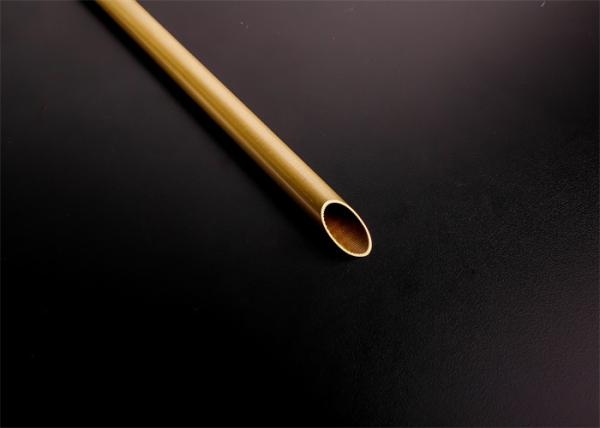

Rohs Flooded Evaporator Tube Semi Hard Annealing air conditioner copper tube
Rohs Flooded Evaporator Tube Semi Hard Annealing air conditioner copper tube
Rohs Flooded Evaporator Tube Semi Hard Annealing air conditioner copper tube
Rohs Flooded Evaporator Tube Semi Hard Annealing air conditioner copper tube
Specifications
Brand Name :
Transense
Model Number :
CU-DHP;C12000;C11000
Certification :
Rohs;ISO9001;ISO14001;ISO45001;PED4.3
Place of Origin :
Jiangsu, China
MOQ :
1 ton
Price :
USD LME Cu + Fabrication cost
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
200 Tons one month
Delivery Time :
3-4 weeks
Packaging Details :
Bundle and wooden case
Material :
CU-DHP;C12000;C11000
Annealing state :
semi-hard
Standard :
ASTMB68;JISH3300;GB/T19447;EN12735
Surface :
clean
Alloy Or Not :
Non-Alloy
Grade :
Copper
Product namee :
Evaporator Tube
Description

Evaporator Tube suitable for flooded evaporator in the central air-conditioner centrifuge

Product Description

Specially designed finned section, which form evaporation core in the flooded evaporator during the evaporating and help accelerate the evaporation. The heat exchanes efficiency is enhanced by the special design Furthermore, enhancement of the inside surface of the evaporator tube reduce forming the thermal resistance on the inside surface of tube and the heat exchange efficiency is improved a lot.The surface of the evaporator tube is densely covered with micropores, and the lower part of the evaporating hole is connected with a groove. This structure of evaporator tube improves the density of the core of the vaporization and promotes the heat transfer effect of the boiling.

Application

Evaporator tubes suitable for full night or falling film evaporators.The evaporator tube especially suitable for flooded evaporator in the central air-conditioner centrifuge, water-cooled screw chilled water units, the shell heat exchansger.

Product name:Evaporator tube
Item Light tube Wing fragment
O.D. O.D. Wall Thickness minimum Wall Thickness Ridge Height Nominal outside surface area actualoutside surface area Nominal inside surface area Nominal inside surface area
mm mm mm mm mm ㎡/m ㎡/m ㎡/m ㎡/m
1 15.88 15.7 0.635 0.56 0.3 0.0499 0.1698 0.043 0.0657
2 19.05 18.85 0.635 0.56 0.38 0.0598 0.2056 0.0529 0.0901
3 19.05 18.85 0.711 0.63 0.38 0.0598 0.2056 0.0526 0.0901
4 19.05 18.85 0.889 0.8 0.38 0.0598 0.2056 0.0523 0.0895
5 25.4 25.25 0.635 0.56 0.4 0.0798 0.2783 0.0729 0.1219

Rohs Flooded Evaporator Tube Semi Hard Annealing air conditioner copper tubeRohs Flooded Evaporator Tube Semi Hard Annealing air conditioner copper tube
