EN12735 Inner Grooved Copper Tube , OD 9.52MM Heating And Cooling Pipes
EN12735 Inner Grooved Copper Tube , OD 9.52MM Heating And Cooling Pipes
EN12735 Inner Grooved Copper Tube , OD 9.52MM Heating And Cooling Pipes
EN12735 Inner Grooved Copper Tube , OD 9.52MM Heating And Cooling Pipes
Specifications
Brand Name :
Transense
Model Number :
CU-DHP
Certification :
Rohs;ISO9001;ISO14001;ISO45001;PED4.3
Place of Origin :
Jiangsu, China
MOQ :
1 ton
Price :
USD LME Cu + Fabrication cost
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
400 ton one Month
Delivery Time :
3-4 weeks
Packaging Details :
Coil
Material :
CU-DHP
Annealing state :
Soft; semi-hard
Standard :
GB/T19447;EN12735
Surface :
Washed
Alloy or not :
Non-Alloy
Grade :
Copper
Product name :
Inner Grooved Tubes For Heating And Cooling Systems
colour :
Red
Description

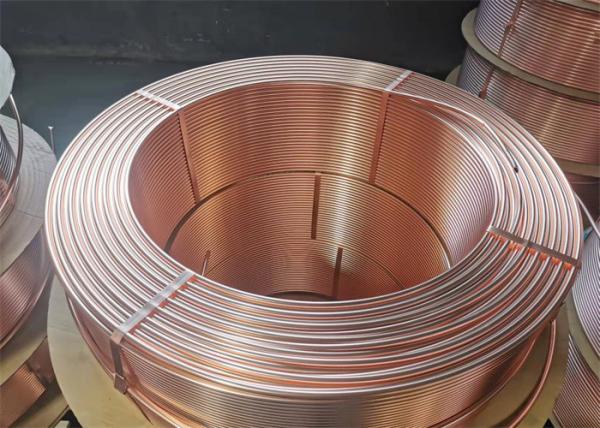

Inner Grooved Tubes For Heating And Cooling Systems

Product Description
Inner-grooved Tubes produced by our company Internal and external surface cleaning,high dimensional accuracy,easy to weld and process,is produced via Horizontal continuous casting technology.Inner-grooved Tubes produced by our company is mainly used in the connection of heat exchangers and pipeline systems in the air conditioning and refrigeration industries. As the tubes comprise de-oxidized copper, it is not affected through reducing atmosphere.Most commonly supplied in the soft and light annealed form, Inner Grooved Tubes can be ordered in hard drawn temper.


Inner-grooved Tube Application fields
Inner-grooved Tubes Inner Grooved Tubes are used in mass production lines for heating and cooling systems and heat exchangers.

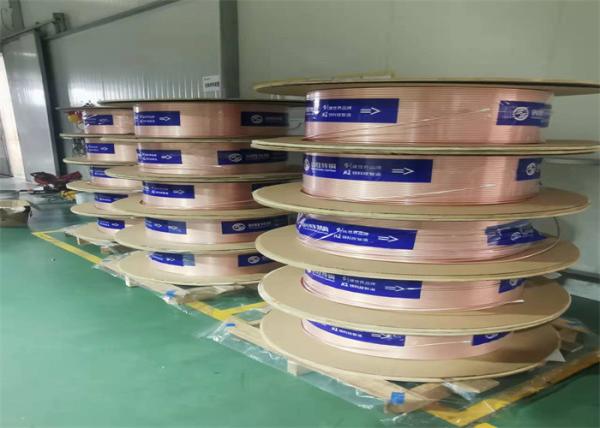

Packing: Wooden pallet packing strong seaworthy

Product name: Inner Grooved Tubes For Heating And Cooling Systems
Nominal SizeOuter diameterBottom wall thicknessFin heightApex angleHelix angleFin numberUnit weight
mmmmmm°°Ng/m
5*0.20+0.14-18°5.000.200.1420184033
7*0.20+0.10-18°7.000.200.1040186547
7*0.23+0.10-30°7.000.230.1040306048
7*0.23+0.13-35°7.000.230.1310356548.5
7*0.24+0.18-18°7.000.240.1815185054
7*0.25+0.18-18°7.000.250.1840185057
7*0.30+0.15-18°7.000.300.1540186564
7.94*0.24+0.18-18°7.940.240.1840185060
7.94*0.40+0.18-18°7.940.400.1830186095
9.52*0.27+0.16-18°9.520.270.1630186081
9.52*0.41+0.20-18°9.520.410.20301860116
9.52*0.50+0.15-18°9.520.500.15301860138
9.52*0.50+0.20-18°9.520.500.20501860140
