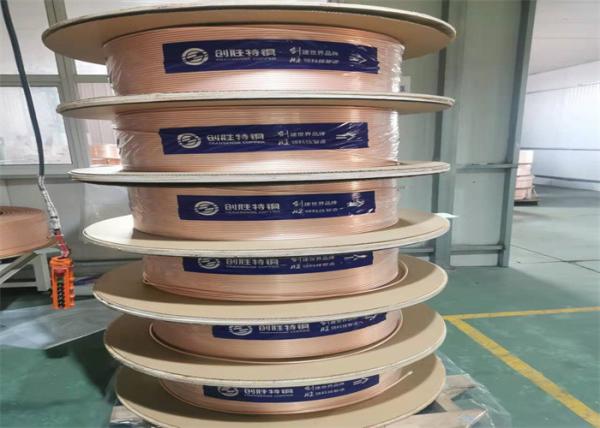

HVACR Field Copper Coil Tube ASTM B-280 Washed and clean Surface
HVACR Field Copper Coil Tube ASTM B-280 Washed and clean Surface
HVACR Field Copper Coil Tube ASTM B-280 Washed and clean Surface
HVACR Field Copper Coil Tube ASTM B-280 Washed and clean Surface
Specifications
Brand Name :
Transense
Model Number :
CU-DHP;C12000;C11000
Certification :
Rohs
Place of Origin :
Jiangsu, China
MOQ :
1 ton
Price :
USD LME Cu + Fabrication cost
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
400 Tons one month
Delivery Time :
3-4 weeks
Packaging Details :
Coil
Material :
CU-DHP;C12000
Annealing state :
Soft; semi-hard;hard
Standard :
ASTM B-280, EN-12735, JISH-3300, GB/T-17791
Surface :
Washed and clean
Alloy or not :
Non-Alloy
Grade :
Copper
Product name :
Level Wound Coil
colour :
Red
Description

Copper Seamless Level Wound Coil Tubes Used For HVACR Field

Product Description

The seamless coil tube (Level Wound Coil)produced by our company is mainly used in the connection of heat exchangers and pipeline systems in the air conditioning and refrigeration industries.The dimension of :Level Wound Coil is customizable, ensuring customers to get the right copper tube for their needs.Level Wound Coil (LWC) Copper Tubes feature minimum copper content of 99.9% as per IS-191 and are available in Forged / Hot Rolled / Extruded as well as Cold Worked finish in different dimensions and specifications. :Level Wound Coil are also available in hard, half-hard as well as soft conditions.

Application

Level Wound Coil used in the connection of heat exchangers and pipeline systems in the air conditioning and refrigeration industries & used for HVACR field.

Packing: Wooden pallet packing strong seaworthy, Coils will have to be collected into a pile to build round 3+3 or 7 coils carried on one fumigated wooden pallet. Cardboard flange to be inserted between each coil and to be placed onto the top of the highest one. Shrinking film wrapping the parcel, each parcel composed of 3+3 or 7 coils, will have to be characterized by a label including the dimension, gross weight, tare and net weight, packing number, production date.

Size of smooth Level Wound Coil
0.15 0.2 0.28 0.3 0.35 0.42 0.5 0.61 0.76 0.95 1.2 1.5
4 ■ ■ ■ ■ ■ ■ ■
4.75 ■ ■ ■ ■ ■ ■ ■ ■
5 ■ ■ ■ ■ ■ ■ ■ ■ ■ ■
6 ■ ■ ■ ■ ■ ■ ■ ■ ■ ■
6.35 ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■
7 ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■
7.94 ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■
8 ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■
9.52 ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■
10 ■ ■ ■ ■ ■ ■ ■ ■ ■ ■
12.7 ■ ■ ■ ■ ■ ■ ■ ■ ■
15.88 ■ ■ ■ ■ ■ ■ ■ ■
19.05 ■ ■ ■ ■ ■ ■
22 ■ ■ ■ ■ ■ ■

HVACR Field Copper Coil Tube ASTM B-280 Washed and clean SurfaceHVACR Field Copper Coil Tube ASTM B-280 Washed and clean Surface
