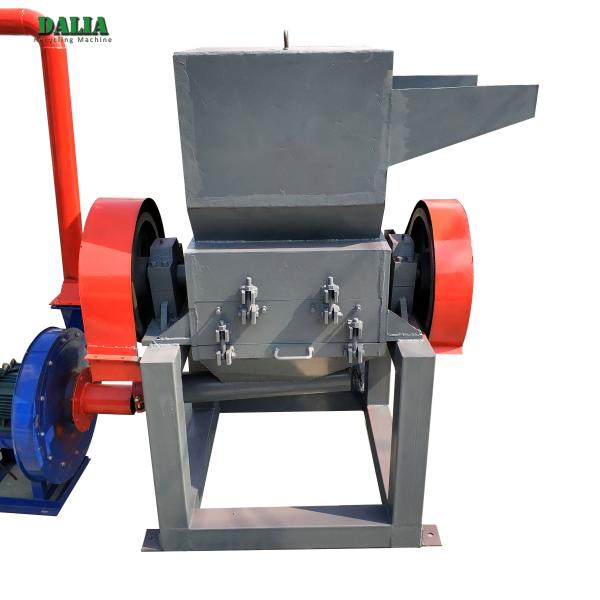

Compact Copper Wire Granulatorwet small cable granulator copper wire cable recycling machine

Wet crap cable/wire/plug recycling machine (Cable granule separation equipment)- To process waste cable and wire. Get the copper separated from waste cable and wire through crushing and gravity separation process, no copper at plastics and no plastics at copper. No incineration and pollution. It is in compliance with EHS standard, no harmfulness to workers, eco-friendly solution for waste recycling.
Automatic process, stable performance, easy for operating, easy to maintenance, high recycling rate.

Way for us

1 : All of oil hole must be filled with mechanical butter before operation (once a week)

2 : The water tank must be filled with water

3 : Press the power buttons in the following sequence: water pump/segregating unit/grinder.

feed water level regulation

1 : Adjust the water level according to the quantity of PVC/rubber particles and copper particles on the separator plate.

2 : If there are more PVC/rubber particles in copper particles, the water level could be appropriately adjusted higher.

3 : If the PVC/rubber particles don’t go up with copper particles together, the water level could be appropriately adjusted lower.

The way to replace the screen

1 : Replacing the screen is aimed to increase working efficiency, separating the PVC/rubber particles and copper particles completely.

2 : When replacing the screen, firstly, open the right cover of the grinder; then, loosen the screw of screen to remove it; finally, put the ideal screen into it.

3 : Replacing the screen according to the wire diameter (communication wire: Φ2-2.5mm;

electric wire: Φ2-2.5mm;other wire: Φ3-5mm)

4 : Adjustment of the screen: The ideal distance between the screen and the rotary cutter is about 1mm.

The way to sharpen knives

1 : Rotary cutter: Sharpen it by grinder and hold the blade at the ideal 15 degrees. ( No need to remove the blade).

2 : Stationary knife: Sharp it by grinder or grinding machine after removing the stationary knife.

3 : Knife adjustment: The ideal distance between rotary cutter and stationary knife is about 0.2mm.
