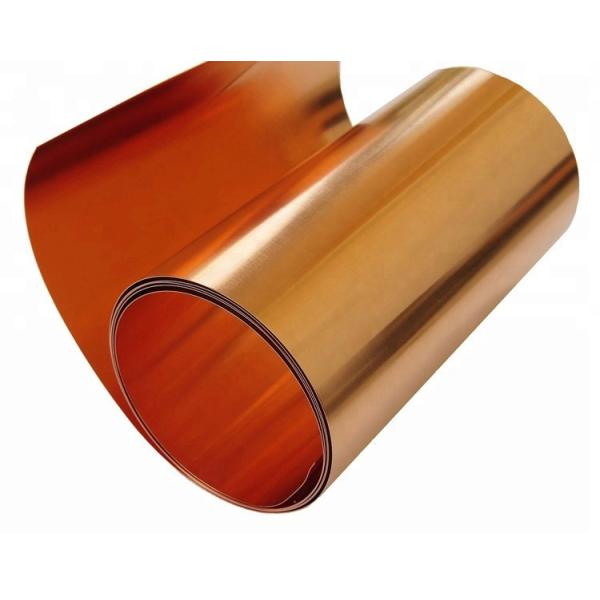

Electrolytic 25um Thickness Red Copper Sheet Metal Roll
Electrolytic 25um Thickness Red Copper Sheet Metal Roll
Electrolytic 25um Thickness Red Copper Sheet Metal Roll
Electrolytic 25um Thickness Red Copper Sheet Metal Roll
Specifications
Brand Name :
OEM
Place of Origin :
China
Supply Ability :
550T Per Month
Packaging Details :
Exporting Wooden Case
MOQ :
50kg
Price :
Negotiable
Certification :
ISO / SGS / RoHS
Delivery Time :
10 - 15 Days
Payment Terms :
L/C, T/T
Application :
substrate for growing Graphene
Width :
150mm
Material :
Red Copper
Thickness :
25um
Grade :
Red Copper
Cu (Min) :
99.99%
Alloy Or Not :
Non-alloy
Shape :
Strip Coil Roll
Type :
Plate Coil
Color :
Red Coppery
Certificate :
ISO
Length :
~90m
Package :
vacuum bag
Keyword :
Copper Foil Substrate for Growing Graphene
Description

Electrolytic 25um Thickness Red Copper Sheet Metal Roll

Product Description

This copper foil with 25 um thickness is the best candidate as substrate for growing Graphene. Copper strip is made of electrolytic copper and it goes through the processes of ingot, hot rolling, cold rolling, heat treatment, surface cleaning, cutting, finishing, and then packing. The material has excellent thermal and electrical conduction, flexible ductility and good corrosion resistance performance. It has been widely used in electrical, automotive, communications, hardware, decoration and other industries.

Specifications:

Material Tough Pitch Copper
Purity > 99.99%
Tensile Strength 28 kgf/mm
Elongation 3-8%
Hardness Test ≥ 80, HV<65
Grain Size 0.02mm
Electric Conductivity 97% @20C
Resistivity ≤0.017165
Length ~90m
Width 150mm
Thickness 25 um
Density 8.94 g·cm−3
Net weight ~3.1 kg

Electrolytic 25um Thickness Red Copper Sheet Metal Roll

Our Services

1. Reply your inquiry in 24 working hours.

2. Experienced staffs answer all your questions in fluent English.

3. Customized design is available.

4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.

5. Professional factory : We are manufacturer, specializing in laboratory equipment.

FAQ

Q1. Are you trading company or manufacturer?
A: We are factory.
Q2. How about your delivery time?
A: Generally it will take within 20 working days after receiving the payment
Specific delivery time depends on the terms and the quantity of your order.
Q3. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery and will send you photos.
Q4. How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure customers benefits.
2. We respect every customer as our friend and we sincerely do business and make friends with them no matter where they are from.

Q5. Can I ask for special designs?

A: Sure, we have a powerful technical department for supporting it.
