Heat Resistant Thickness 0.035mm Thermal Copper Foil Tape
Heat Resistant Thickness 0.035mm Thermal Copper Foil Tape
Heat Resistant Thickness 0.035mm Thermal Copper Foil Tape
Heat Resistant Thickness 0.035mm Thermal Copper Foil Tape
Specifications
Place of Origin :
China
Brand Name :
OEM
Certification :
ISO / SGS / RoHS
Supply Ability :
550T Per Month
Packaging Details :
Exporting Wooden Case
MOQ :
50kg
Price :
Negotiable
Delivery Time :
10 - 15 Days
Payment Terms :
L/C, T/T
Adhesive :
Acrylic
Adhesive Side :
Single Sided
Adhesive Type :
Pressure Sensitive
Design Printing :
Offer Printing
Material :
Cooper foil
Feature :
Heat Resistant
Use :
MASKING
Item :
Thermal Copper Foil Tape
Product :
Thermal Tape
Thickness :
0.035- 2.5mm
Width :
100-600mm
Color :
Transparent clear,yellowish,tan brown,blue, red,green,black, etc
Printing :
Custom Logo Printing
HS Code :
391910
Delivery :
3 - 7 days for quantity less than 1200 Rolls
Tape Usage :
Carton Sealing,Packing,Wrapping,Office,Construction
Port :
Shanghai,Nanjing,Qingdao,Ningbo
Description

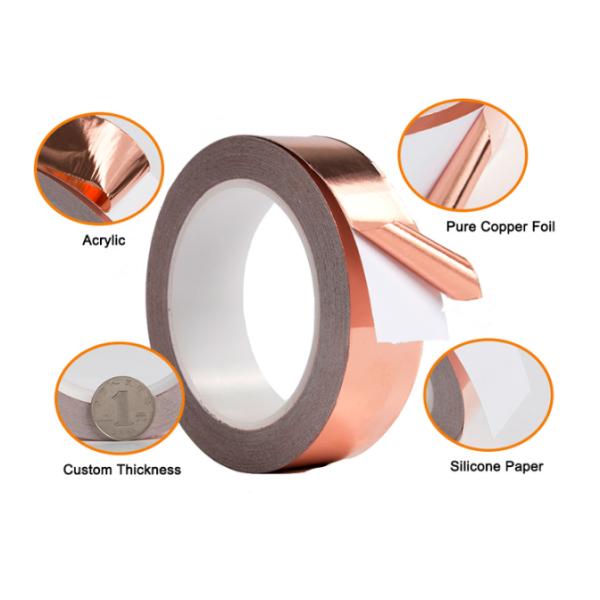

Heat Resistant Thickness 0.035mm Thermal Copper Foil Tape
Product Description
Item: Heat Resistant Tape Thermal Adhesive PCB LED Silicon Copper Foil

~ copper foil tapes uses copper foil as substrate and single sided coated with conductive acrylic adhesive. thermal conductivity copper foil tape
~ It can be divided into: self-adhesive copper foil, double side conductive copper foil tape ,single conductive copper foil tape.It has high temperature resistance ,strong adhesion ,good conductivity ,excellent shielding performance and easy die-cutting .

Main Features :

1) Waterproof, cold resistance.
2) Strong adhesion and easily peeled off. thermal conductivity copper foil tape
3) EMI shielding, prevent body harm from electromagnetic wave.
4) Non-oxidation, antistatic, UV resistance, thermal insulation and strong adhesion Moisture resistance, chemical and corrosion resistance.
5) Removable liner on adhesive side makes it easy to handle, protect the adhesive prior to application and die cut complex shape.

Technical Parameter :

Product Code

P0702

P0703

P0705

P0706

P0707

P0710

P0712

Name

Copper Foil Tape

Copper Foil Tape

Copper Foil Tape

Copper Foil Tape

Copper Foil Tape

Copper Foil Tape

Tin-Plating copper foil tape

Backing

Copper Foil /Nano Carbon copper foil

Copper Foil /Nano Carbon copper foil

Copper Foil /Nano Carbon copper foil

Copper Foil /Nano Carbon copper foil

Copper Foil /Nano Carbon copper foil

Copper Foil /Nano Carbon copper foil

Copper foil

Total Thickness (mm)

0.02

0.03

0.05

0.06

0.07

0.1

0.12

Copper foil Thickness(mm)

0.009

0.009

0.018

0.025

0.035

0.05

0.045

Peel Adhesion

1.2

1.2

1.2

1.2

1.2

1.2

0.8

Resistance(Omega)

0.05

0.05

0.05

0.05

0.05

0.05

0.03

Holding power
1kg/25mm/h

48

48

48

48

48

48

48

Short-term temperature

120

120

120

120

120

120

180

Long-term temperature

80

80

80

80

80

80

120
Application

thermal conductivity copper foil tape widely used as follows:

1) Antistatic floor (ESD floor).
2) Shielding in housings and Faraday cages.
3) Cable shielding (Wrap around the cable).
4) Suitable for precision electronic products.
5) Electrical connection between surfaces (sheets / foils).
6) Mounting transparent foils, windows for EMI/RFI shielding.
7) Temporary shielding during emission and immunity tests.
8) The back of guitar pickguards,Eliminates electrical hurm and noise.
9) Replace tracks on electrical & printed circuit boards (can solder).

Heat Resistant Thickness 0.035mm Thermal Copper Foil Tape
Q : Do you accept Customization?
A : Yes, we have our design term, we provide Logo,Packaging Color Box customization. You can give your Logo or even an idea, we can design for you or supply customization with your design.
OEM or ODM are Welcome.

Q. How can I get a Sample for OEM?

A: After the design, material, printing and sample cost confirmed, we can make sample for you, and send to you after sample picture approved.

Q. How can I control the Quality of the goods?

A: Our QC term is professional to ensure our quality product and continuous marketing, your satisfaction is our power for development. You can arrange the 3rd party inspection company for inspection, after production finished.
Q: What's the Shipping Time if I place an order?
A : Generally it's 1-2 working days for sample shipping, 3-5 days for more than 100pcs order, and it takes 3-5 days to arrival by Express.
Q: What's the Warranty Term?

A : We provide 12 months warranty. If any quality problems with our products during this period, you can send back for replacement or refund. The shipping cost is on our account.

Q:What Shipping Way is better for us?

A : For small order, express will be the best, it is fast and convenient for both of us, as for bulk order, air way would be better but you need collect them from Airport. For urgent orders, we suggest express, goods send to your hands directly. And we can get you good price with DHL, UPS, Fedex or TNT.
