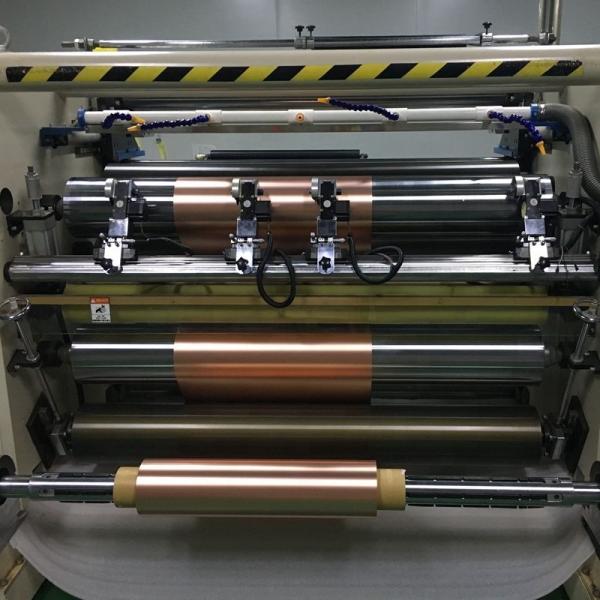

C11000 Insulation Transformer PCB Copper Foil
C11000 Insulation Transformer PCB Copper Foil
C11000 Insulation Transformer PCB Copper Foil
C11000 Insulation Transformer PCB Copper Foil
Specifications
Brand Name :
OEM
Certification :
ISO / SGS / RoHS
Place of Origin :
China
MOQ :
50kg
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
550T Per Month
Delivery Time :
10 - 15 Days
Packaging Details :
Exporting Wooden Case
Product Name :
Double Shiny HP RA Cu Foil For PCB Thickness Range From 0.006mm ~ 0.10mm
Alloy Number :
C11000
Material :
Red Copper
Shape :
Roll
Density :
8.9g/cm3
Width(Max) :
650mm
Thickness :
0.006mm~0.10mm
Min trial order :
100kg for normal thickness
Applications :
Transformer
Grade :
Pure Copper
Description

C11000 Insulation Transformer PCB Copper Foil

Features of Copper Foil
1) Thickness: from 0.006mm to 0.1.mm
2) Maximum Width:650mm
3) Min trial order: 100kg for normal thickness

Applications for Copper Foil

1) Transformer
2) Water Heater exchanger unit
3) Automotive manufacturers

Production capacity for Copper Foil


550 tons output per month
100kg trial order is available

Name

GB

ALLOY NO.

SIZE (mm)

(ISO)

(ASMT)

(JIS)

(BIS)

(DIN)

Copper Foil

T2

Cu-ETP

C11000

C1100

C101

R-Cu57

Thickness: 0.006-0.1 /Max Width: 650

Mechanical Properties

Temper

JIS Temper

Tensile Strength Rm/N/mm 2

Elongation A50/%

Hardness HV

M

O

310~410

≥ 30

40~60

Y2

1/2H

320~450

≥ 20

55~85

Y

H

440~480

-

80~150

T

EH

450~540

-

-

Note: We can provide products with other properties according to customers` requirements.

Sizes and Tolerances (mm)

Thickness

Thickness Tolerances

Width

Width Tolerances

0.006~0.04

± 0.001

1.0~650

± 0.1

> 0.04~0.10

± 0.002

Specifications Available (mm)

Thickness

Width

Temper

0.006~0.04

1.0～650

O,1/2H,H,EH

> 0.04~0.10

1.0～650

O,1/2H,H,EH

C11000 Insulation Transformer PCB Copper Foil

Why Choose us Civen as your supplier?

1. Very competitive price
2. Small order acceptable
3. Good quality
4. On time delivery and perfect service
5. Customers' design are welcome!
