Standard High Pressure 1/2''X1/2'' Copper To Pex Ball Valve
Standard High Pressure 1/2''X1/2'' Copper To Pex Ball Valve
Standard High Pressure 1/2''X1/2'' Copper To Pex Ball Valve
Standard High Pressure 1/2''X1/2'' Copper To Pex Ball Valve
Specifications
Brand Name :
JQ
Model Number :
JQ62901-D
Certification :
cUPC NSF
Place of Origin :
China (Mainland)
MOQ :
Negotiate
Price :
negotiate
Payment Terms :
T/T
Delivery Time :
45 Days
Product name :
Copper To Pex Ball Valve
Port size :
1/2''x1/2'' PEX Ball Valve w/Drain Lead Free
Material :
Brass
Pressure :
High Pressure
Temperature of media :
Normal Temperature
Media :
Water
Standard or nonstandard :
Standard
Color :
brass color
Working pressure :
30bar/435psi
Surface treatment :
Nature brass color
Description

High Pressure 1/2''X1/2'' Copper To Pex Ball Valve

Copper To Pex Ball Valve Description

Standard Port

600PSI Non-Shock WOG

Temperature range:-28℃~148℃

Packing gland on stem is reliable seal mode

Heavy duty rust resistant handles with vinyl grip

Threaded ends comply with ANSI BI.20.1

Materials comply with AB1953 provisions

Copper To Pex Ball Valve Feature

Fine production process

Casting, sand cleaning machining expoxy coating and assemble, pressure testing warehousing all processes ensure good

Two pressure tests

Jinquan valve focuses on the production of high quality valves with a registered capital of 102.3 million

Copper To Pex Ball Valve Parameters

Name High Pressure 1/2''X1/2'' Copper To Pex Ball Valve
Body CW614N, CuZn39Pb3, CW617N, CuZn40Pb2, DZR,as per request
Norminal Diameter DN15-DN50, can be customized
Norminal Pressure 600PSI
Working Medium Water, Non-causticity liquid, Saturated steam
Working Temperature -28℃~148℃
Thread ISO228/1, BSP, NPT, etc

Copper To Pex Ball Valve Advantage

  1. Fast Material Supply. Have own copper bar Factory of Group.
  2. Every valve put through a six-step QC process before delivery.
  3. Material Control, Machining Quality Control, In-coming Material Inspection, Assembly Line Quality Control, Leakage Testing, Final Inspection Before Delivery.
  4. 100% Leakage Test.
  5. Strictly and perfect management in production
  6. Annual R&D projects reach the number of 100.
  7. Have rich experience and strong ability to develop new product

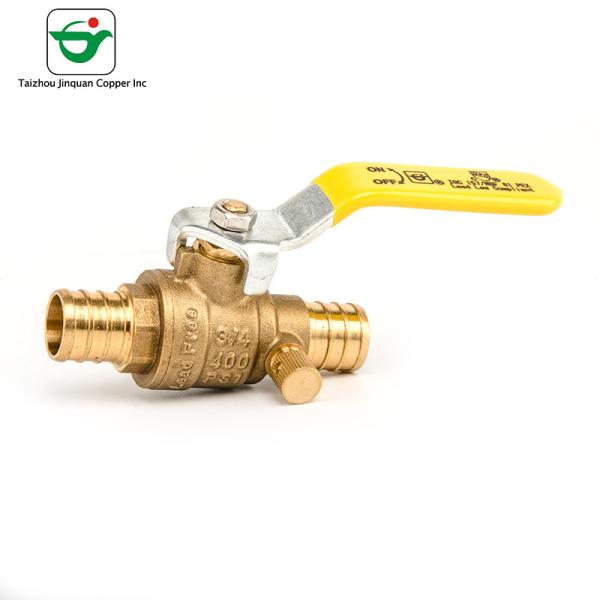

Copper To Pex Ball Valve Pictures

Standard High Pressure 1/2''X1/2'' Copper To Pex Ball Valve

Details

FAQ

Q: Can l get samples from your factory?
A:Samples available,We usually provide existing sample for free.But Express Fee is needed.
lf you have UPS/DHL...account,We can use your account.For existing samples, it takes 1-2days.
lf you need your own designs, it will takes 7-10 days,Cause we need make new MOULD.
Q: What is your MOQ? Can l order small amount ?
A:Usually our MOQ is 1,000pcs.To take a good start, We accept any quantity for your trial order.
Pls feel free to tell us which Item,Size,Quantity, So that we can make Pl for you,
Wish your business boom and place larger orders in the future.
: What is your payment term?
A:Normally,T/T 30% down payment,balance to be paid before shipment. or L/C.
After cooperate 2-3 times,We will know each other,Will cosider your ideal payment term then.
