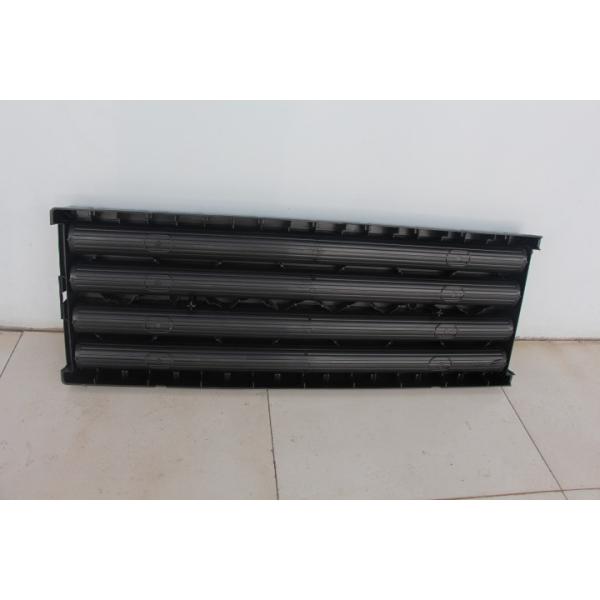

Strong Temperature Resisting Drill Core Trays With Premium PP Material
Strong Temperature Resisting Drill Core Trays With Premium PP Material
Strong Temperature Resisting Drill Core Trays With Premium PP Material
Strong Temperature Resisting Drill Core Trays With Premium PP Material
Specifications
Brand Name :
DIBIAO
Model Number :
HQ
Place of Origin :
China
MOQ :
1 piece
Price :
negotiate
Payment Terms :
T/T, L/C, west union, moneygram
Supply Ability :
600-800 peices per day
Delivery Time :
1-3days
Packaging Details :
nude or pallet
Certification :
CE
material :
recycled plsatic
produce method :
injection
core size :
65mm
color :
black
usage :
mining explore
feature :
durability
Description

The latest DB series core box developed by our company is specially designed and manufactured for the permanent preservation of core (professional support of core library).

Compared with the products of other manufacturers, DB series core boxes have prominent self-body characteristics:

1. Environmental protection and durability

Casing made from low density polyethylene whole injection, stable chemical performance, high strength, non-toxic, tasteless, high temperature resistance, cold resistance, anti-aging, more suitable for storage and transport of the core in bad environment.

2. Reasonable size

The professional size design makes the core box perfectly match with the tray, making the core easier to scan, test, record and store.

3. Convenient drainage

The bottom of the box is designed with a convex skeleton and a series of drainage outlets, which makes it easy to drain the box, dry the wet core, and more convenient to load and take out the core.

4. Strong bearing capacity

The u-shaped bottom surface folding design of the inner groove, the use of multi-row reinforcement bars and the lateral side gradient thickening support of the box body have greatly increased the capacity of the box body to bear weight, and the box body will not be deformed in long-term use.

5. Storage safety

Nested fixed between the upper and lower body positioning, positioning, and between the tray and a positioning block connection solid, smooth movement, make the stack and save the storage space, suitable for core security for a long time.

6. Convenient records

The core card slot on both sides of the box brings convenience to the storage, inspection and management of the recorded core data.


Parameter:

Model

Core diameter

(mm)

 Single channel width(mm) Channel number Net weight
(kg)		 Dimension
(mm)		 Grade Raw material Standard color Color Optional
BQ 45 48 6 2.06-2.3 1070×385×50 A premium PP Light yellow yes
B Medium PP Light gray yes
C Recycled plastic black No
NQ 49 55 5 2.1-2.4 1070×385×55 A premium PP Light yellow yes
B Medium PP Light gray yes
C Recycled plastic black No
HQ 65 69 4 2.1-2.5 1070×385×70 A premium PP Light yellow yes
B Medium PP Light gray yes
C Recycled plastic black No
PQ 85 92 3 2.6-3.1 1070×385×93 A premium PP Light yellow yes
B Medium PP Light gray yes
C Recycled plastic black No
Lid ----- ----- ------- 1.2 1070*385 A premium ABS Light yellow yes
B Medium ABS Light gray yes
Block --------- -------- -------- ------- BQ/NQ/HQ/PQ A premium ABS Light yellow yes
Tag ----- ----- ------- ------ ----- ---- ------ ------- -----

Packing List:

Model Quantity
Nude / 20’GP Nude / 40’GP Nude / 40’HQ Pallet (1.1*1.1*2m)
BQ 2150 4300 5300 168
NQ 2150 4300 5300 168
HQ 1380 2760 3400 123
PQ 1200 2400 2960 108
Lid 30 pieces into a carton
Block 2000-1000 pieces into a carton
