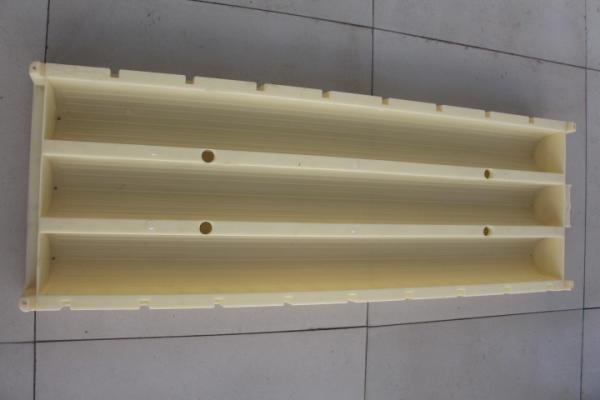

Yellow 85mm Core PQ Core Tray For Diamond Drilling Strong Temperature Resisting
Yellow 85mm Core PQ Core Tray For Diamond Drilling Strong Temperature Resisting
Yellow 85mm Core PQ Core Tray For Diamond Drilling Strong Temperature Resisting
Yellow 85mm Core PQ Core Tray For Diamond Drilling Strong Temperature Resisting
Specifications
Brand Name :
DIBIAO
Model Number :
PQ
Place of Origin :
China
MOQ :
1 piece
Payment Terms :
L/C, T/T, west union, moneygram
Supply Ability :
600-800 peices per day
Packaging Details :
nude or pallet
Certification :
CE
Price :
negotiate
Delivery Time :
1-3 days
material :
PP
usage :
wire-line rock core
produce method :
injection
core size :
85mm
color :
yellow/black
stack :
yes
Description

PQ PP Plastic Drilling Core Tray Core Box 85mm Core

Yellow 85mm Core PQ Core Tray For Diamond Drilling Strong Temperature Resisting“DIBIAO” brand- Q series core tray is designed according to standard wire-line rock core, its model include BQ.NQ.HQ.PQ,and we also have lid, block and tag as accessories to perfect drilling work. All our goods are produced by large injection machine, and A.B.C grade are separated according to different raw material, so client can choose the suitable core tray. Compare to ordinary type, Q core tray performs excellent under quite high/low temperature, and its age is much longer.
Feature:
1. Triangle support on the bottom to Strengthen box’s load capacity
2. Two lines of 7mm width drainage hole on the end to make sure mud flows smoothly
3. Block is inserted inside core tray to tell different rock core apart
4. Paper tag on the top end to remark core information
5. 30 pieces of core trays can be stacked tightly without falling down

Parameter:

Model

Core diameter

(mm)

 Single channel width(mm) Channel number

Net weight
(kg)

Dimension
(mm)

 Grade Raw material Standard color Color Optional
BQ 45 48 6 2.06-2.3 1070×385×50 A premium PP Light yellow yes
B Medium PP Light gray yes
C Recycled plastic black No
NQ 49 55 5 2.1-2.4 1070×385×55 A premium PP Light yellow yes
B Medium PP Light gray yes
C Recycled plastic black No
HQ 65 69 4 2.1-2.5 1070×385×70 A premium PP Light yellow yes
B Medium PP Light gray yes
C Recycled plastic black No
PQ 85 92 3 2.6-3.1 1070×385×93 A premium PP Light yellow yes
B Medium PP Light gray yes
C Recycled plastic black No
Lid ----- ----- ------- 1.2 1070*385 A premium ABS Light yellow yes
B Medium ABS Light gray yes
Block --------- -------- -------- ------- BQ/NQ/HQ/PQ A premium ABS Light yellow yes
Tag ----- ----- ------- ------ ----- ---- ------ ------- -----


Packing List:

Model Quantity
Nude / 20’GP Nude / 40’GP Nude / 40’HQ Pallet (1.1*1.1*2m)
BQ 2150 4300 5300 168
NQ 2150 4300 5300 168
HQ 1380 2760 3400 123
PQ 1200 2400 2960 108
Lid 30 pieces into a carton
Block 2000-1000 pieces into a carton

Yellow 85mm Core PQ Core Tray For Diamond Drilling Strong Temperature Resisting
