High Rise Buildings Engineering Drilling Rig / Truck Mounted Auger Drill
High Rise Buildings Engineering Drilling Rig / Truck Mounted Auger Drill
Specifications
Brand Name :
Taishan
Model Number :
TS-300
Certification :
ISO-9001
Place of Origin :
Jinan
MOQ :
1
Packaging Details :
In bulk
Borehole depth(m) :
300 / 400
Hole diameter(mm) :
Open pore φ650 ,Terminal hole φ168
Turntable through hole(mm) :
500
Rotating speed (positive and negative)(r/min) :
33,60,106 / 40,70,128
Maximum output torque(Nm) :
7810 / 6440
Active drill pipe(mm) :
108×108×8000
Description

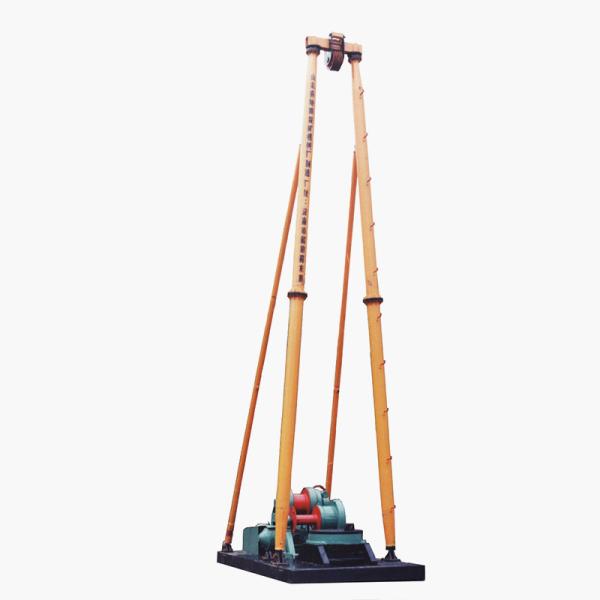

Quaternary medium and fine-grained strata and general soft rock strata used Taishan-300/400 Water Well Drilling Rig

Taishan-300/400 water well drilling rig is a bulk rotary drilling rig. It is mainly used in Quaternary medium and fine-grained strata and general soft rock strata. It is used for exploring and surveying the hydrogeological conditions of strata. It is elaborately developed for drilling water wells, underground tunnel ventilation, bridge and pile foundation construction of high-rise buildings. It has wide applicability.

Drilling rig characteristics:

1. Rig for mechanical transmission, smooth transmission, safe operation, stable and reliable performance.

2, large torque, large turntable, good sealing performance, compact structure, easy maintenance.

2, bring the "man" shaped derrick, the hoist will complete and start the drilling tower.

3. Drilling, impact sampling and downhole pipe protection can be carried out during drilling.

4, equipped with fine adjustment drilling mechanism and mechanical screwing down drilling tools.

5. Bulk structure, easy to load and unload transportation.

TS-300/400 Type Water Well Drilling Rig Technical Parameter
Borehole depth(m) 300 / 400
Hole diameter(mm) Open pore φ650 ,Terminal hole φ168
Turntable through hole(mm) 500
Rotating speed (positive and negative)(r/min) 33,60,106 / 40,70,128
Maximum output torque(Nm) 7810 / 6440
Active drill pipe(mm) 108×108×8000
Hole drill rod(mm) φ89×6000
Hoisting force of main hoist(kN) 30
Single rope hoisting speed of main hoist(m/s) 0.65,1.16,2.08
Diameter of main hoist rope(mm) 17.5
Rope capacity of main hoist(m) 120
Lifting force of auxiliary hoist(kN) 30
Single rope hoisting speed of auxiliary hoist(m/s) 0.46,0.80,1.44
Diameter of wire rope of auxiliary windlass(mm) 13
Rope capacity of auxiliary windlass(m) 330 / 400
Input power(kW) 30
Weight(kg) Component bulk
Shape size(mm) 4500×2000×1500
