Specifications
Brand Name :
Aoxing
Model Number :
JZF-200
Certification :
ISO9001
Place of Origin :
Hebei,China
MOQ :
1 Set
Supply Ability :
30 Sets/Month
Packaging Details :
in New Strong Plywood Case
Model NO :
JZF-200
Motor :
Diesel Engine
Drill Hole Diameter :
130-219mm
Drill Hole Depth :
200m
Bit Type :
DTH Bit
Drilling Way :
DTH Hammer
Type :
Tractor Type
Usage :
Water Well / Rock Borehole
Control System :
Hydraulic Control System
Structure :
Compact Type
Stability :
Good
Description

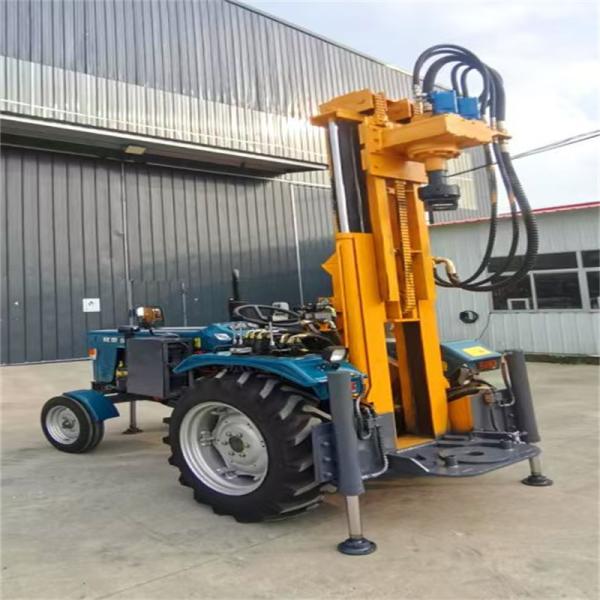

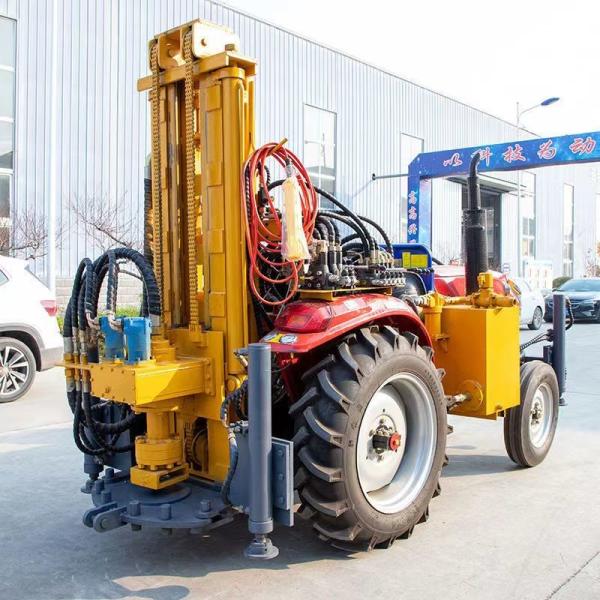

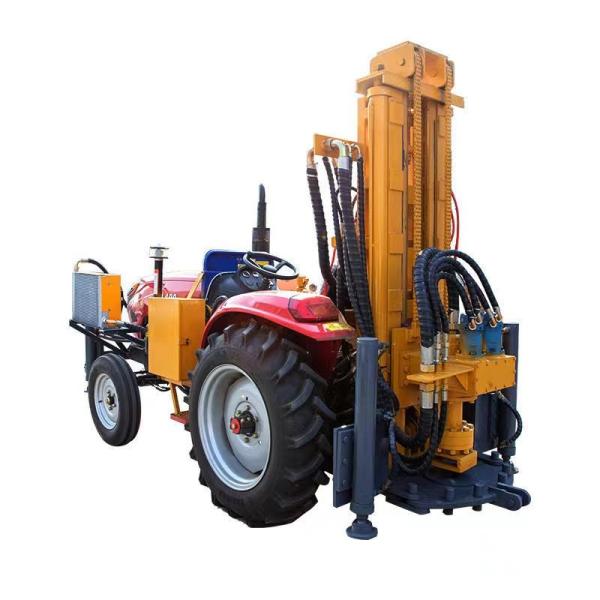

JZF-200 Tractor Mounted Pneumatic DTH Hammer Rock Borehole Water Well Drilling Machine

JZF-200 series drilling rig is a lightweight,high efficient, lower cost and multi-function drilling hole equipment, rig mounted on a tractor, convenient and quick for movement. It is mainly suitable for drilling wells, geothermal wells and holes for other purposes, especially for mountain and rock formation Intake Project. Efficiency than conventional rotary drilling rig several ten times for users to create very substantial economic benefits, in particular, to solve the problem of hard rock layer construction of rotary drilling rig, able to work effectively in a variety of geological formations.

1. Mounted on strong power tractor, good cross-country ability and flexible;
2. Diesel engine supply power for both tractor and drilling rig, realizing independent works;
3. Power head adopts double hydraulic motor to provide power, large torque, durability, maintenance cost is lower;
4. The main accessories of the drilling rig, such as tractor, hydraulic oil pump, main valve, hydraulic motor and key hydraulic accessories, are all well-known domestic brands;

The technological data of DWT-200 tractor type water well drilling rig:

No. Item Parameter
1 Drilling diameter Φ130-219mm
2 Max. drilling depth 200m
3 Unit length of drill pipe 1.5m
4 Drilling pipe diameter 76mm 89mm
5 Work pressure 1.0-3.45 MPa
6 Air consumption 15-27m³/min
7 Axial pressure 2T
8 Rig lifting capacity 12T
9 Machine power 37KW
10 Mobile type Tractor
11 Travelling speed 30 km/h
12 Rotation speed 38-80 rpm
13 Rotary torque 4000-5000 N.m
14 Dimensions (LxWxH) 3400x1500x2200mm
15 Weight (kg) 3000

JZF-200 Pneumatic Water Well Drilling Rig Tractor Mounted with DTH Hammer Rock BoreholeJZF-200 Pneumatic Water Well Drilling Rig Tractor Mounted with DTH Hammer Rock BoreholeJZF-200 Pneumatic Water Well Drilling Rig Tractor Mounted with DTH Hammer Rock Borehole

JZF-200 Pneumatic Water Well Drilling Rig Tractor Mounted with DTH Hammer Rock BoreholeJZF-200 Pneumatic Water Well Drilling Rig Tractor Mounted with DTH Hammer Rock Borehole
