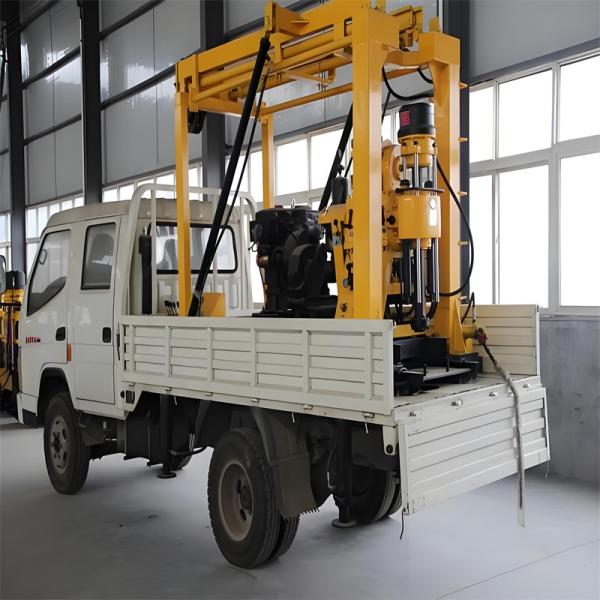

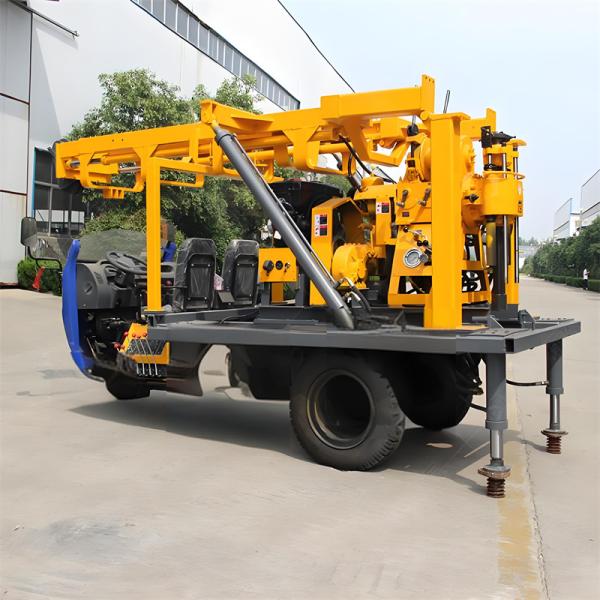

Vehicle Chassis Hydraulic Drilling Rig Self Propelled for 200M Water Well Drilling
Vehicle Chassis Hydraulic Drilling Rig Self Propelled for 200M Water Well Drilling
Vehicle Chassis Hydraulic Drilling Rig Self Propelled for 200M Water Well Drilling
Vehicle Chassis Hydraulic Drilling Rig Self Propelled for 200M Water Well Drilling
Vehicle Chassis Hydraulic Drilling Rig Self Propelled for 200M Water Well Drilling
Vehicle Chassis Hydraulic Drilling Rig Self Propelled for 200M Water Well Drilling
Vehicle Chassis Hydraulic Drilling Rig Self Propelled for 200M Water Well Drilling
Vehicle Chassis Hydraulic Drilling Rig Self Propelled for 200M Water Well Drilling
Vehicle Chassis Hydraulic Drilling Rig Self Propelled for 200M Water Well Drilling
Vehicle Chassis Hydraulic Drilling Rig Self Propelled for 200M Water Well Drilling
Specifications
Brand Name :
Aoxing
Model Number :
XYC-200
Certification :
ISO9001
Place of Origin :
Hebei,China
MOQ :
1 Set
Supply Ability :
30 Sets/Month
Packaging Details :
in New Strong Plywood Case
Model NO :
XYC-200Truck Mounted Water Well Drilling Rig
Condition :
New
Motor :
Diesel Engine
Drill Hole Diameter :
76-500mm
Drill Hole Depth :
200m
Bit Type :
Diamond Bit
Drilling Way :
Rotary
Type :
Truck Mounted
Drill Tower :
Automatic Hydraulic Lifting Drill Tower
Truck :
Light Truck
Usage :
Geotechnical Investigation/Water Well
Brand of Diesel Engine :
Changchai, Jianghuai, Shifeng
Description

200 Meter Vehicle Mounted Hydraulic Drilling Rig Self-propelled Water Well Drilling Rig Vehicle Chassis Water Well Drilling Rig

XYC-200 Truck Mounted Mining Drilling Rig:

It is widely used in the geological general investigation and exploration, road, railway, port, bridge, water conservancy, tunnel and tall building basic exploration, kinds of hole in concrete structure, river, levees, subgrade grouting hole drilling and direct grouting, civil wells and earth central air conditioner, and etc.

1. Compact structure with small truck, very easy to move and transport.

2. Multi functional drilling rig, can be used for water well drill, coring drill, rock sampling, geological investigation & exploration, geothermal well drill, etc.
3. Strong drilling ability, which can be equipped with diamond core bits & related core barrels to drill through any materials, including hard rock, rock, cobble, gravel, clay, soil, etc
4. Hydraulic system, convenient to operate.
5. Electric starter diesel engine power, diesel engine for power, can be used in any area, especially where is not available for electricity.
6. portable and easy operate.
7. hydraulic drill tower can be lifted automatically, which is safe and convenient in operation.
8. The mud pump be mounted on the truck, which is easy for transportation and convenient for operation.

The technological data of XYC-200 truck mounted hydraulic core drilling rig:

Technical parameter
Drilling depth 200m
Drilling hole caliber 300-75mm
Drill rod caliber 42mm-50mm-60mm
Drilling angle 90°~75°
Drill weight ( include power, tower etc ) 2150kg
Dimension (LxWxH) 2750x950x1600mm
Spindle
spindle speed 64-830r/min
Spindle stroke 450mm
Hoist
Max. single line hoisting capacity 2400kg
Single line lifting speed 17,35,75,151r/min
Tightrope caliber 13mm
Tightrope cubic measure 35m
Hug floodgate caliber 254mm
Hug floodgate belt width 70mm
Distance between drill and hole 400mm
Mud pump
Type BW-160 Horizontal single urn twin-action
Displacement 160L/min
Max. Pressure 1.5 Mpa
Working pressure 0.7 Mpa
Diameter of suction pipe 50mm
Diameter of discharge pipe 40mm
Rig Power
Diesel engine model ZS1115
Engine power 22HP
Rotate speed 2200 r/min
Hydraulic cylinder rising mast
