Specifications
Brand Name :
Aoxing
Model Number :
JDL-200
Certification :
ISO9001
Place of Origin :
Hebei,China
MOQ :
1 Set
Supply Ability :
30 Sets/Month
Packaging Details :
in New Strong Plywood Case
Model NO :
JDL200
Motor :
DC Motor
Drill Hole Diameter :
140-254mm
Drill Hole Depth :
200m
Bit Type :
Diamond Bit
Drilling Way :
Rotary
Type :
Crawler
The Weight :
5t
Drill Pipe Diameter :
76/89mm
Drill Pipe Length :
1.5m/2.0m/3.0m
Engine Power :
65kw
Working Pressure :
1.7-2.5MPa
Swing Torque :
3200-4600n.M
Air Consumption :
17-31m³/Min
Description

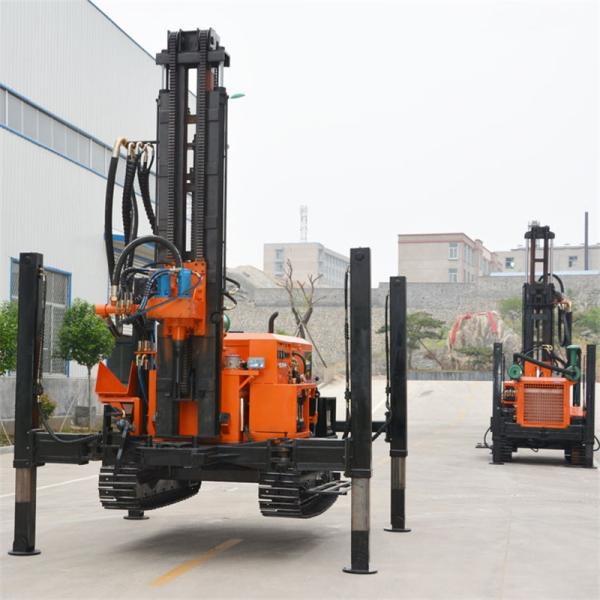

200m Well Drilling Machines Crawler Water Well Drilling Rig for Sale

Product Description:

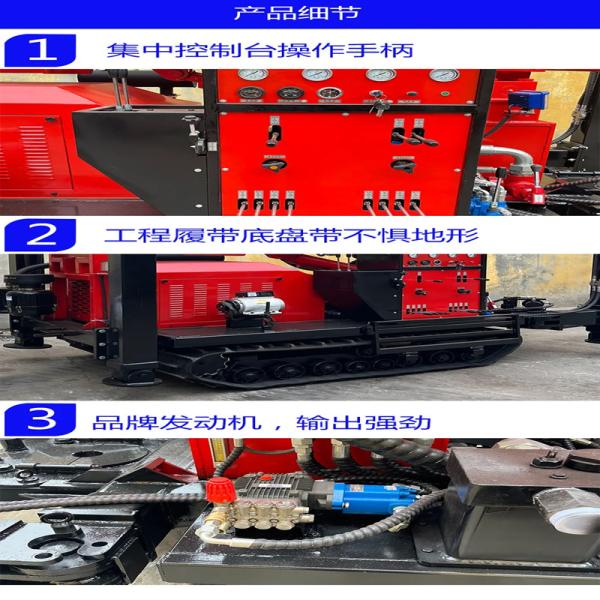

1. Equipped with 55KW Yuchai brand turbocharged engine with strong power;
2. Compound boom, double cylinder lifting;
3. Each drilling rig is equipped with a baffle on the main arm to protect the oil cylinder;
4. Drilling rig chassis: professional excavator chassis, strong and durable, heavy-duty, wide chain plate, the drilling rig uses rubber tracks, high flexibility, less damage to hard roads.
5. Parallel transmission design, independent oil pump, sufficient power, reasonable distribution, unique hydraulic system design, simple maintenance and low cost.
6. The operating system is simple and easy to operate
7. Easy to load and unload on the truck
8. Dual systems can be added: 1. Air power system with air compressor 2. Mud pump system with mud pump

Product Parameters:

JDL 200 Water well drilling rig
The weight (T)
5
The hole diameter (mm)
140-254
Drilling depth (m)
200m
One-time advance length (m)
3.3
Walking speed (km/h)
2.5
Climbing angles (Max.)
30
Equipped capacitor (KW)
65KW
Using air pressure (MPA)
1.7-2.5
Air consumption (m3/min)
17-31
Drill pipe diameter (mm)
76/89
Drill pipe length (m)
1.5m/2.0m/3.0,m
Rig lifting force (T)
13
Swing speed (rpm)
45-70
Swing torque (N.m)
3400-4700
Dimension (mm)
3950*1750*2250
