Specifications
Brand Name :
Aoxing
Model Number :
QYD-800
Certification :
ISO9001
Place of Origin :
Hebei,China
MOQ :
1 Set
Supply Ability :
30 Sets/Month
Packaging Details :
in New Strong Plywood Case
Model NO :
QYD-1000
Condition :
New
Motor :
Diesel Engine
Drill Hole Diameter :
Bq, Nq, Hq, Pq
Drill Hole Depth :
300-1400M
Transport Way :
Crawler
Bit Type :
Diamond Bit
Drilling Way :
Rotary
Drilling Capacity :
Bq, Nq, Hq, Pq
After-sales Service :
Provide Train Video or Remote
Warranty :
Main Parts Within Six Months
Description

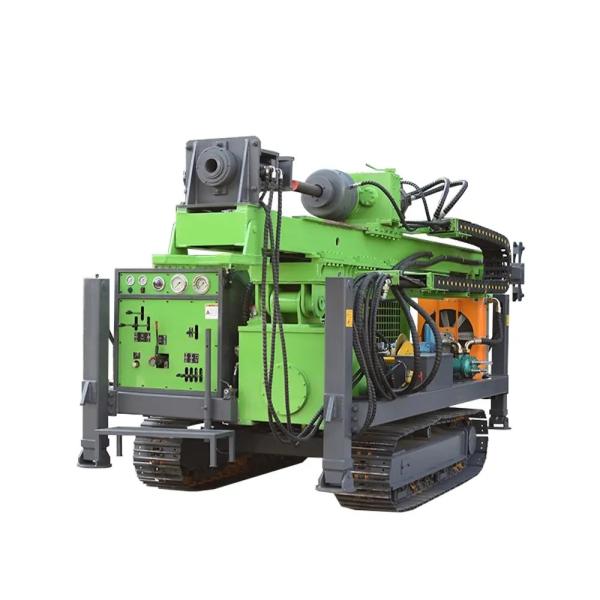

600m Full Hydraulic Surface Coring Mining Core Drilling Machine Drilling Machine

Crawler Mounted Full Hydraulic Core Drill Rigs Exploration
Hydraulic Crawler drilling rig machine is mainly used for geological general investigation and exploration,kinds of hole in concrete structure,road and tall building foundation exploration,river levees,sub grade grouting hole drilling and direct grouting, civil wells and earth temperature central air conditioner,etc. Crawler drilling rig console and platform combination, easy to operate,with platform wide enough to enable the operator and the assistant to leave the mud appropriate height operations, folding walking platform, the control system to focus on the operation platform.
Core Drilling Rig Machine for Sale is suitable for drilling works such as core drilling, general exploration, geophysical exploration, road and building exploration, blasting hole drilling and so on.
1, With automatic oil supply mechanism, improving drilling efficiency, reducing labor intensity.
2, The use of ball clamping mechanism instead of chuck, can achieve non-stop inverted bar, be easy to operate, safe and reliable.
3, With a hole-bottom pressure gauge, easy to control the situation in hole.
4, Compact structure,centralized handle, small footprint, light weight, strong decomposition, easy to move. Suitable for plain and mountain areas.

Parameters of QYD-600 fully hydraulic core exploration drilling rig

Drilling rig model QYD-600
Drilling capacity BTW (m) 650
NTW (m) 600
HTW (m) 300
PQ (m) /
Hydraulic system Rated pressure (MPA) 32+16
Cooling mode Primary air cooling
Primary water cooling
Engine Engine type Yuchai four cylinders
Rated power (Kw) 92
Power Head Maximum torque (N.m) 1400
Maximum rotating speed (rpm) 1400
Feeding Stroke (m) 2.0
Lifting force (kN) 240
Propulsion force (kN) 120
Wire-line coring winch Rope capacity (m) 800
Lifting force (kN) 15
Lifting speed (m/min) 110
Touchdown integrated drill tower Full height (m) 6.1
Drilling angle (°) 45-90
Slip stroke (mm) 800
Crawler chassis Walking mode Manual + Remote control
Transport size L*W*H (m) 4.5*1.9*2.3
Whole machine weight T 4.5

Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.

Full Hydraulic Surface Coring Mining Core Drilling Machine 600m

Full Hydraulic Surface Coring Mining Core Drilling Machine 600mFull Hydraulic Surface Coring Mining Core Drilling Machine 600m

Full Hydraulic Surface Coring Mining Core Drilling Machine 600m

Hengshui Aoxing Geological Equipment Co., Ltd has over 10 years of market experience and is a manufacturer and supplier of grouting materials and drilling materials in the fields of water conservancy, geology, mining, tunnels, subways, construction, geological exploration, mining exploration, geotechnical engineering, soil investigation, etc.

The main products include: inflatable or water filled packers, manual packers, high-pressure grouting pipes, pneumatic hoses, FULO grouting pipes, sleeve valve grouting pipes, grouting data acquisition instruments, grouting pumps, screw grouting pumps, cement mixers, high-speed grouting machines, mud stations, sprayers, Lurong test packers and Lurong test equipment, diamond drill bits, hole extenders, geological drill rods and casings, exploration drilling rigs, water well drilling rigs, engineering drilling rigs, hydraulic drilling rigs, air compressors, core barrels, salvage barrels, SPT tools, soil sampling tools, drilling tools and accessories, grouting pump accessories and drilling rig accessories, etc.

Our team is dedicated to dam curtain consolidation grouting, foundation engineering grouting, mineral exploration, soil investigation, and geological engineering. Provide solutions for engineering drilling.

We can provide accurate, valuable, and targeted solutions and services to our customers based on their specific requirements and needs.
