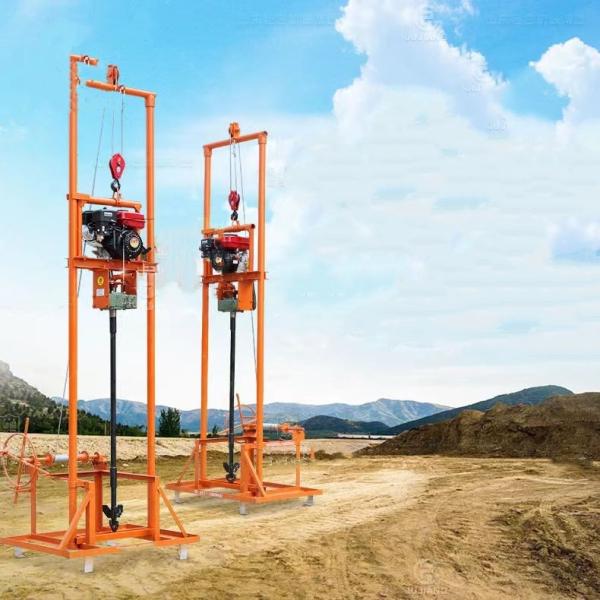

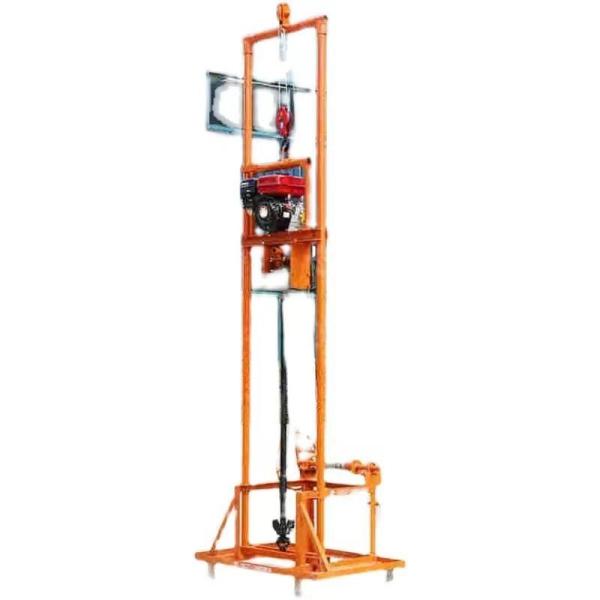

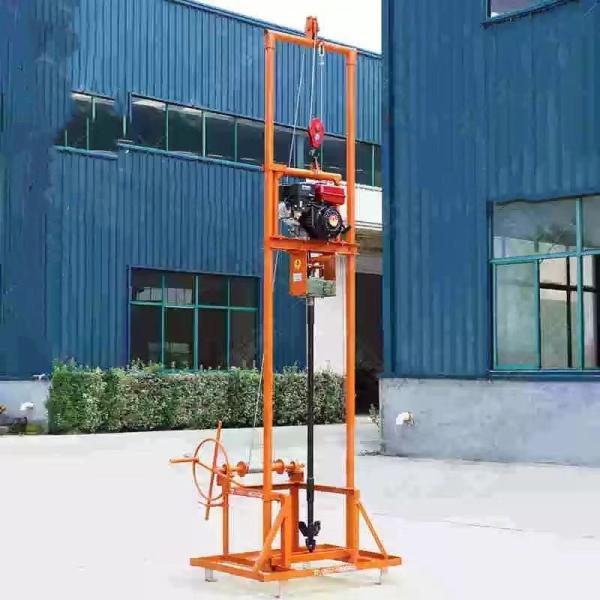

60m 80m Small Water Well Drilling Rig Portable Drilling Rig
60m 80m Small Water Well Drilling Rig Portable Drilling Rig
60m 80m Small Water Well Drilling Rig Portable Drilling Rig
60m 80m Small Water Well Drilling Rig Portable Drilling Rig
60m 80m Small Water Well Drilling Rig Portable Drilling Rig
60m 80m Small Water Well Drilling Rig Portable Drilling Rig
60m 80m Small Water Well Drilling Rig Portable Drilling Rig
60m 80m Small Water Well Drilling Rig Portable Drilling Rig
Specifications
Brand Name :
Aoxing
Model Number :
QYJ-100
Certification :
ISO9001
Place of Origin :
Hebei,China
MOQ :
1 Set
Supply Ability :
50 Sets/Month
Packaging Details :
in Plywood Case
Description

QYJ-100 portable borehole water well drilling machine is mainly used for geothermal drilling, farm irrigation , house yard,
gardens and water well drilling, drilling diameter is 70-300mm, and drilling depth is 60-80m. It also can be used in small
building piling, like farmhouse or factory and so on, the drilling diameter can reach 500mm and depth can be more than 10m.

Features:
1. Light weight. The main engine is only weighted 0.135tons ;
2. Unique design and simple drilling structure;
3. Easy to transport and can learn how to handle the machine in short time;
4. Can drill through hard stratum, unless thick rock layer ;
5. Can drill deep. Equipped with raser, reduce the labor intensity ;
6. High efficiency, the drilling speed can reach 20meters depth per hour, in plain area ;
7. Assure easily operation and long life span to save more labors and money for you;
8. The packing of the machine is wood box, the CBM is about 2.0m³, the total weight (complete set) is about
PRODUCT SPECIFICATIONS
Technical Parameters of Water Well Drilling Rig
1
Max. Drilling Diameter
70-300mm
2
Max. Drilling Depth
60-80m
3
Total Power
8.8 kw
4
Engine Power
1.2kw
5
Lifting Power
1.0kw
6
Pump
2.2kw,220V(flow head 46m)
7
Capacity of hoist
1.0t
8
Height of tower
3m
9
Total Weight
365KGS(45m drill rods)
10
Drilling Rod Length
1.2/1.5m piece
11
Diameter of Drilling Rod
33mm/42mm
