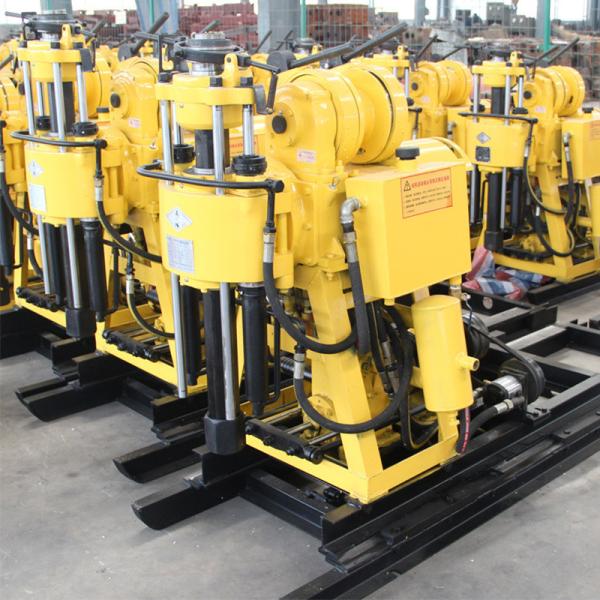

Geological Exploration Core Drill Equipment For Railways, Water Conservancy, Bridges
Geological Exploration Core Drill Equipment For Railways, Water Conservancy, Bridges
Geological Exploration Core Drill Equipment For Railways, Water Conservancy, Bridges
Geological Exploration Core Drill Equipment For Railways, Water Conservancy, Bridges
Geological Exploration Core Drill Equipment For Railways, Water Conservancy, Bridges
Geological Exploration Core Drill Equipment For Railways, Water Conservancy, Bridges
Geological Exploration Core Drill Equipment For Railways, Water Conservancy, Bridges
Geological Exploration Core Drill Equipment For Railways, Water Conservancy, Bridges
Geological Exploration Core Drill Equipment For Railways, Water Conservancy, Bridges
Geological Exploration Core Drill Equipment For Railways, Water Conservancy, Bridges
Geological Exploration Core Drill Equipment For Railways, Water Conservancy, Bridges
Geological Exploration Core Drill Equipment For Railways, Water Conservancy, Bridges
Specifications
Brand Name :
Aoxing
Model Number :
XY-150 type
Certification :
ISO9001
Place of Origin :
Hebei,China
MOQ :
1 Set
Supply Ability :
50 Sets/Month
Packaging Details :
in New Strong Plywood Case
Model NO :
XY-150Type
Motor :
Diesel Engine
Drill Hole Diameter :
76-300mm
Drill Hole Depth :
100-300M
Bit Type :
Diamond Bit
Drilling Way :
Rotary
Drill Rod :
Geological Exploration Mining Portable Engineering
Core Components :
Motor, Pump, Engine
Tower Height :
6m
Description

Core Drill Equipment for Geological Exploration of Railways, Water Conservancy, Bridges, etc

Hydraulic drilling rig, core drilling rig, soil investigation drilling rig, survey drilling rig, mining drilling rig, water well drilling rig, core drilling equipment

1. This drilling rig is a high-speed drilling rig suitable for general survey exploration, geophysical exploration, road and construction exploration and blast hole drilling projects.
2. Drill bits such as alloys, diamonds and composite chips can be selected for drilling according to the different bottom layers.
3. It can drill sandy clay and rock formations of grade 2-9.




Tech paraneter
Model
XYD-130
XYD-180
XYD-200
Drilling depth(m)
130
180
65
Open hole dia (mm)
220
220
325
End hole dia(mm)
75
75
75
Drill rod dia(mm)
42-60
42-60
42-60
Drill angle(°)
90-75
90-75
90-75
Matching power(kw)
13.2
13.2
15
Weight without power(kg)
3350
3400
3600
Dimension(m)
3.8*1.95*2.7
3.8*1.95*2.7
3.8*1.95*2.7

Spindle
Speed(r/min)
142/285/570
130/300/480/730/830/1045
64/128/287/557
Stroke(mm)
450
450
450


Crawler chassis
Crawler size(m)
350*90*48
350*90*48
350*90*48
Clinbing angle(°)
20°
20°
20°
Walking speed(kn/h)
10km/h
10km/h
10km/h
hydraulic landing leg valid height(mm)
1300
1300
1300
Drill mast
Rated load(ton)
18
18
18
Height(m)
6.5
6.5
6.5

Winch
Dispalcement(L/min)
160
160
160
Max. pressure(MPa)
1.3
1.3
1.3
Times/min
165
165
165
Inlet hose dia(mm)
51
51
51
0ut let hose dia(mm)
32
32
32

Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.

Geological Exploration Core Drill Equipment For Railways, Water Conservancy, BridgesGeological Exploration Core Drill Equipment For Railways, Water Conservancy, BridgesGeological Exploration Core Drill Equipment For Railways, Water Conservancy, BridgesGeological Exploration Core Drill Equipment For Railways, Water Conservancy, Bridges

Hengshui Aoxing Geological Equipment Co., Ltd has over 10 years of market experience and is a manufacturer and supplier of grouting materials and drilling materials in the fields of water conservancy, geology, mining, tunnels, subways, construction, geological exploration, mining exploration, geotechnical engineering, soil investigation, etc.

The main products include: inflatable or water filled packers, manual packers, high-pressure grouting pipes, pneumatic hoses, FULO grouting pipes, sleeve valve grouting pipes, grouting data acquisition instruments, grouting pumps, screw grouting pumps, cement mixers, high-speed grouting machines, mud stations, sprayers, Lurong test packers and Lurong test equipment, diamond drill bits, hole extenders, geological drill rods and casings, exploration drilling rigs, water well drilling rigs, engineering drilling rigs, hydraulic drilling rigs, air compressors, core barrels, salvage barrels, SPT tools, soil sampling tools, drilling tools and accessories, grouting pump accessories and drilling rig accessories, etc.

Our team is dedicated to dam curtain consolidation grouting, foundation engineering grouting, mineral exploration, soil investigation, and geological engineering. Provide solutions for engineering drilling.

We can provide accurate, valuable, and targeted solutions and services to our customers based on their specific requirements and needs.
