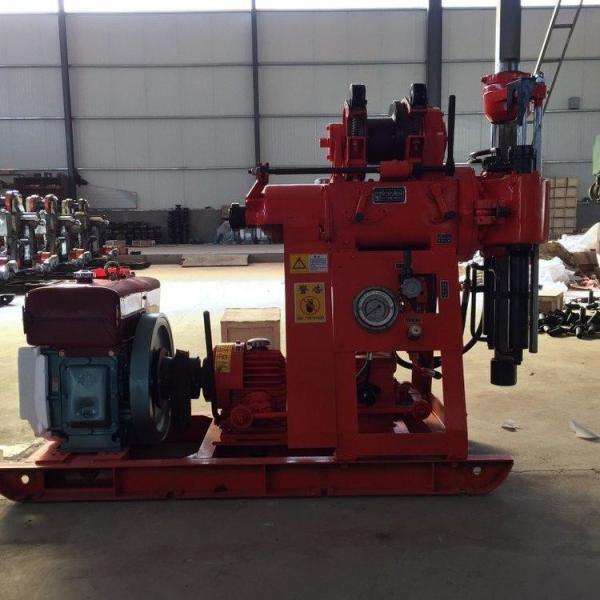

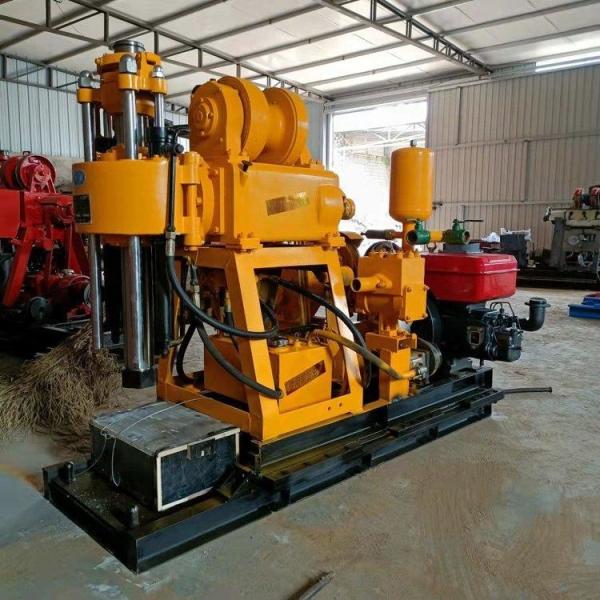

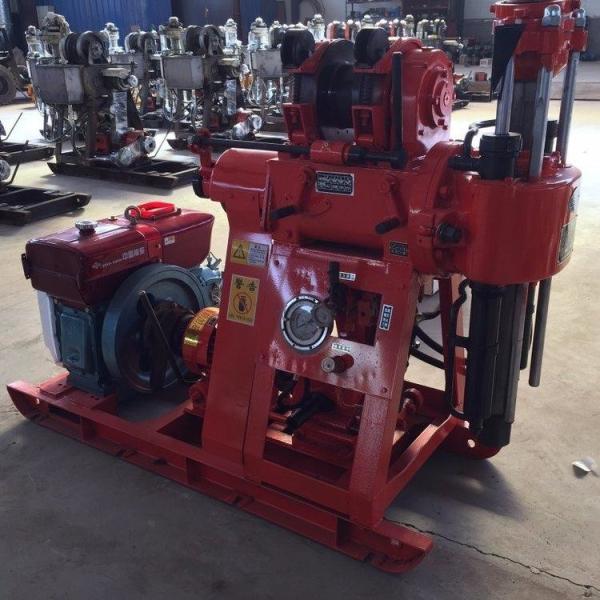

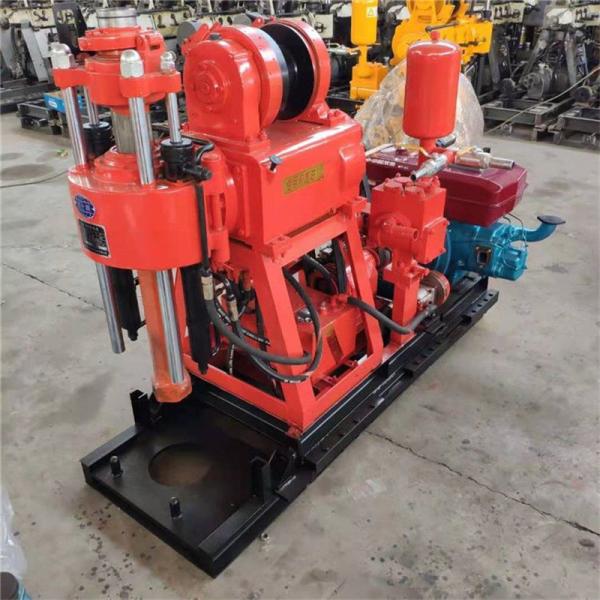

200m Geological Geotechnical Prospecting Hydraulic Core Drilling Rig/Diesel Engine Geological Investigation Diamond Core Drilling Rig
200m Geological Geotechnical Prospecting Hydraulic Core Drilling Rig/Diesel Engine Geological Investigation Diamond Core Drilling Rig
200m Geological Geotechnical Prospecting Hydraulic Core Drilling Rig/Diesel Engine Geological Investigation Diamond Core Drilling Rig
200m Geological Geotechnical Prospecting Hydraulic Core Drilling Rig/Diesel Engine Geological Investigation Diamond Core Drilling Rig
200m Geological Geotechnical Prospecting Hydraulic Core Drilling Rig/Diesel Engine Geological Investigation Diamond Core Drilling Rig
200m Geological Geotechnical Prospecting Hydraulic Core Drilling Rig/Diesel Engine Geological Investigation Diamond Core Drilling Rig
200m Geological Geotechnical Prospecting Hydraulic Core Drilling Rig/Diesel Engine Geological Investigation Diamond Core Drilling Rig
200m Geological Geotechnical Prospecting Hydraulic Core Drilling Rig/Diesel Engine Geological Investigation Diamond Core Drilling Rig
200m Geological Geotechnical Prospecting Hydraulic Core Drilling Rig/Diesel Engine Geological Investigation Diamond Core Drilling Rig
200m Geological Geotechnical Prospecting Hydraulic Core Drilling Rig/Diesel Engine Geological Investigation Diamond Core Drilling Rig
Specifications
Brand Name :
Aoxing
Model Number :
XY-200 type
Certification :
ISO9001
Place of Origin :
Hebei,China
MOQ :
1 Set
Supply Ability :
50 Sets/Month
Packaging Details :
in New Strong Plywood Case
Model NO. :
XY-200Type
Condition :
New
Motor :
Diesel Engine
Drill Hole Diameter :
76-300mm
Drill Hole Depth :
200m
Bit Type :
Diamond Bit
Drilling Way :
Rotary
Chuck :
Hydraulic Hand Chuck
Usage :
Water Well, Geotechnical
Type :
Core Drilling Rig
After-Sales Service Provided :
Video Technical Support
Origin :
China
Description

200m Geological Geotechnical Prospecting Hydraulic Core Drilling Rig/Diesel Engine Geological Investigation Diamond Core Drilling Rig

1. Application scope of HZ-200YS hydraulic core drilling rig

General geological survey exploration, road and high-rise building foundation exploration, as well as various concrete structure inspection holes, river embankments, subgrade grouting hole drilling and direct grouting, civil water wells, etc.

2. Features of HZ-200YS hydraulic core drilling rig

(1) This machine adopts taper clutch, which has large transmission torque and convenient operation;

(2)The drilling rig adopts an automobile gearbox assembly with multiple speed stages and a reasonable speed adjustment range;

(3)The drilling rig has high power and 2 reverse speeds, which is convenient for handling accidents;

(4)The planetary gear of the hoist is increased in modulus and a support frame is installed, which greatly improves the lifting and braking capabilities of the hoist.

(5)The drilling rig is equipped with a mobile device, which can realize the front and back movement of the drilling rig itself, which is convenient for wellhead operation.

(6)Equipped with BW-160 mud pump, which has high pressure and large flow rate, ensuring the drilling depth and diameter.

3. Technical parameters of HZ-200YS hydraulic core drilling rig

Model HZ-200YS
Drilling depth 200m
Hole diameter 0-300mm
Final hole diameter 75mm
Drill rod diameter 50mm
Drilling angle 90°～75°
Rig weight 976kg
V-belt B950*4 B1700*3
Active movement distance 350mm
Power Diesel engine/motor 22HP/16.2KW
Vertical axis
Vertical shaft forward speed (low speed) 76 164 327 489 r/min
Vertical shaft forward speed (high speed) 176 378 753 1125 r/min
Vertical shaft reverse speed 61 142 r/min
Vertical shaft stroke 450mm
Hoist
Single rope lifting capacity 15KN
Single rope lifting speed 0.166 0.311 0.733 1.465 m/s
Wire rope diameter 9.3mm
Wire rope capacity 35m
Mud pump
Model BW160
Flow 160L/min
Pressure 0-1.3Mpa
Hydraulic pump
Specification FC-25 Right SD
Dimensions
Length*width*height 2100mm*1100mm*1450mm

Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
