5 Blades Steel Body PDC Drill Bit For Oil Gas Geological Well Drilling
5 Blades Steel Body PDC Drill Bit For Oil Gas Geological Well Drilling
5 Blades Steel Body PDC Drill Bit For Oil Gas Geological Well Drilling
5 Blades Steel Body PDC Drill Bit For Oil Gas Geological Well Drilling
5 Blades Steel Body PDC Drill Bit For Oil Gas Geological Well Drilling
5 Blades Steel Body PDC Drill Bit For Oil Gas Geological Well Drilling
5 Blades Steel Body PDC Drill Bit For Oil Gas Geological Well Drilling
5 Blades Steel Body PDC Drill Bit For Oil Gas Geological Well Drilling
5 Blades Steel Body PDC Drill Bit For Oil Gas Geological Well Drilling
5 Blades Steel Body PDC Drill Bit For Oil Gas Geological Well Drilling
Specifications
Brand Name :
Aoxing
Model Number :
3 7/8~13 5/8
Certification :
ISO9001
Place of Origin :
Hebei,China
Packaging Details :
in Plywood Case
Manufacturing Process :
Forging
Surface Treatment :
Polishing
Material :
Carbon Steel
Usage :
Well Drilling
Size :
2 3/8"~7 5/8"
Well Drilling :
Energy & Mining, Well Drilling
Description
5 Blades Geological Drilling Steel Body PDC Drill Bit for Oil Gas for Well Drilling
Oil PDC bits Structural drawings
5 Blades Steel Body PDC Drill Bit For Oil Gas Geological Well Drilling
Oil PDC bits technical Data
Regular Models of PDC Bits
Regular Sizes Regular IADC API Reg Pin Make-up Torque(N.m)
3 7/8"(98.4mm) 126/216/637 2 3/8 4100~4700
4 5/8"(117.4mm) 126/216/517/537/637 2 7/8 6100~7500
5 1/4"(133.3mm) 3 1/2 9500~12200
5 5/8"(142.8mm)
5 7/8"(149.2mm)
6"(152.4mm) 126/127/216/517/537/617/637
6 1/4"(158.7mm)
6 1/2"(165mm)
7 1/2"(190mm) 126/216/517/537 4 1/2 16300~21700
7 5/8"(193mm)
7 7/8"(200mm)
8 1/2"(215.9mm) 117/127/217/437/517/537/617/637
9 1/2"(241.3mm) 6 5/8 38000~43400
9 7/8"(250.8mm)
10 5/8(269.8mm)
11 5/8(295.3mm)
12 1/4"(311.1mm)
13 5/8"(346.0mm) 127/217/517/537/617/637
14 3/4"(374.6mm) 7 5/8 46100~54200
17 1/2"(444.5mm) 114/115/125/215/515/535/615/635
26"(660.4mm) 114/115/125/215/515/535/615

Product Features
1. Soft to medium-hard formation application
Medium Parabolic crown profile and heavy cutter density provide high ROP in medium to hard formations with
medium compressive strength and small abrasive layers.

2. Multi-function hydraulics
The deep blade design can get high ROP in medium to hard formations and can effectively cool the bit in hard
and abrasive formations

3. Longer Bit Life
High intensified gage design provides for long runs on steerable system through hard and abrasiive formations
as steering application.

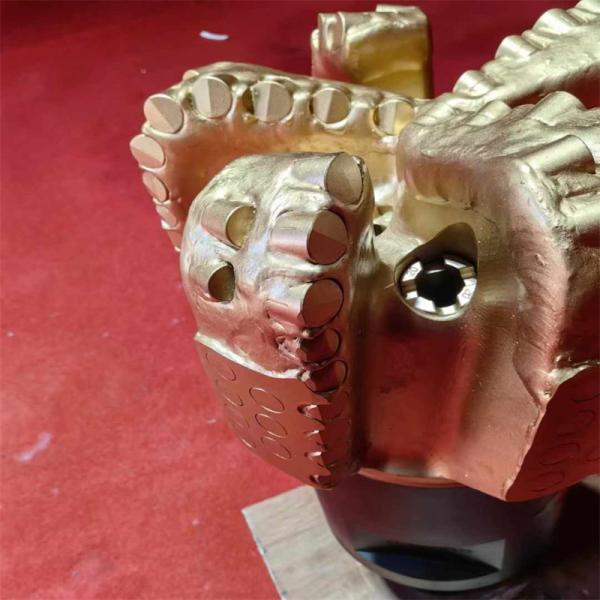

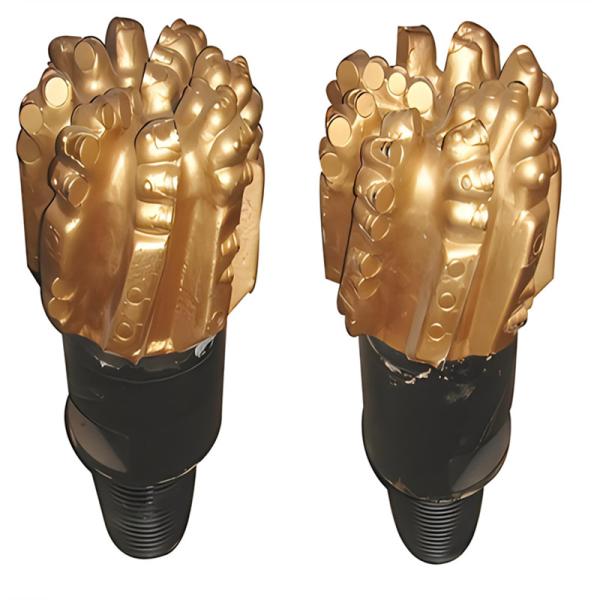

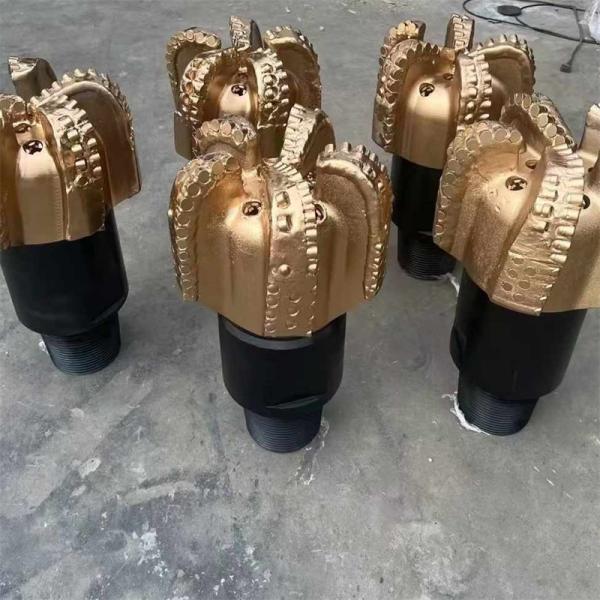

Detailes Show
5 Blades Steel Body PDC Drill Bit For Oil Gas Geological Well Drilling5 Blades Steel Body PDC Drill Bit For Oil Gas Geological Well Drilling

5 Blades Steel Body PDC Drill Bit For Oil Gas Geological Well Drilling5 Blades Steel Body PDC Drill Bit For Oil Gas Geological Well Drilling5 Blades Steel Body PDC Drill Bit For Oil Gas Geological Well Drilling5 Blades Steel Body PDC Drill Bit For Oil Gas Geological Well Drilling
