Specifications
Brand Name :
Aoxing
Model Number :
XY-4
Certification :
ISO9001
Place of Origin :
Hebei,China
MOQ :
1 Set
Supply Ability :
30 Sets/Month
Packaging Details :
in New Strong Plywood Case
Model NO :
XY-4
Motor :
Diesel Engine
Drill Hole Diameter :
76-300mm
Drill Hole Depth :
700-1000m
Bit Type :
Diamond Bit
Drilling Way :
Rotary
Power Type :
Electric Motor / Diesel
Use :
Coring Rig
Core Components :
Pump, Bearing, Engine
Drill Rod Diameter :
42mm
Spindle Stroke :
600mm
Maximum Pull Force of The Spindle :
80kN
Description

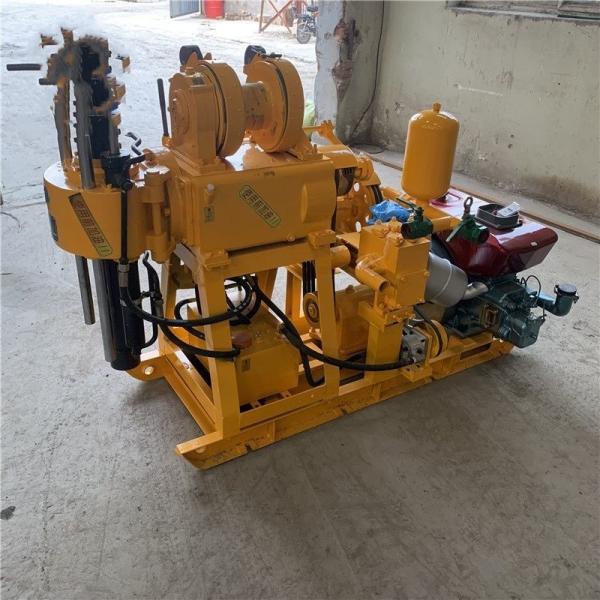

Multi Functional Geological Core Drilling Rig, Suitable for Various Engineering Projects

Exploration drilling rig, geological drilling rig, deep hole drilling rig

1. This drilling rig is a high-speed drilling rig suitable for general survey exploration, geophysical exploration, road and construction exploration and blast hole drilling projects.
2. Drill bits such as alloys, diamonds and composite chips can be selected for drilling according to the different bottom layers.
3. It can drill sandy clay and rock formations of grade 2-9.




Tech paraneter
Model
XYD-130
XYD-180
XYD-200
Drilling depth(m)
130
180
65
Open hole dia (mm)
220
220
325
End hole dia(mm)
75
75
75
Drill rod dia(mm)
42-60
42-60
42-60
Drill angle(°)
90-75
90-75
90-75
Matching power(kw)
13.2
13.2
15
Weight without power(kg)
3350
3400
3600
Dimension(m)
3.8*1.95*2.7
3.8*1.95*2.7
3.8*1.95*2.7

Spindle
Speed(r/min)
142/285/570
130/300/480/730/830/1045
64/128/287/557
Stroke(mm)
450
450
450


Crawler chassis
Crawler size(m)
350*90*48
350*90*48
350*90*48
Clinbing angle(°)
20°
20°
20°
Walking speed(kn/h)
10km/h
10km/h
10km/h
hydraulic landing leg valid height(mm)
1300
1300
1300
Drill mast
Rated load(ton)
18
18
18
Height(m)
6.5
6.5
6.5

Winch
Dispalcement(L/min)
160
160
160
Max. pressure(MPa)
1.3
1.3
1.3
Times/min
165
165
165
Inlet hose dia(mm)
51
51
51
0ut let hose dia(mm)
32
32
32

Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
