PDC 5in 6in 7in 8in 9in10in Drill Bit for Water Well
PDC 5in 6in 7in 8in 9in10in Drill Bit for Water Well
PDC 5in 6in 7in 8in 9in10in Drill Bit for Water Well
PDC 5in 6in 7in 8in 9in10in Drill Bit for Water Well
PDC 5in 6in 7in 8in 9in10in Drill Bit for Water Well
PDC 5in 6in 7in 8in 9in10in Drill Bit for Water Well
PDC 5in 6in 7in 8in 9in10in Drill Bit for Water Well
PDC 5in 6in 7in 8in 9in10in Drill Bit for Water Well
PDC 5in 6in 7in 8in 9in10in Drill Bit for Water Well
PDC 5in 6in 7in 8in 9in10in Drill Bit for Water Well
PDC 5in 6in 7in 8in 9in10in Drill Bit for Water Well
PDC 5in 6in 7in 8in 9in10in Drill Bit for Water Well
Specifications
Brand Name :
Aoxing
Model Number :
55/657594108/113/133/145/153/175/185/193
Certification :
ISO9001
Place of Origin :
Hebei,China
MOQ :
1 Piece
Supply Ability :
500 Piece/Month
Packaging Details :
in Plywood Case
Type :
Center Drill Bit
Usage :
Well Drilling
Machine Type :
Drilling Tool
Processing Type :
Forging
Advantage :
High-Efficiency ,Wear Resistant
Use :
Oil,Gas and Water Well Drilling
Description
Details of Drag Bit
Size

55mm,65mm,75mm,94mm,108mm,113mm,133mm,

145mm,153mm,175mm,185mm,193mm
Bit Type pillar type,concave,three wings,four wings,five wings,six wings
PDC Cutter Size 1303,1308,1304,1603
Body Materials steel,tungsten carbide matrix
Suitable Rock mud stone,limestone,shale,sandstone,granite
Parameter
Drilling Diameter Blade Count Cutter Size Nozzle Number Bit Slot Pin Size
5 5/8'' 3 1308 3 2.7''*1.5'' 2 7/8''
5 5/8'' 5 1308 5 2.7''*1.5'' 2 7/8''
6'' 4 1308 4 4''*1.5'' 3 1/2''
6'' 5 1308 5 4''*1.5'' 3 1/2''
8 1/2'' 4 1308 4 5''*2'' 4 1/ 2''
8 1/2'' 5 1308 5 5''*2'' 4 1/2''
8 1/2'' 6 1308 6 5''*2'' 4 1/2''
9 1/2'' 5 1308 5 5''*2'' 4 1/2''
9 1/2'' 6 1308 6 5''*2'' 4 1/2''
12 1/4'' 5 1308 5 6''*2'' 6 5/8''

PDC 5in 6in 7in 8in 9in10in Drill Bit for Water WellPDC 5in 6in 7in 8in 9in10in Drill Bit for Water WellPDC 5in 6in 7in 8in 9in10in Drill Bit for Water WellPDC 5in 6in 7in 8in 9in10in Drill Bit for Water Well

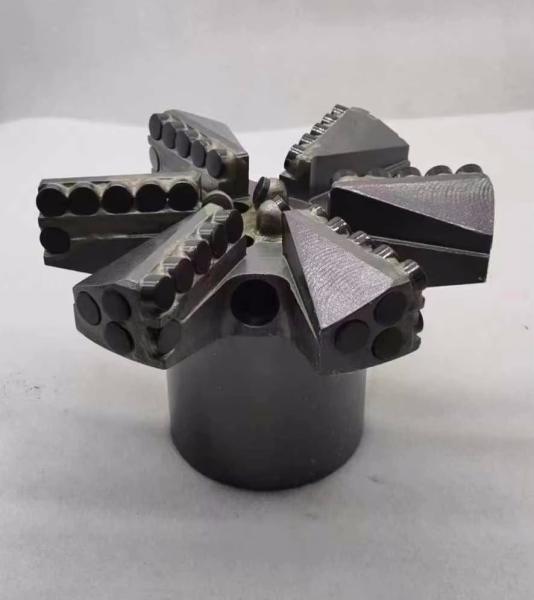

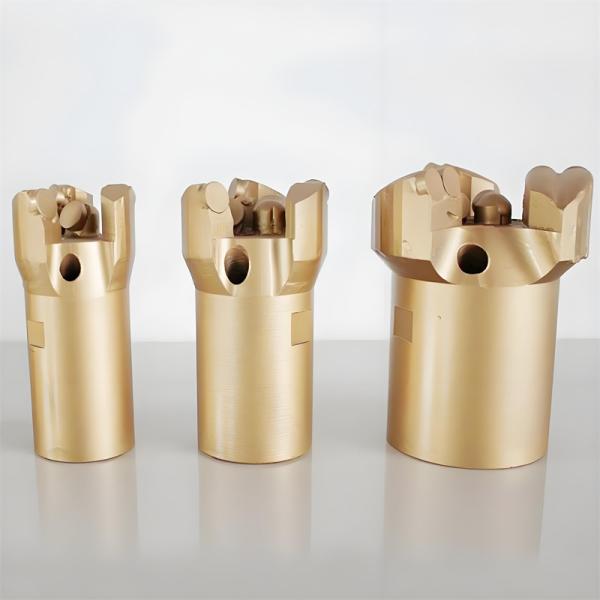

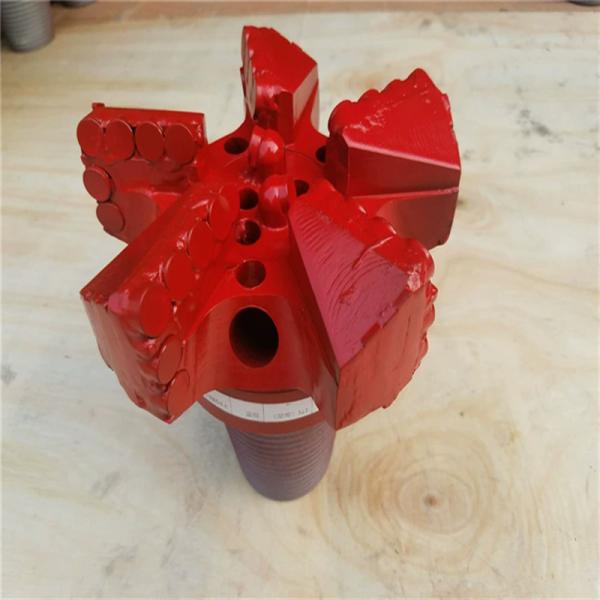

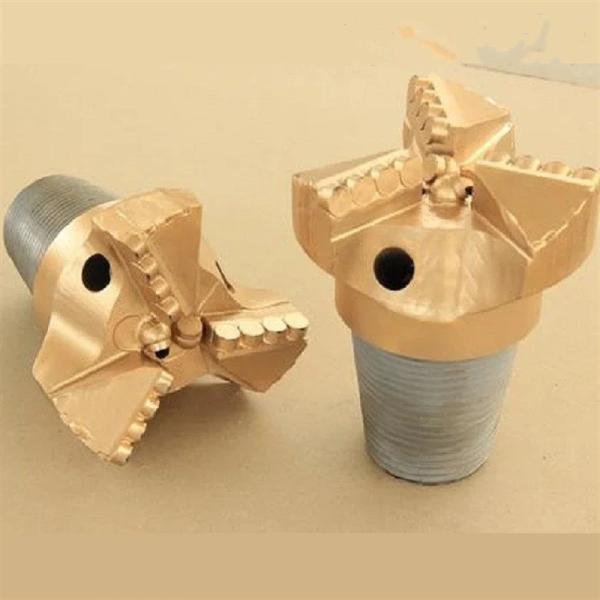

PDC Drill Bit

PDC Drilling bit is made by PDC cutters brazed to Steel Body or casing steel body. The PDC cutter has high hardness, abrasion resistance and toughness, the PDC Drag Drilling bit life is 20-40 times, and the drilling efficiency is 50% higher of tungsten carbide drill bit.
Application

PDC Drag bit is applied to rock formation f below 12, like sandstone, mudstone, etc., it is mainly used for Coal mining ,water well, geothermal well, geological exploration, borehole, gas drainage hole, discharge water hole, blast hole,etc.
Our Advantages
1.High density (low porosity)
2.High uniformity of composition and structure
3.Excellent adhesion between diamond particles
4.High wear resistance
5.High impact resistance
6.High thermal stability
7.Optimized interface between diamond and tungsten carbide layer for excellent bonding
