Specifications
Brand Name :
Aoxing
Model Number :
HW930
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 Set
Packaging Details :
in New Strong Plywood Case
Model NO. :
HW930
Condition :
New
Motor :
AC Motor
Drill Hole Diameter :
100-150mm
Drill Hole Depth :
<100m
Bit Type :
Hammer Bit
Drilling Way :
Impactor
Model :
Hw930
Power (Kw) :
598
Drilling Diameter (mm) :
110-165
Maximum Torque (Nm :
3500
Propulsion (Kn) :
20
Lifting Force (Kn) :
45
Shipping Dimensions (mm) :
7370*2360*2560
Origin :
China
Description

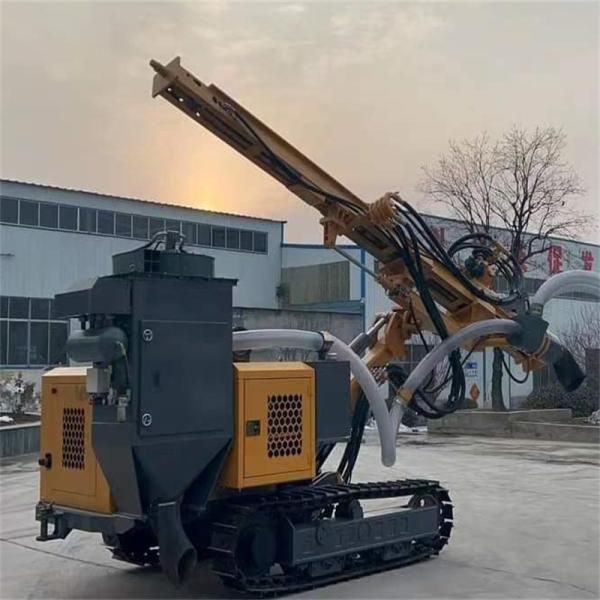

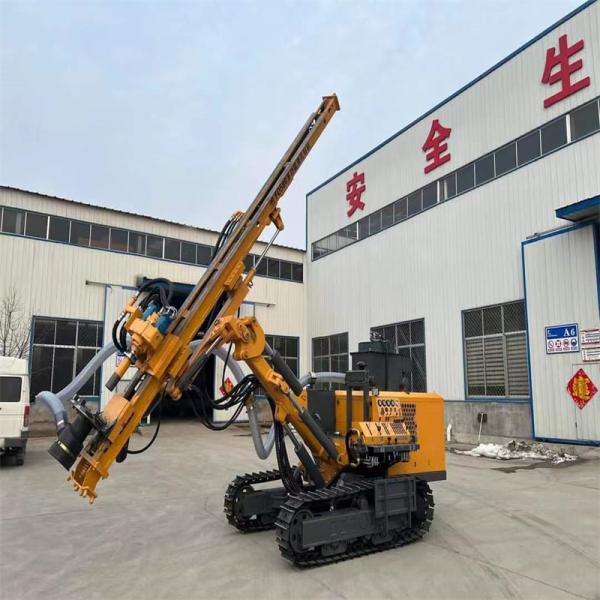

Rock Drilling Pneumatic DTH Drilling Rig

Configurations:

  • 1. HW412A/HW412A-1 drill equipped with double cycloidal hydraulic motor driven rotary head, largetorque, fast rotation speed which can meet the requirements of drilling hole diameter ofφ110 mm withφ90mm drill pipe.

  • 2. Piston tramming motor, special processed casted track shoe for stronger tramming traction force& longer service life, lowering machine maintenance cost.

  • 3. All controls integrated on the control panel for convenient operation by single operator, higher work efficiency& lower drilling cost, safer and more comfortable operation.

  • 4. Optional own developed dust collection system with high efficiency & eco-friendly.

Technical Parameter

Diesel Engine Specifications
Rig Model Power Rated Power
HW412A Xichai
4DW91-50GBG3U

36.8kW

HW412A-1

YC4DK80

58kW Dust collection system as standard equipment

General Specifications
Drill Pipe Sizes 60*2000 mm
Hole range 90-110 mm
Rotation torque (Max.) 1,650 N.m
Rotation Speed 70-150 rpm
Feed Force 15 kN
Pull Up Force 25 kN
Feed Type Chain / cylinder
Tramming Speed (Max.) 2.5 km/h
Gradient 25°
Total Weight 3,350Kg/ 3,760 kg
Transportation Dimensions 4900X2000X2200 mm

Rock Drilling Pneumatic DTH Drilling Rig Dia 100-150mm Drill Hole with AC MotorRock Drilling Pneumatic DTH Drilling Rig Dia 100-150mm Drill Hole with AC Motor
