Specifications
Brand Name :
Aoxing
Model Number :
AW, BW, NW, HW, HWT, PW
Certification :
ISO9001
Place of Origin :
Hebei,China
MOQ :
1 Piece
Packaging Details :
in Plywood Case
Model NO. :
AW, BW, NW, HW, HWT, PW
Type :
Core Drill Bit
Material :
Diamond
Usage :
Geotechnical/Mining Exploration
Matrix Height :
6mm-12mm
Kind :
Diamond Drill
Application :
Mineral Exploration
Rock Type :
Clay,Hard Sandstone,Syenite,Quartzite,etc
Hardness :
F1-F12
Market :
Goloble
Description

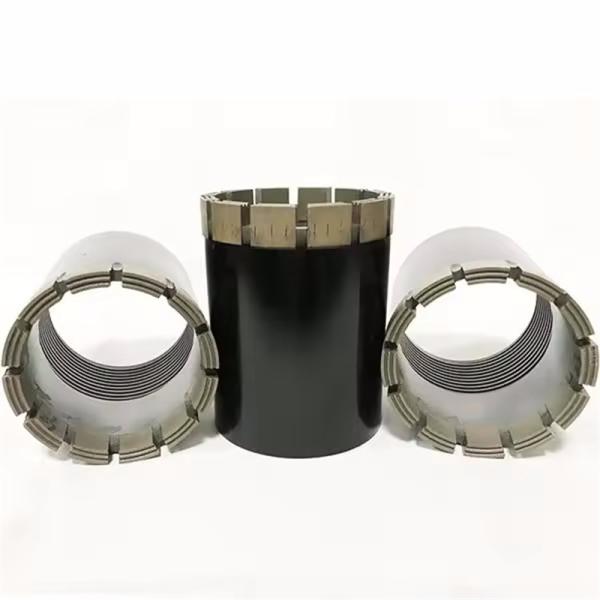

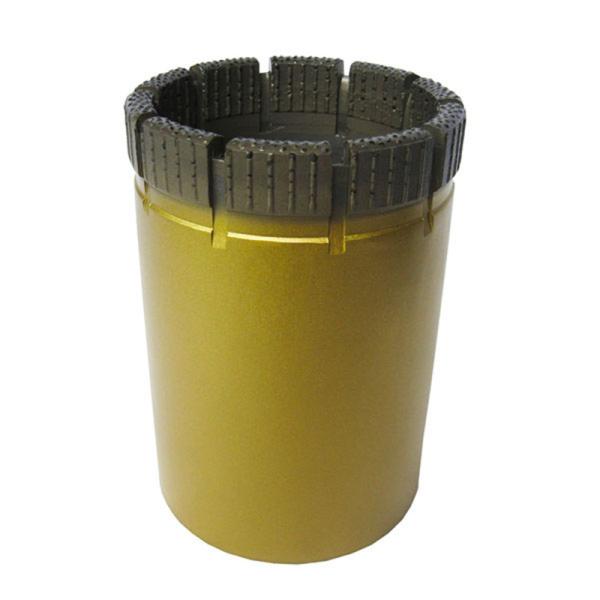

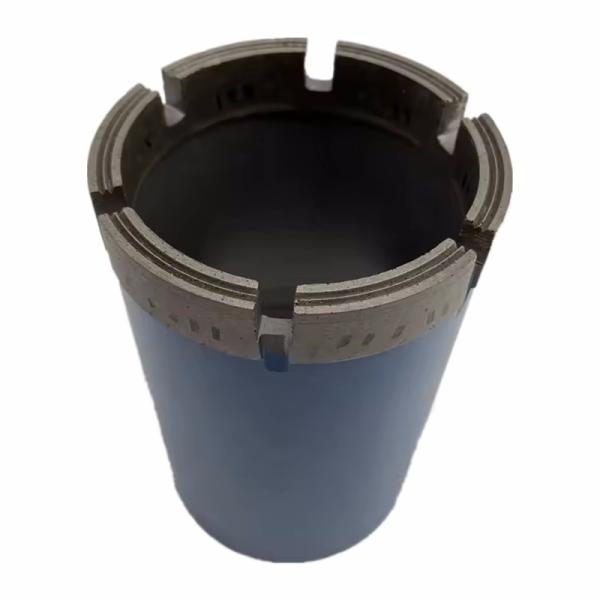

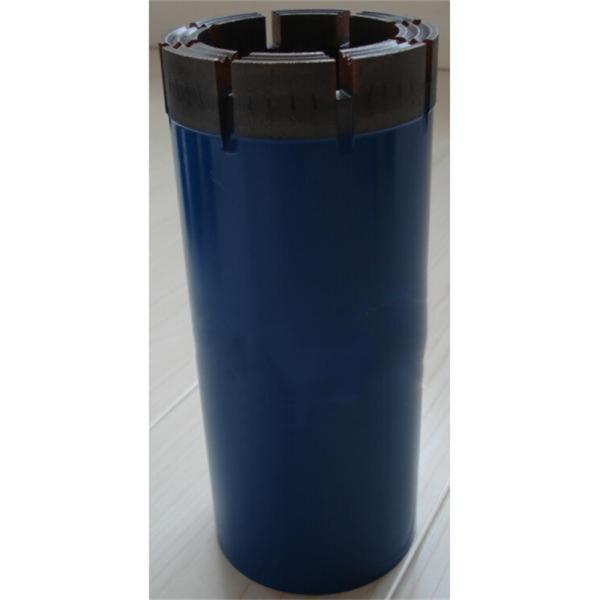

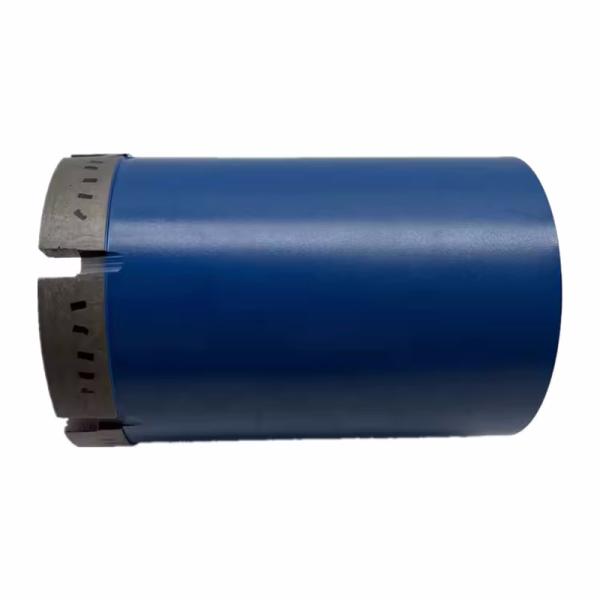

Geological Exploration Core Drilling Casing Shoe Pw Hw Nw Rod Shoe

Product Description

In the drilling and rock coring industry, a casing shoe is an essential tool used in conjunction with a casing string. Here are the characteristics, usage, features, principle description, and requirements of a casing shoe:
Characteristics:

  1. Design: A casing shoe is typically a specialized fitting attached to the bottom end of a casing string. It is designed to facilitate the drilling and casing process by providing a durable and reliable connection between the casing and the rock formation.
  2. Material: Casing shoes are commonly made of durable materials such as hardened steel or tungsten carbide to withstand the rigors of drilling and to provide efficient cutting and wear resistance.
  3. Cutting Structure: Casing shoes feature a cutting structure, such as carbide or diamond-impregnated cutting elements, that helps penetrate and drill through the rock formation during casing advancement.

Rod&Casing Bit

W Series Casing Bit


No.		 Std. Item OD*ID(mm)*内径(mm) Crown Height SN.
1 AW casing bit 59.5*45.2 C6 K3
2 BW casing bit 75.3*56.3 C6 K3
3 NW casing bit 91.8*72.1 C6 K3
4 HW casing bit 117.6*95.9 C6 K3
5 PW casing bit 143.5*117.6 C6 K3
6 SW casing bit 172.5*143.0 C6 K3

X Series Casing Bit


No.		 Std. Item OD*ID(mm)*内径(mm) Crown Height SN.
1 AX casing bit 59.5*45.2 C6 K3
2 BX casing bit 75.3*56.3 C6 K3
3 NX casing bit 91.8*72.1 C6 K3
4 HX casing bit 117.6*95.9 C6 K3
5 PX casing bit 143.5*117.6 C6 K3
6 SX casing bit 172.5*143.0 C6

K3
