BQ NQ HQ Impregnated Diamond Rod Shoes Casing And Rod Shoes
BQ NQ HQ Impregnated Diamond Rod Shoes Casing And Rod Shoes
BQ NQ HQ Impregnated Diamond Rod Shoes Casing And Rod Shoes
BQ NQ HQ Impregnated Diamond Rod Shoes Casing And Rod Shoes
BQ NQ HQ Impregnated Diamond Rod Shoes Casing And Rod Shoes
BQ NQ HQ Impregnated Diamond Rod Shoes Casing And Rod Shoes
BQ NQ HQ Impregnated Diamond Rod Shoes Casing And Rod Shoes
BQ NQ HQ Impregnated Diamond Rod Shoes Casing And Rod Shoes
BQ NQ HQ Impregnated Diamond Rod Shoes Casing And Rod Shoes
BQ NQ HQ Impregnated Diamond Rod Shoes Casing And Rod Shoes
BQ NQ HQ Impregnated Diamond Rod Shoes Casing And Rod Shoes
BQ NQ HQ Impregnated Diamond Rod Shoes Casing And Rod Shoes
BQ NQ HQ Impregnated Diamond Rod Shoes Casing And Rod Shoes
BQ NQ HQ Impregnated Diamond Rod Shoes Casing And Rod Shoes
Specifications
Brand Name :
Aoxing
Model Number :
AQ、BQ、NQ、HQ、PQ、PQ3、HQ3、NQ3、BQ3、NQ2
Certification :
ISO9001
Place of Origin :
Hebei,China
MOQ :
1 Piece
Supply Ability :
1000 Piece/Month
Packaging Details :
in Plywood Case
Model NO. :
AQ、BQ、NQ、HQ、PQ、PQ3、HQ3、NQ3、BQ3、NQ2
Type :
Core drill bit
Material :
Diamond
Usage :
Mining and Exploration
Processing Type :
Forging
Size :
Aw,Bw,Nw,Hw,Hwt,Pw
Product :
Casing Shoe
Transport Package :
Box, Plywood Case or as Request.
Origin :
China
Description

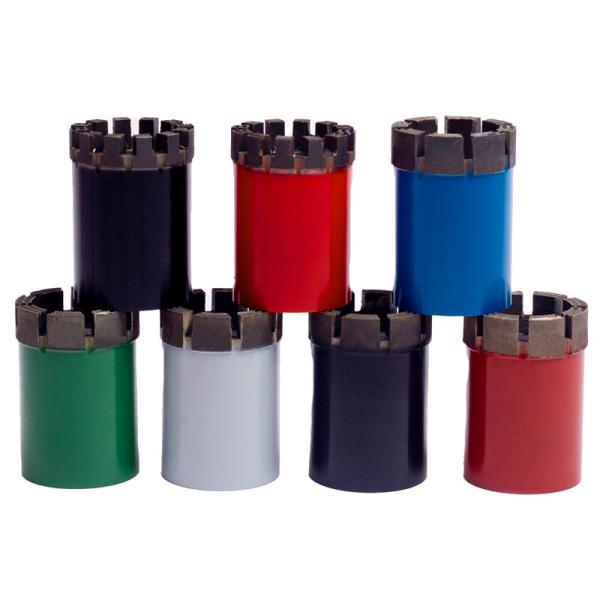

BQ NQ HQ Impregnated Diamond Rod Shoes, Casing and Rod Shoes

Product Description

Casing Tube & Casing Shoe is an ideal product for mining applications. It is made of high-quality steel, which ensures its reliability and durability. Casing & Casing Shoe Bits are used for standard drilling down or positioning casing tubes into drill holes.

The casing and rod shoes are threaded to the end of the outer drill string for penetration through overburden. It assists in seating the outer drill string into the bedrock, providing a tight seal for the drilling fluids to return to the surface. A casing shoe can be used to ream the casing downward when advancing a casing string in an existing hole with the rod string still in place.
The casing shoe inside diameter is flush or has clearance to the inside diameter of the casing which allows free passage of the core barrel through the shoe. Casing shoes are available in standard and heavy duty versions. The heavy duty version has an oversize outer diameter and 6mm crown height.

Product Parameters

Parameter of Casing shoe:

TYPE AW/B BW/B NW/B HW/B HWT/B PW/B
O.D.(mm) 59.5 75.2 91.8 117.4 117.4 143.4
O.D.(inch) 2.34 2.96 3.61 4.62 4.62 5.65
I.D.(mm) 48.3 60.2 76 99.7 99.7 123.4
I.D.(inch) 1.9 2.37 2.99 3.93 3.93 4.86

BQ NQ HQ Impregnated Diamond Rod Shoes Casing And Rod ShoesBQ NQ HQ Impregnated Diamond Rod Shoes Casing And Rod ShoesBQ NQ HQ Impregnated Diamond Rod Shoes Casing And Rod ShoesBQ NQ HQ Impregnated Diamond Rod Shoes Casing And Rod ShoesBQ NQ HQ Impregnated Diamond Rod Shoes Casing And Rod ShoesBQ NQ HQ Impregnated Diamond Rod Shoes Casing And Rod ShoesBQ NQ HQ Impregnated Diamond Rod Shoes Casing And Rod ShoesBQ NQ HQ Impregnated Diamond Rod Shoes Casing And Rod ShoesBQ NQ HQ Impregnated Diamond Rod Shoes Casing And Rod ShoesBQ NQ HQ Impregnated Diamond Rod Shoes Casing And Rod Shoes
