T2 Diamond Core Drill Bits With Diameter 101, 86, 76, 66, 56mm
T2 Diamond Core Drill Bits With Diameter 101, 86, 76, 66, 56mm
T2 Diamond Core Drill Bits With Diameter 101, 86, 76, 66, 56mm
T2 Diamond Core Drill Bits With Diameter 101, 86, 76, 66, 56mm
T2 Diamond Core Drill Bits With Diameter 101, 86, 76, 66, 56mm
T2 Diamond Core Drill Bits With Diameter 101, 86, 76, 66, 56mm
T2 Diamond Core Drill Bits With Diameter 101, 86, 76, 66, 56mm
T2 Diamond Core Drill Bits With Diameter 101, 86, 76, 66, 56mm
T2 Diamond Core Drill Bits With Diameter 101, 86, 76, 66, 56mm
T2 Diamond Core Drill Bits With Diameter 101, 86, 76, 66, 56mm
T2 Diamond Core Drill Bits With Diameter 101, 86, 76, 66, 56mm
T2 Diamond Core Drill Bits With Diameter 101, 86, 76, 66, 56mm
Specifications
Brand Name :
Aoxing
Model Number :
T256 66 76 86 101
Certification :
ISO9001
Place of Origin :
Hebei,China
MOQ :
1 Piece
Packaging Details :
in Plywood Case
Model NO. :
T256 66 76 86 101
Type :
Core Drill Bit
Material :
Diamond
Usage :
Exploration, Mining Drill
Matrix Height :
6mm-12mm
Shape :
Round
Manufacturing Arts :
Sinter
Kind :
Diamond Drill
Specification :
DCDMA, CDDA, BS
Origin :
China
Description

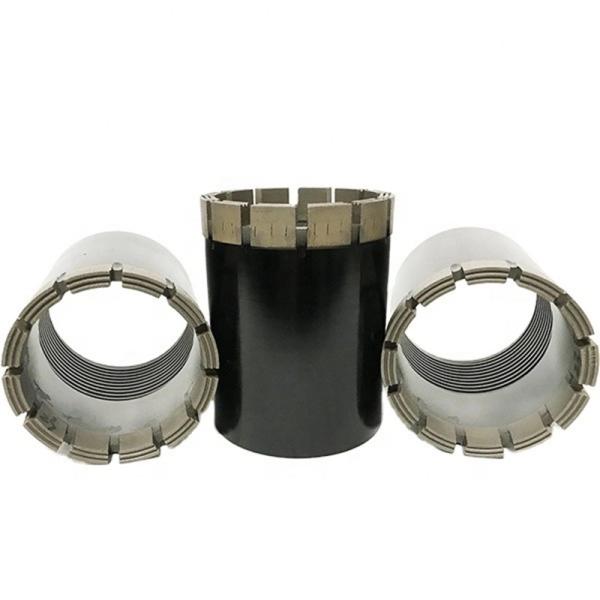

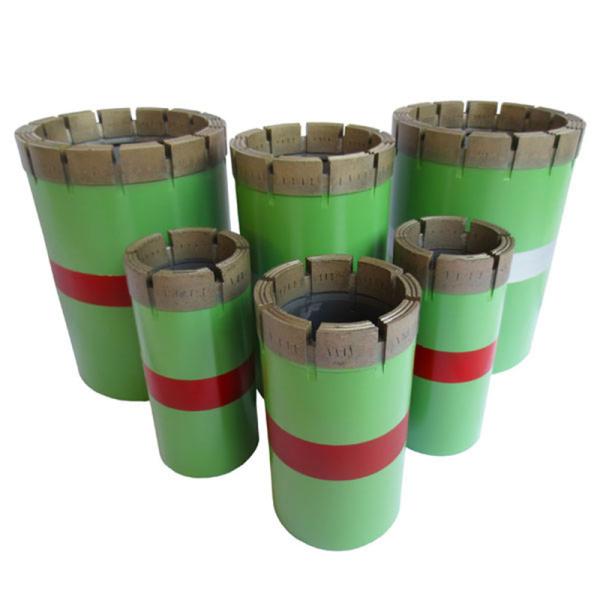

T2 Diamond Core Drill Bits with Diameter 101, 86, 76, 66, 56mm

T2 series core bits are used for surface exploration with the T2 series core barrel.

The main crown technical parameters of impregnated diamond core bits include diamond grade,size,
concentrarion and quality,matrix hardness and crown shapes. The users can make rational selections according to the formations to be drilled.

To avoid excessive bit wear, tungsten carbide inserts are used on both sides on the waterway, and gage stones are a bit larger.

T Series Bit

No. Std. Item OD*ID(mm) Crown Height SN.
1 T2-46 diamond bit 46.0*31.7 C6 K3 K5 K7 K9
2 T2-56 diamond bit 56.0*41.7 C6 K3 K5 K7 K9
3 T2-66 diamond bit 66.0*51.7 C6 K3 K5 K7 K9
4 T2-76 diamond bit 76.0*61.7 C6 K3 K5 K7 K9
5 T2-86 diamond bit 86.0*71.7 C6 K3 K5 K7 K9
6 T2-101 diamond bit 101.0*83.7 C6 K3 K5 K7 K9
7 T6-76 diamond bit 76.0*57.0 C6 C9 K3 K5 K7 K9
8 T6-86 diamond bit 86.0*67.0 C6 C9 K3 K5 K7 K9
9 T6-101 diamond bit 101.0*79.0 C6 C9 K3 K5 K7 K9
10 T6-116 diamond bit 116.0*93.0 C6 C9 K3 K5 K7 K9
11 T6-131 diamond bit 131.0*108.0 C6 C9 K3 K5 K7 K9
12 T6-146 diamond bit 146.0*123.0 C6 C9 K3 K5 K7 K9
13 T6S-76 diamond bit 76.3*47.7 C6 C9 K3 K5 K7 K9
14* T6S-86 diamond bit 86.3*57.7 C6 C9 K3 K5 K7 K9
15 T6S-101 diamond bit 101.3*71.7 C6 C9 K3 K5 K7 K9
16 T6S-116 diamond bit 116.3*85.7 C6 C9 K3 K5 K7 K9
17 T6S-131 diamond bit 131.3*100.7 C6 C9 K3 K5 K7 K9
18 T36 diamond bit 36.0*21.7 C6 K3 K5 K7 K9
19 TT46 diamond bit 46.0*35.2 C6 K3 K5 K7 K9
20 TT56 diamond bit 56.0*45.2 C6 K3 K5 K7 K9

T2 Diamond Core Drill Bits With Diameter 101, 86, 76, 66, 56mmT2 Diamond Core Drill Bits With Diameter 101, 86, 76, 66, 56mmT2 Diamond Core Drill Bits With Diameter 101, 86, 76, 66, 56mm

Hardness table


Rock Type
Rock Hardness
Abrasiveness
Hardness NO.

Clay,Shale,Ash Stone,Gypsum,Tuff,Serpentinite,Calcite,
Coal,Argillite,Volcanics,Sandly Pebble
Soft
Medium		 BST 1/3

Sandstone,Lithoid Limestone, Limonite
Medium Soft
Very High		 BST 3/5

Medium Hard Sandstone,Hard Shale,
Hard Ash Stone,Dolomitic,Marble,Hard Schist,
Hard Streak Stone,Siltstone,Andestite
Medium
High		 BST 5/7
Peridotite,Gneiss,Limonite
Medium Hard
Medium High		 BST 7/9

Pegmatite,Schist,Norite,Syenite,Gabbro,Peridotite,
Grandiorite,Granite,Basalt,Hard Streak Stone
Hard
Medium To Low		 BST 9/11
Amphibolite,Diorite,Rhyolite,Quartzite Very Hard Medium To Low BST 11

Silicious,Hard Sandstone,Rhyolite,
Dense Quartzite,Ironstone,Taconite,Jasperite,Chert
Utral Hard
Low		 BST 14
