Specifications
Brand Name :
COSTEL
Model Number :
Borg Warner Schwitzer 3K
Certifiion :
ISO9001:2008/ TS16949
Place of Origin :
China wuxi
MOQ :
1pc
Price :
negotiation
Payment Terms :
T/T ,western Union, Paypal ,LC
Supply Ability :
10000pcs per month
Delivery Time :
3-7 working days after received your payment
Packaging Details :
Neutral Packing
Balanced :
Turbo Technics VSR or schenck machine
Warranty :
One year
Quality :
OEM Quality
Apply :
Repair Engine Turbo
Description

electric car turbo POINT-Panda-MUSA-FIORINO, Opel Corsa, Lancia with SJTD 16V Multijet Engine KP35 Turbo 54359880005 54359700005


Specifiions:

Part Number 54359880005
Previous Part Number 5435-988-0005, 5435 988 0005
OE number 73501343, 71784113, 5860030, 93191993
Description Commercial
Manufacturer Part Number 54359700005, 5435-971-0005 5435-970-0005, 5435 971 0005 5435 970 0005
CHRA 54357100503 (54357100505, 5435-710-0505)

Turbo Model KP35-005, KP35-1570CBC180.85ACAXD
Engine SJTD, 16V Multijet, Z13DTJ
Appliion POINT-Panda-MUSA-FIORINO, Opel Corsa, Lancia
Displacement 1.25L, 1248 ccm
KW 51/55
RPM Max 4500
Fuel Diesel
Angle α (compressor housing) 143�
Angle β (turbine housing) 189�
Bearing Housing 54351523003 NEW IN STOCK
Turbine Wheel 54351523001 NEW IN STOCK
Comp. Wheel 54351232005 NEW IN STOCK
Back plate 54351523001 (S/Back 38 mm 54351523000/0001) NEW IN STOCK
Heat Shield 54351652000 NEW IN STOCK
Repair Kit NEW IN STOCK
Turbine Housing 54351009017
Compressor Cover 54351014808
Turbine Housing AR 180
Actuator 58201104311/58201104216
Settings Waste gate (pressure) 1.38 bar
Settings Waste gate (lift shaft) 2.00 mm
Gasket (turbine inlet) 210673
Gasket (turbine outlet) 210674
Gasket (oil outlet) 210553
Gasket (air outlet compressor housing) 210806
NOTE Inter-cooler
Manufacturer Borg Warner - 3K - Schwitzer

Appliions

Fiat Commercial Qubo, Dobl� - Fiorino with SJTD Engine

Fiat Punto, Idea JTD, Panda with SJTD Engine

Lancia Musa, Ypsilon with SJTD Engine

Opel with SJTD Engine

2003- Fiat Doblo 1.3 JTD Engine 16V Multijet

2003- Fiat Idea 1.3 JTD Engine 16V Multijet

2003- Fiat Punto II 1.3 JTD Engine 16V Multijet

2003- Fiat Qubo 1.3 JTD Engine 16V Multijet

2003- Lancia Musa 1.3 16V Multijet Engine 16V Multijet

2003- Lancia Ypsilon 1.3 Multijet 16V Engine 16V Multijet

2005- Opel Corsa D 1.3 CDTI Engine Z13DTJ

Pictures:

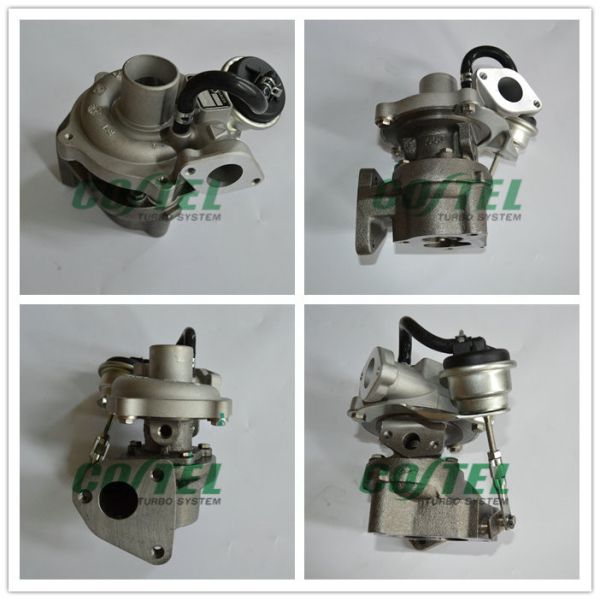

Lancia Borg Warner KKK Turbo Charger With SJTD Engine Clio Dci 1.5 54359880005 54359700005

Contact:

Email/Skype:costelturbo@outlook.com

Shipping:

Depending on various circumstances, three different delivery methods have been taken:

1 By sea. 2 By air cargo. 3 By express service.

Delivery term

Our extensive stock of turbochargers allows us to offer 3-7 working day delivery service ensuring that you and your customer wait no longer than is necessary.
50-150 pcs--15-20 days, 150-300 pcs--25 days, over 300 pcs -- 30 days.

COSTEL complete Turbo

A.our products have 12 months warranty.

B.Product are manufactured to OE standards of quality

C.All wheels are processed on the Schenck automatic balancing centre with air bearings to achieve lowest residual balance.

D.Cartridges are assemblied by automatic line, and are balanced with Turbo Technics VSR or Schenck .

E.All VNT turbochargers are tested on the G3 VNT Flow Bench.

F.All turbochargers are supplied with gasket kits.

PRODUCTS coverage

  • Garrett(GT12,GTC14,GT15-25,GT37,GT42,GT45 etc),
  • KKK (K03,K04,K06,K16,K27,K31,KP35,KP39,BV43,BV50,R2S etc),
  • Schwitzer (S1B/S100,S2B/S200,S300,S400 etc),
  • MHI (TD02,TF035,TD04,TD05,TD06 ,TD07,TD08 etc),
  • Holset(HX30,HX35/HE341,HX40/HE431V,HX55/HE551,HT60,HX80 etc),
  • IHI (RHF/RHB3,RHF/RHB4,RHF5/RHB5,RHG6,RHG7,RHG8 ,RHG9 etc),
  • Toyota (CT9,CT10,CT12,CT16V,CT20,CT26 etc).
