Isuzu Trooper Engine 4JB1T turbo core RHB52W Turbo VF130047 VI58 8944739540 8944739541
Isuzu Trooper Engine 4JB1T turbo core RHB52W Turbo VF130047 VI58 8944739540 8944739541
Isuzu Trooper Engine 4JB1T turbo core RHB52W Turbo VF130047 VI58 8944739540 8944739541
Isuzu Trooper Engine 4JB1T turbo core RHB52W Turbo VF130047 VI58 8944739540 8944739541
Specifications
Brand Name :
COSTEL
Model Number :
CHRA Core Assemblies
Certifiion :
ISO9001:2008/ TS16949
Place of Origin :
China Wuxi
MOQ :
1PC
Price :
Negotiation
Payment Terms :
T/T ,western Union, Paypal ,LC
Supply Ability :
10000 Pcs Per Month
Delivery Time :
3-7 Working Days After Received Payment
Packaging Details :
Neutral Packing
Balanced :
Turbo Technics VSR or schenck machine
Materical :
K418
Apply :
Repair Turbo
Warranty :
One year
Description

Isuzu Trooper Engine 4JB1T turbo core RHB52W Turbo VF130047 VI58 8944739540 8944739541

Specifiions

Part Number VF130047
Previous Part Number VA130047, NB150040, VD130047
OE number 8-94473-9540, 8944739540, 8944739541, 8-94473-9541, 94473954, 4313321
V-SPEC. VI58
Year 1988-91
Description Isuzu Trooper, Early Holden Rodeo
CHRA NE920028
Turbo Model RHB52W-52002P15NRBRL3911EZ
Engine 4BD1-T, 4JB1T, 4JB1-CT
Displacement 2.8L, 2772 ccm, 4 Cylinders
Power 97 HP
Fuel Diesel
Angle α (compressor housing) 114�
Angle β (turbine housing) 19�
Bearing Housing NN133378 (053T-520) NN133362
Turbine Wheel NN131502
Comp. Wheel NN136610 (39T-044)
Back plate NN133021 (64T-002)
Heat Shield NN137055 (38T-013)
Repair Kit NN139922(509T-545)
Turbine Housing NN139583
Compressor Cover NN134882
Turbine Housing AR 15
Actuator NH970334
Settings Waste gate (pressure) 1.049 bar
Settings Waste gate (lift shaft) 2.00 mm
Gasket (turbine inlet) 210276 (2445051, Metal)
Gasket (turbine outlet) 210578 (2495128, Metal)
Gasket (oil outlet) 210636 (2445067, Paper) $3.21
Gasket (oil inlet) 1203215, 1203715 (Paper)
Gasket (Water) 1203216
Replaced By VF130047
Manufacturer IHI

Appliions

1987-91 Isuzu Trooper 2.8L TD (UBS55) Engine 4JB1T

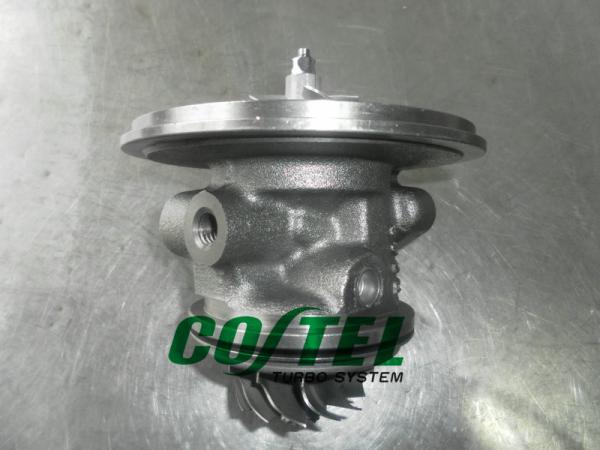

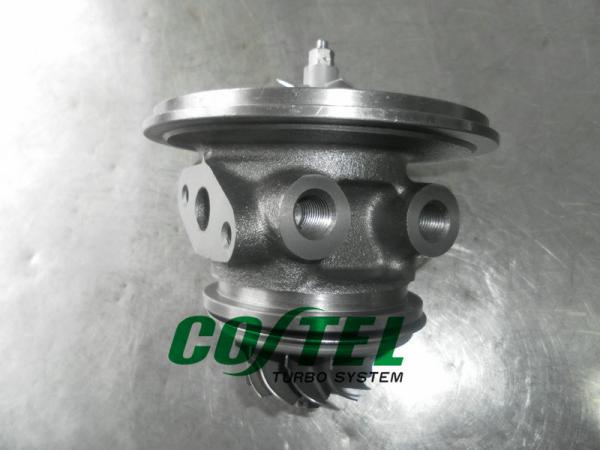

Pictures:

Isuzu Trooper Engine 4JB1T turbo core RHB52W Turbo VF130047 VI58 8944739540 8944739541Isuzu Trooper Engine 4JB1T turbo core RHB52W Turbo VF130047 VI58 8944739540 8944739541

Contact:

Email/Skype:costelturbo@outlook.com

Shipping:

Depending on various circumstances, three different delivery methods have been taken:

1.By sea 2.By air cargo 3.By express service.

Delivery term

Our extensive stock of turbochargers and CHRA allows us to offer 3-7 working day delivery service ensuring that you and your customer wait no longer than is necessary.
1.50-150 pcs--7-15 days 2.150-300 pcs--15-25 days 3.over 300 pcs -- 30 days.

COSTEL CHRA Core Assemblies

What material costel use for key parts:

A, The turbine wheels casting is made from fresh high nickel(>73%) alloy Inconel 713,the equivalent being K418;

B, The compressor wheels casting made from CW355;

What balance machine use:

A, All cartridges are balanced with Turbo Technics VSR or schenck machine.

B, All wheels are balanced with the Schenck automatic balancing centre incorporating air bearings to achieve lowest residual balance.

Products Coverage:

  • Garrett(GT12,GTC14,GT15-25,GT37,GT42,GT45 etc),
  • KKK (K03,K04,K06,K16,K27,K31,KP35,KP39,BV43,BV50,R2S etc),
  • Schwitzer (S1B/S100,S2B/S200,S300,S400 etc),
  • MHI (TD02,TF035,TD04,TD05,TD06 ,TD07,TD08 etc),
  • Holset(HX30,HX35/HE341,HX40/HE431V,HX55/HE551,HT60,HX80 etc),
  • IHI (RHF/RHB3,RHF/RHB4,RHF5/RHB5,RHG6,RHG7,RHG8 ,RHG9 etc),
  • Toyota (CT9,CT10,CT12,CT16V,CT20,CT26 etc).
