GT1238 727211-5001S A1600960999 Smart Fortwo turbo Actuator valve wastegate
GT1238 727211-5001S A1600960999 Smart Fortwo turbo Actuator valve wastegate
Specifications
Brand Name :
COSTEL
Model Number :
Turbo Actuators
Certifiion :
ISO9001:2008/ TS16949
Place of Origin :
China Wuxi
MOQ :
1 PC
Price :
Negotiation
Payment Terms :
T/T ,western Union, Paypal ,LC
Supply Ability :
10000pcs per month
Delivery Time :
3-7 working days after received your payment
Packaging Details :
Neutral Packing
Type :
Full Kit
Warranty :
One year
Quality :
OEM Quality
Apply :
Repair Engine Turbo
Description

GT1238 727211-5001S A1600960999 Smart Fortwo turbo Actuator valve wastegate

Part Number 727211-5001S
Previous Version 727211-0001
OE number 1600960999, A1600960999, Q0012473V001000000, 8200683864A, 0012473V001000000
Year 02-06
Description Fortwo, Roadster
CHRA 451548-0006 (451548-0002) NEW IN STOCK
Turbo Model GT1238S
Engine M160
Engine Manufacturer MCC
Displacement 0.6L, 698 ccm, 3 Cylinders
Fuel Gasoline
kW 45/50
Angle α (compressor housing) 0�
Angle β (turbine housing) 168,0�
Bearing Housing 709349-0001/434775-0013
Turbine Wheel 434927-0015/434927-0002
Comp. Wheel 434976-0010/434927-0002
Turbine Housing 434983-0019
Compressor Cover 721613-0006/721486-0003
Actuator 727237-0001/434927-0015
settings Waste gate (pressure) 0.510-0.550 bar
settings Waste gate (lift shaft) 1.00 mm
Gasket exhaust manifold 210556
Gasket (oil outlet) 210382
Manufacturer Honeywell-Garrett

Appliions

2002- Smart-MCC Smart Fortwo Engine M160-1

02-06 Smart-MCC Smart Roadster (MC01) Engine M160R3 3 Cyl

Pictures:

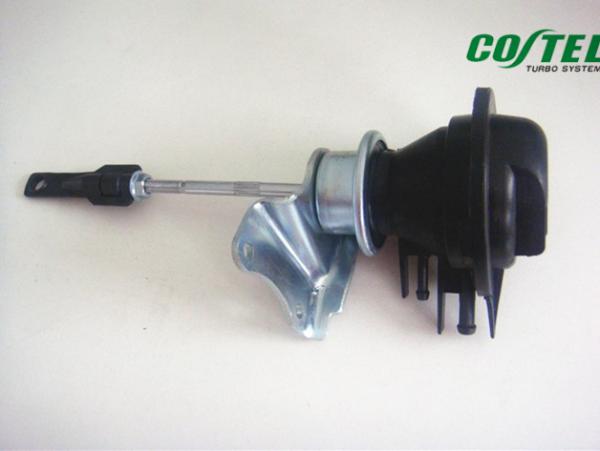

GT1238 727211-5001S A1600960999 Smart Fortwo turbo Actuator valve wastegate

Contact:

Email/Skype:costelturbo@outlook.com

What items can supply:
A, currently supplies over 220 different actuators, which includes Pressure acutators, Pneumatic actuators, Vacuum actuators with position sensors, and so on.
B, The replacement actuators cover many popular originally manufactured turbos.
C, Electrical Actuators Parts, including Motors, Worm Gear, Loing Lug, Gearboxes etc.
D, Permeability test 100%.
E, Spring liner data test 100%.

Products coverage:

  • Garrett(GT12,GTC14,GT15-25,GT37,GT42,GT45 etc),
  • KKK (K03,K04,K06,K16,K27,K31,KP35,KP39,BV43,BV50,R2S etc),
  • Schwitzer (S1B/S100,S2B/S200,S300,S400 etc),
  • MHI (TD02,TF035,TD04,TD05,TD06 ,TD07,TD08 etc),
  • Holset(HX30,HX35/HE341,HX40/HE431V,HX55/HE551,HT60,HX80 etc),
  • IHI (RHF/RHB3,RHF/RHB4,RHF5/RHB5,RHG6,RHG7,RHG8 ,RHG9 etc),
  • Toyota (CT9,CT10,CT12,CT16V,CT20,CT26 etc).
