Turbo Billet Compressor Wheel Garrett GTX3582R Gen II 10+0 Point Milling
Turbo Billet Compressor Wheel Garrett GTX3582R Gen II 10+0 Point Milling
Turbo Billet Compressor Wheel Garrett GTX3582R Gen II 10+0 Point Milling
Turbo Billet Compressor Wheel Garrett GTX3582R Gen II 10+0 Point Milling
Specifications
Brand Name :
COSTEL
Model Number :
Compressor Wheels
Certifiion :
ISO9001:2008/ TS16949
Place of Origin :
China Wuxi
MOQ :
1PC
Price :
Negotiation
Payment Terms :
T/T ,western Union, Paypal ,LC
Supply Ability :
10000 Pcs Per Month
Delivery Time :
3-7 Working Days After Received Payment
Packaging Details :
Neutral Packing
Balanced :
100% SCHENCK Xano
Materical :
Aluminum Alloy
Apply :
Repair Turbo
Warranty :
One year
Description

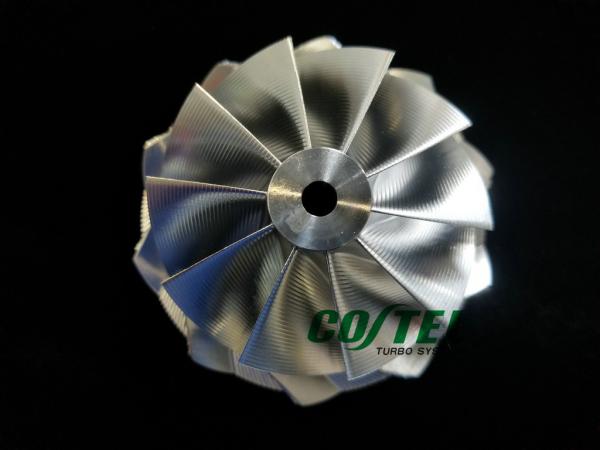

Garrett GTX3582R Gen II Turbo Billet

Compressor Wheel / 10+0 Blades / Point Milling

APPLIION
- Replace wheel number :

- Fit turbo #.851154-5004S, 856801-5067S,

856801-5068S, 856801-5069S, 856801-5070S,

856801-5071S, 856801-5072S, 856801-5079S,

856801-5080S, 856801-5081S

WHEEL SPEC

- Nose Dia : 15.5 mm

- Inducer Dia : 65.7 mm

- Exducer Dia : 82.46 mm

- Extend Tapered Tip Exducerdia : 88.22 mm

- Tip Height : 5.98 mm

- Super Back Height : 2.36 mm

- Overall Height : 37.82 mm

- Bore : 6.35 mm

- Racing or Non-racing : Racing

- STD or customs size : STD size

- Blade : 10+0

- Trailing angle : 45 Degree

- Bore type : through

- Fit OE or custom housing : OE Housing

- Cutback : 6.5 mm

- Rotation : Forward

MATERIAL

- Forged Aluminum

BALANCED

- Balanced By SCHENCK Germany

- Ready to competition

Contact:

Business Phone : 86-18061520139
WHATSAPP : 86-18061520139
Skype : costelturbo@outlook.com
Email : costelturbo@outlook.com

What items can supply:

A, more than 500 Compressor Wheels available.The exducer diameter of the wheels range from 33mm to 140mm which can be applied to light and heavy duty commercial vehicles.
A, Compressor wheels casting is made from fresh C355;
B, Billet Wheels is made from solid 7075;
C,All wheels are balanced with the Schenck automatic balancing centre incorporating air bearings to achieve lowest residual balance.

What characters have else:
A, Professional testing equipment to test the material hardness and tensile strength.
B, Surface treatment technology is used (Hot Isostatic Pressing) for the anti-corrosion function.
C, We manufacture special wheels with features such as internal thread technology, Billet Wheels machined by five-axis machine, wheels with double protective structure of titanium and alloy.

Products Coverage:

  • Garrett(GT12,GTC14,GT15-25,GT37,GT42,GT45 etc),
  • KKK (K03,K04,K06,K16,K27,K31,KP35,KP39,BV43,BV50,R2S etc),
  • Schwitzer (S1B/S100,S2B/S200,S300,S400 etc),
  • MHI (TD02,TF035,TD04,TD05,TD06 ,TD07,TD08 etc),
  • Holset(HX30,HX35/HE341,HX40/HE431V,HX55/HE551,HT60,HX80 etc),
  • IHI (RHF/RHB3,RHF/RHB4,RHF5/RHB5,RHG6,RHG7,RHG8 ,RHG9 etc),
  • Toyota (CT9,CT10,CT12,CT16V,CT20,CT26 etc).
