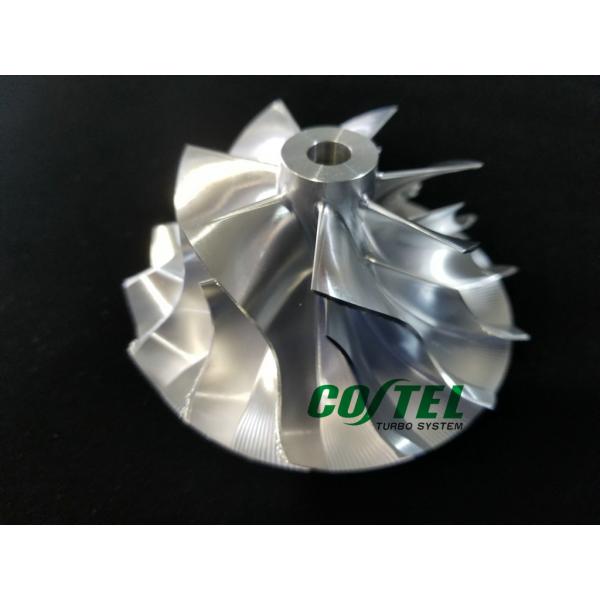

S300 62.98/87.38mm Billet Compressor Wheel 7+7 Blades 1387-123-2001 Turbo
S300 62.98/87.38mm Billet Compressor Wheel 7+7 Blades 1387-123-2001 Turbo
Specifications
Brand Name :
COSTEL
Model Number :
Compressor Wheels
Certifiion :
ISO9001:2008/ TS16949
Place of Origin :
China Wuxi
MOQ :
1PC
Price :
Negotiation
Payment Terms :
T/T ,western Union, Paypal ,LC
Supply Ability :
10000 Pcs Per Month
Delivery Time :
3-7 Working Days After Received Payment
Packaging Details :
Neutral Packing
Balanced :
100% SCHENCK Xano
Materical :
Aluminum Alloy
Apply :
Repair Turbo
Warranty :
One year
Description

1. MODEL:S300 forward

2.S300 62.98/87.38mm 7+7 blades 1387-123-2001 turbocharger billet/aluminum 2618/milling compressor wheel for 316524/316582/316637/316638/316752/316753/319361

3.Size:

Nose dimeter:17.67mm

inducer:62.98mm

Exduder:87.38mm

Tapered tip exducer:91.43mm

Tip height:7.23mm

Superback:7.01mm

Overall height:49.09mm

bore size :8.01mm

Trailing angle:75

Cutback:0.0

SP height angle:-9.50

Blade height:37.75mm

Splitter height:23.95mm

7+7 blades

S300 62.98/87.38mm Billet Compressor Wheel 7+7 Blades 1387-123-2001 Turbo


Contact:

Business Phone : 86-18061520139
WHATSAPP : 86-18061520139
Skype : costelturbo@outlook.com
Email : costelturbo@outlook.com

What items can supply:
A, more than 500 Compressor Wheels available.The exducer diameter of the wheels range from 33mm to 140mm which can be applied to light and heavy duty commercial vehicles.
A, Compressor wheels casting is made from fresh C355;
B, Billet Wheels is made from solid 7075;
C,All wheels are balanced with the Schenck automatic balancing centre incorporating air bearings to achieve lowest residual balance.

What characters have else:
A, Professional testing equipment to test the material hardness and tensile strength.
B, Surface treatment technology is used (Hot Isostatic Pressing) for the anti-corrosion function.
C, We manufacture special wheels with features such as internal thread technology, Billet Wheels machined by five-axis machine, wheels with double protective structure of titanium and alloy.

Products Coverage:

  • Garrett(GT12,GTC14,GT15-25,GT37,GT42,GT45 etc),
  • KKK (K03,K04,K06,K16,K27,K31,KP35,KP39,BV43,BV50,R2S etc),
  • Schwitzer (S1B/S100,S2B/S200,S300,S400 etc),
  • MHI (TD02,TF035,TD04,TD05,TD06 ,TD07,TD08 etc),
  • Holset(HX30,HX35/HE341,HX40/HE431V,HX55/HE551,HT60,HX80 etc),
  • IHI (RHF/RHB3,RHF/RHB4,RHF5/RHB5,RHG6,RHG7,RHG8 ,RHG9 etc),
  • Toyota (CT9,CT10,CT12,CT16V,CT20,CT26 etc).
