Billet Turbo Compressor Wheel Car Turbo Kit IHI RHF5 ISUZU 4JH1 4JX1 VIED
Billet Turbo Compressor Wheel Car Turbo Kit IHI RHF5 ISUZU 4JH1 4JX1 VIED
Billet Turbo Compressor Wheel Car Turbo Kit IHI RHF5 ISUZU 4JH1 4JX1 VIED
Billet Turbo Compressor Wheel Car Turbo Kit IHI RHF5 ISUZU 4JH1 4JX1 VIED
Billet Turbo Compressor Wheel Car Turbo Kit IHI RHF5 ISUZU 4JH1 4JX1 VIED
Billet Turbo Compressor Wheel Car Turbo Kit IHI RHF5 ISUZU 4JH1 4JX1 VIED
Billet Turbo Compressor Wheel Car Turbo Kit IHI RHF5 ISUZU 4JH1 4JX1 VIED
Billet Turbo Compressor Wheel Car Turbo Kit IHI RHF5 ISUZU 4JH1 4JX1 VIED
Specifications
Brand Name :
COSTEL
Model Number :
Compressor Wheels
Certifiion :
ISO9001:2008/ TS16949
Place of Origin :
China Wuxi
MOQ :
1PC
Price :
Negotiation
Payment Terms :
T/T ,western Union, Paypal ,LC
Supply Ability :
10000 Pcs Per Month
Delivery Time :
3-7 Working Days After Received Payment
Packaging Details :
Neutral Packing
Balanced :
100% SCHENCK Xano
Materical :
Aluminum Alloy
Apply :
Repair Turbo
Warranty :
One year
Description

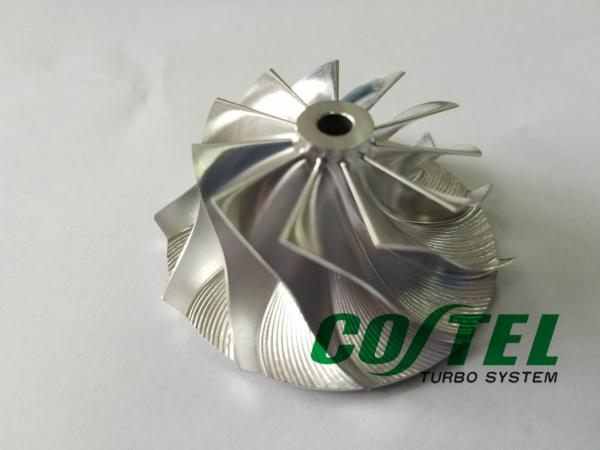

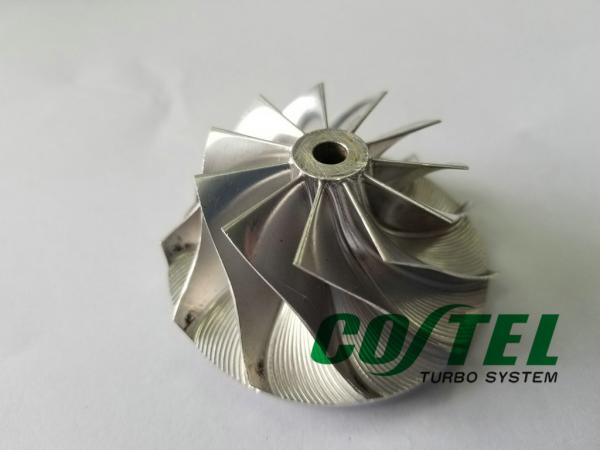

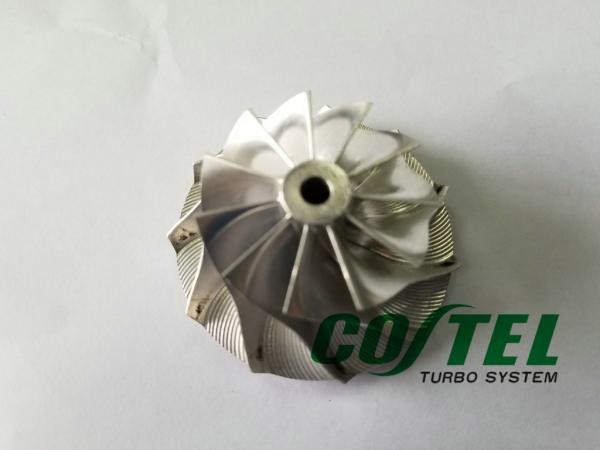

IHI RHF5 Turbo Billet Compressor Wheel 39.22 / 52.50 mm Trim 56

Replace wheel number: NH444001

-　Fit CHRA:

-　Fit Turbo # : VIED (ISUZU 4JH1T), VIEK (ISUZU 4JH1T), VIDS (ISUZU 4JX1T), VIDF (4JX1T)

Product Situation

-　Brand New

-　Maximum boost 5 bar / 70 Psi

Balance

-　Balanced By SCHENCK Germany

-　Ready to competition

Wheel Size

-　Inducer Dia. : 39.22 mm

-　Exducer Dia. : 52.50 mm

-　Trim: 56

-　Extend Tapered Tip Exducer dia : No Extended Tip

-　Tip Height: 5.32 mm

-　Super Back Height: 1.53 mm

-　Overall Height : 24.45 mm

-　Bore: 5.10 mm

-　Blade : 6+6

-　Direction : Forward

Contact:

Business Phone : 86-18061520139
WHATSAPP : 86-18061520139
Skype : costelturbo@outlook.com
Email : costelturbo@outlook.com

What items can supply:

A, more than 500 Compressor Wheels available.The exducer diameter of the wheels range from 33mm to 140mm which can be applied to light and heavy duty commercial vehicles.
A, Compressor wheels casting is made from fresh C355;
B, Billet Wheels is made from solid 7075;
C,All wheels are balanced with the Schenck automatic balancing centre incorporating air bearings to achieve lowest residual balance.

What characters have else:
A, Professional testing equipment to test the material hardness and tensile strength.
B, Surface treatment technology is used (Hot Isostatic Pressing) for the anti-corrosion function.
C, We manufacture special wheels with features such as internal thread technology, Billet Wheels machined by five-axis machine, wheels with double protective structure of titanium and alloy.

Products Coverage:

  • Garrett(GT12,GTC14,GT15-25,GT37,GT42,GT45 etc),
  • KKK (K03,K04,K06,K16,K27,K31,KP35,KP39,BV43,BV50,R2S etc),
  • Schwitzer (S1B/S100,S2B/S200,S300,S400 etc),
  • MHI (TD02,TF035,TD04,TD05,TD06 ,TD07,TD08 etc),
  • Holset(HX30,HX35/HE341,HX40/HE431V,HX55/HE551,HT60,HX80 etc),
  • IHI (RHF/RHB3,RHF/RHB4,RHF5/RHB5,RHG6,RHG7,RHG8 ,RHG9 etc),
  • Toyota (CT9,CT10,CT12,CT16V,CT20,CT26 etc).
