High power HID replacement corn led lamps , 150lm / w led corn bulb E40
Application:
Replacement for conventional HID/MH/HPS lamps, such as post top, canopy light, high bay fixture, etc.
Advantages:
1. Ventilation heat sink design, gap separated with driver base, insulate thermal transmission and increase more cooling surface areas.
2. For totally enclosed fixture using.
3. IP65 waterproof design, use for wet location.
4. Compatible with certain confirmed ballasts.
5. 6000V high voltage surge protection
6. High lumen effect: 150lm/W.
7. UL/DLC4.0/CUL/FCC/CE/RoHS Certificated.
8. 5 years warrany
9. IES files, ISTMT, LM79, LM80 test reports are available.
10. Retrofit replacement for conventional HID/MH/HPS lamps.: Post top, Teardrop, Canopy light, High bay fixture, etc.
Specifications:
Model No | RMS-360D-K4-Ⅱ-80W |
Color temperature | 2700K-6500K |
CRI | >80Ra |
Lumen | 12000LM |
Lumen Efficacy | >150 lm/w |
Input Power | 120W |
Viewing Angle | 360 Degree |
Base Type | E39/EX39/E40 |
Input Voltage | AC100-300V |
Frequency Range | 50-60 HZ |
PFC | >90% |
Life Span | 50000 Hours |
Waterproof Rating | IP65 |
Operating Temperature | -30℃ TO50 ℃ |
Application | Indoor / Outdoor |
Certification | DLC UL CE RoHS LM79 LM80 |
Warranty Time | 5 Years |
LED Brand | SAMSUNG / EPISTAR |
LED Type | SMD 2835 |
LED QTY | 572pcs |
Housing | Aluminum fin Heat Sink |

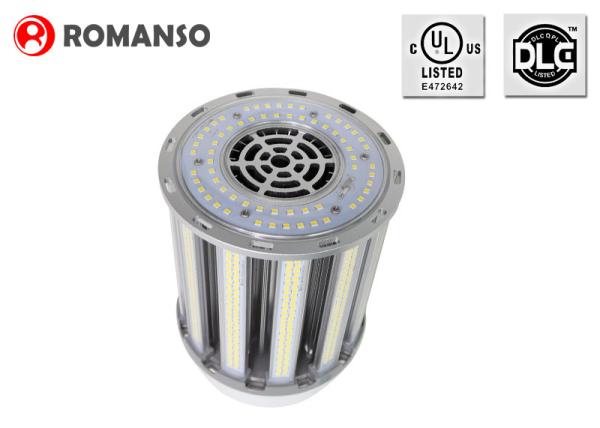

120W Led Corn Light Picture:
Aging test :
![]() |
![]() |
