Specification:
Power |
36w |
LED Brand |
SAMSUNG / EPISTAR |
Lumen |
4680lm±100lm |
CCT |
3000k / 4000k / 5000k / 6000k |
Voltage |
AC100-300V |
PF |
>0.9 |
CRI |
>80 |
Viewing Angle |
360 Degree |
IP Rating |
IP64 |
Housing |
6063 Aluminum+Petardant PC |
Capacitors |
RUBYCON |
Glue |
DOW CORNING |
Base Type |
E26/E27/E39/E40 |
Compatible INDUCTANCE BALLAST |
YES |
Suitable for use in totally enclosed luminaires |
YES |
Dimension |
Φ95*210mm |
Certification |
UL/CUL/CE/ROHS/LM80/IES |
Warranty Time |
5 Years |
Product Detail:
EPISTAR CHIP
1.Global branded led used;
2.High lumen flux,130lm/w;
3.LM-80 Listed;
4.Best stability and high brightness;
6063 ALUMINUM
1.Private mode 6063 Aluminum thermal structure;
2.High quality aluminum processing techique;
3.Special surface treatment Process.
Driver
1. Use top brand capacitors Rubycon;
2. Compatible with inductance ballast.
(We are the first one to design and
manufacture)
Dow Corning Thermal Glue
1. Isolated driver fully potted with Dow Corning
thermal glue;
2. A whole series led corn light can be used in
TOTALLY enclosed luminaires.
IP64 Ingress Protection Design
1. Waterproof rubber plugs on the base;
2. Waterproof rubber buttons on the both side
of PCB board;
3. Waterproof rubber rings on top of lamp.
36W LED Post Top Retrofit:
Wattage |
Incandescent lamp |
CFL |
MHL/HPS/HID |
36W IP64LED Replacement Kit |
100W |
150W |
180W |

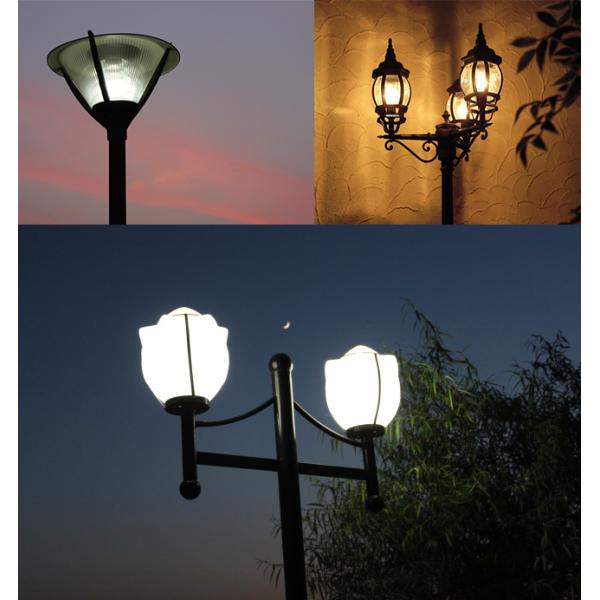

Aplication:
Our Advangtage | 1. High Service Quality We believe that customer service is our most important product, and consistently try to exceed clients' expectations. We understand the needs of market and are always in a position to provide buyers with the latest products for their different regions. |
2. High Product Quality Product quality standards are guaranteed. Most of our products have got CE&Rohs certified. WE all produced with best raw and processed materials and advanced technology. Every product must pass strict quality inspection before sales, including shock-proof test, burning testing,battery test and so on. |
|
3. Competitive price We are located in the South China, our price is very competitive because we are manufactory, we are the source. Professional after-sale team to work for you. |
