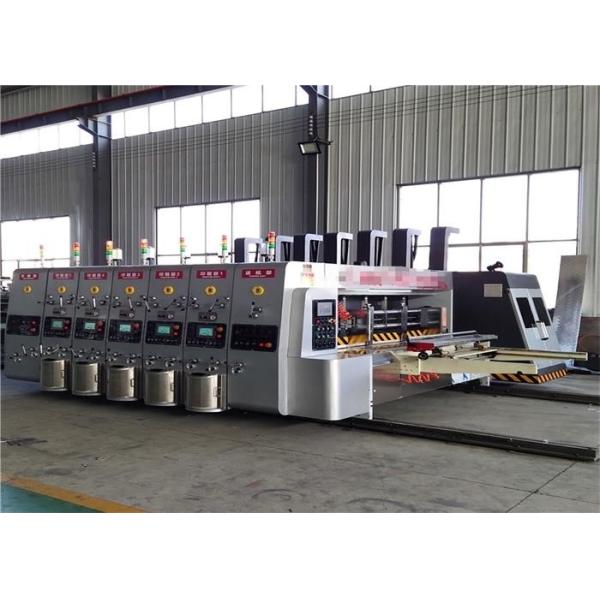

2colors Cardboard Paper 415V Corrugated Box Printing Machine Flexo Carton Slotting
2colors Cardboard Paper 415V Corrugated Box Printing Machine Flexo Carton Slotting
Specifications
Brand Name :
DAHUA
Model Number :
SYKM1200-2400
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 set
Price :
usd 25000 - 110000 per set
Payment Terms :
T/T, L/C, D/A, D/P, Western Union
Supply Ability :
50 sets per month
Delivery Time :
25-40 days after deposit
Packaging Details :
PP film wrapped outside
Voltage :
380V,415V,440V as Customized
Max.printing size :
1200x2400MM
Speed :
100/150/200 pcs/min
Automatic grade :
Semi automatic
printing color :
1,2,3,4 colors
Weight :
9Tons
Power :
5.5KW
Dimension(L*W*H :
L1340*W1580*H1950mm
Description

Corrugated Cardboard Paper Flexo Carton Box Printing Slotting Making Printer Machine

1. Adopt vacuum absorption, lead edge feeding paperboard, design and manufacturing, the whole operation is humanized design, can be set in a short time, modify, execute, replace, memory function, and accurate display.

2. Al transmission roller material, adopt high-quality steel, balanced correction, running smooth, surface grinding, hard chrome plating.

3. All gear drive, using high-quality alloy steel, heat treatment, grinding.

4.The oil automatic balance device, keeping each unit oil balance.

5. With automatic -returning-zero, record and memory, printing plate cleaned memory, order and dust removal, and other functions, can be selected combined with touch screen PLC control, easy operation.

6.Mesh roller:you can use Metallic or Ceramic Anilox Roller,anilox roller lines select according to user requirements.

Model Unit

SYKM950

-1800

SYKM950

-2000

SYKM950

-2200

SYKM4212

-2200

SYKM4212

-2400
Design speed pcs/min 100/150/200
Economic speed pcs/min 80/130/160
Max.feeding size (mm) mm 950×1800 950×2200 950×2400 1300×2400 1300×2600
Min.size of paperboard mm 260×500 260×500 260×500 260×500 260×500

Min. space of

slotting

 Obverse knife mm 160×160×160×160 160×160×160×160
Reverse knife mm 280×80×280×80 280×80×280×80
Max.depth of slot mm 240 240 240 300 300
Skip feeding size mm 1100×2000 1100×2200 1100×2400 1500×2400 1500×2600
Max.printing area mm² 950×1800 950×2000 950×2200 1250×2200 1250×2400
Plate Thickness mm 7.2 7.2 7.2 7.2 7.2

2colors Cardboard Paper 415V Corrugated Box Printing Machine Flexo Carton Slotting2colors Cardboard Paper 415V Corrugated Box Printing Machine Flexo Carton Slotting
