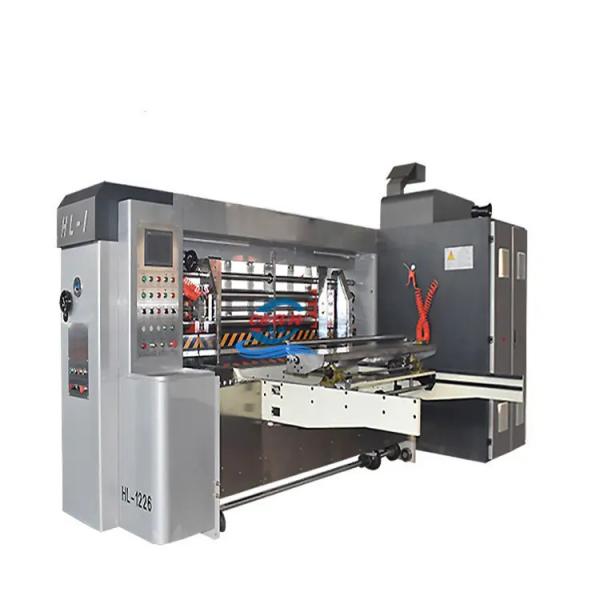

1200mm Flexo Printing Slotting Die Cutting Machine Cardboard Carton Paper Box
1200mm Flexo Printing Slotting Die Cutting Machine Cardboard Carton Paper Box
1200mm Flexo Printing Slotting Die Cutting Machine Cardboard Carton Paper Box
1200mm Flexo Printing Slotting Die Cutting Machine Cardboard Carton Paper Box
Specifications
Brand Name :
DAHUA
Model Number :
SYKM1200-2400
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 set
Price :
usd 25000 - 110000 per set
Payment Terms :
T/T, L/C, D/A, D/P, Western Union
Supply Ability :
50 sets per month
Delivery Time :
25-40 days after deposit
Packaging Details :
PP film wrapped outside
Application :
Pizza Box, Corrugated Package Industrial
Max.printing size :
1200*2400mm
Speed :
100/150/200 pcs/min
Automatic grade :
Semi automatic
printing color :
1,2,3,4 colors
Weight :
9Tons
Power :
5.5KW
Dimension(L*W*H :
L1340*W1580*H1950mm
Description

Corrugated Cardboard Carton Paper Box Flexo Printing Slotting Die Cutting Machine

Lead edge Feeder

► China Famous Brand Komori Seiko Brand
► Touch Screen control the machine
► Automatic alignment function
► Good super extension function and precise paper feeding function
► Variable frequency drive control for vacuum blower fan for increased or decreased vacuum suction to match different size cardboard.
Rotary die Cutter
► International Famous Brand Anvil cover: Germany Depair
► Side to side oscillation of anvil drum(45mm)
► Anvil trimmer to keep surface of the anvil covers flat and smooth.
► The die drum’s transverse movement can prolong the service life of anvil cover.
► The die-cut cylinder lateral register is about±10mm
Printer 1-5 color optional
► Quick set and self locking pull collars.
► Anilox roller LPI according to customer requirement.
► The printing roller axial clearance manual adjustment, adjustment range + 5 mm.
► The printing roller to 360 degrees of digital phase adjustment of the computer electric motor, can be preset digital automatic
adjustment (operation, stop can be adjusted).
► plate rod and the transmission gear with free bond collar, convenient disassembly, maintain long-term printing color accuracy.
Model Unit

SYKM950

-1800

SYKM950

-2000

SYKM950

-2200

SYKM4212

-2200

SYKM4212

-2400
Design speed pcs/min 100/150/200
Economic speed pcs/min 80/130/160
Max.feeding size (mm) mm 950×1800 950×2200 950×2400 1300×2400 1300×2600
Min.size of paperboard mm 260×500 260×500 260×500 260×500 260×500

Min. space of

slotting

 Obverse knife mm 160×160×160×160 160×160×160×160
Reverse knife mm 280×80×280×80 280×80×280×80
Max.depth of slot mm 240 240 240 300 300
Skip feeding size mm 1100×2000 1100×2200 1100×2400 1500×2400 1500×2600
Max.printing area mm² 950×1800 950×2000 950×2200 1250×2200 1250×2400
Plate Thickness mm 7.2 7.2 7.2 7.2 7.2

1200mm Flexo Printing Slotting Die Cutting Machine Cardboard Carton Paper Box1200mm Flexo Printing Slotting Die Cutting Machine Cardboard Carton Paper Box
