2 Ply Fingerless Automatic Corrugated Box Making Machine Vacuum Absorb
2 Ply Fingerless Automatic Corrugated Box Making Machine Vacuum Absorb
Specifications
Brand Name :
Dahua
Model Number :
SF-360,405
Certification :
CE,ISO
Place of Origin :
Hebei,China
MOQ :
1 set
Price :
USD50000-60000 per set
Payment Terms :
T/T, L/C, D/P, Western Union, MoneyGram
Supply Ability :
15 sets per month
Delivery Time :
35-45 days
Packaging Details :
Export standard package
Flute type :
A, B, C, E, F, UV
Heating mode :
steam heating,electric heating
Voltage :
380V 50HZ
Warranty :
1 Year
Corrugated roller :
diameter 360,405
Speed :
150-240 meters/min
Function :
making 2/3/5/7 corrugated cardboard
Product name :
single facer corrugated paperboard machine
Description

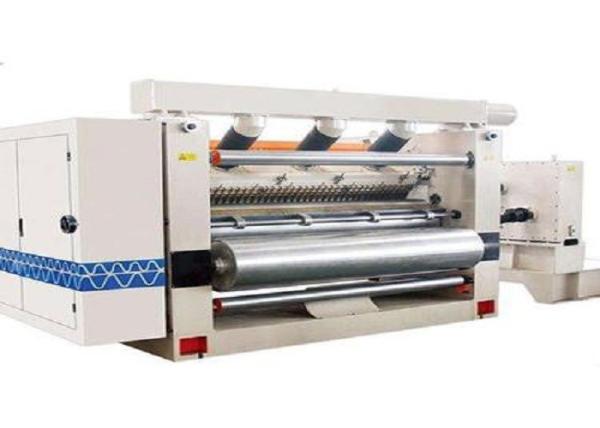

Vacuum Absorb 2 Ply Fingerless Single Facer Corrugated Machine

Flute type: A flute height is 4.7mm

B flute height is 2.75mm

C flute height is 3.75mm

E flute height is1.8mm

If the customer have special requirement,pls tell us.

1. Adopt adsorption in order to transmit cardboard and keep corrugated stably.Corrugated paper are adsorbed into corrugated roller through vacuum box by fans and come into negative pressure zone to finish corrugated.

2. The width of low corrugated roller suction groove no more than 2mm, can reduce corrugated cardboard stripe marks of single facer.

3. Cardan transmission, separating with vibration source, drive more stably, running reliable,simple maintenance.

4. Reduction box adopts oil lubrication, close style gear transmission, reduce the machine vibration.

5. Adopt auto-cycle supplying glue, pneumatic gluing and resetting with buffered effect.

6. Glue roller surface be special anilox engraved and chrome plating.

7. Upper and lower corrugated roller are made of 48CrMo high quality alloy steel, after heat-treatment. The rigidity is HRC56-60°,the surface are whetted and chrome plating.

Part name

 Specification Material Surface treatment
Corrugated roller Main roll￠405mm 50CrMAo Tungsten carbide treatment
Pressure roller ￠495mm 45＃ steel Hardened round grinding chrome plating polishing
Glue roller ￠320mm 45＃ steel Round grinding and pressing pit mesh chrome plating
Fixed paste roller ￠175mm 45＃ steel Round grinding chrome
Preheat roller ￠400mm Q235B Round grinding chrome
Paper guide roller ￠110 mm 45＃ steel Round grinding chrome
