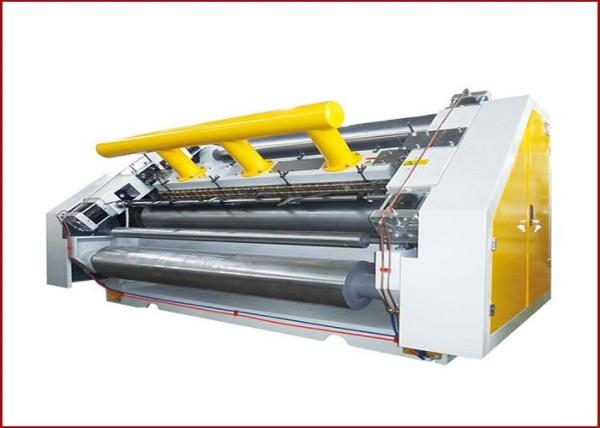

B Flute Single Facer Corrugated Cardboard Production Line 80 Meters/Min
B Flute Single Facer Corrugated Cardboard Production Line 80 Meters/Min
Specifications
Brand Name :
Dahua
Model Number :
SF-280B
Certification :
CE,ISO
Place of Origin :
Hebei,China
MOQ :
1 set
Price :
USD 15000 - 50000 per set
Payment Terms :
T/T, L/C, D/P, Western Union, MoneyGram
Supply Ability :
30 sets per month
Delivery Time :
25-40 days
Packaging Details :
PP film fixed in container
Flute type :
A, B, C, E, F, UV
Heating mode :
steam heating,electric heating
Voltage :
380V 50HZ
Warranty :
1 Year
Corrugated roller :
diameter 280
Speed :
60-80 meters/min
Function :
making 2 ply corrugated cardboard
Product name :
single facer corrugated cardboard machine
Description

B Flute Single Facer Corrugated Cardboard Machine Corrugator Machine

B Flute Single Facer Corrugated Cardboard Production Line 80 Meters/Min

Functional features
  • 1. The single facer machine is vacuum suction type, make flute with good quality, wind amount is adjustable.
  • 2. Glue roller and doctor gluer roller can be sided on rail, convenient to dismounting and install.
  • 3. Gimbal connect independent gearbox with roller to drive machine, drive more stable and reliable, easy to maintain. Closed oil-immersed gear box, machine reduce vibrator.
  • 4. Upper corrugator roller, pressure roller and glue roller up down controlled by pneumatic.
  • 5. Upper and lower corrugated roller made from 48CrMo alloy steel with heat treatment, hardness 50-55 degree, surfaced be grinded and chrome plated.
  • 6. Pressure roller made from 45# steel, precision grinded with chrome plated, crowning deign in middle, prolong use life.
  • 7. Bearing of corrugated roller and pressure roller be lubricated by high temperature grease
  • 8. Glue width adjust by motorized or manual
  • 9. Glue section can drive separately when main motor stop, prevent glue is dry. (option configuration)
  • 10. Glue amount adjusted by manual, electric adjust option as customized

Technical parameter:

Working Width 1600mm 1800mm 2000mm 2200mm
Heating method Oil heating / Steam heating/electrical heating
Design speed 80m/min
Economical speed 45-60 m/min
Compress-air pressure 0.4-0.9MPa
Flute type Standard flute UV Flute
Standard spec. A,B,C,E,F
For other type and model, we can produce as customer’s requirement.
Corrugated roll diameter (mm) 280
Wall Thickness (mm) 130
Type Vacuum Absorb
Roller material 50CrMo alloy, Heat treated
Machine Size (mm) 3300*1300*1700 3550*1300*1700 3800*1300*1700 4050*1300*1700
