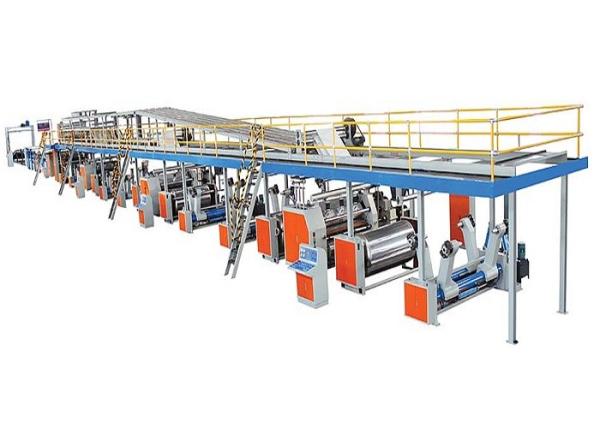

3 5 7 Layers Corrugated Cardboard Production Line Automatic
3 5 7 Layers Corrugated Cardboard Production Line Automatic
Specifications
Brand Name :
Dahua
Model Number :
WJ-150-2000
Certification :
CE,ISO,SGS
Place of Origin :
China , Hebei , Dongguang
MOQ :
1 unit
Price :
negotiable
Payment Terms :
T/T, L/C, D/P, Western Union, MoneyGram, D/A
Supply Ability :
120 units per year
Delivery Time :
70 - 90 days
Packaging Details :
Standard Export Package
Function :
produce 3 / 5 / 7 Layers Corrugated Cardboard
width :
1600mm,1800mm,2000mm,2200mm,2500mm
Flutes :
A,B,C,E,F,S flute type for customized
Work Speed :
From 120 to 200 meters / min for customized
Voltage :
380V 50HZ or customized
Service :
For whole process till the line running
Warranty :
1 year since line running
After Warranty Service :
Online support,Video technical support,free spare parts,Field commissioning and training,field maintenance and repaire service,Engineers available to service machinery overseas.
Description

Automatic High Speed 3 5 7 Layers Corrugated Cardboard Production Line

Purpose and Characteristics:

Complete corrugated paperboard production line is compose of shaftless mill roll stand, fingerless type single facer( vacuum suction type), preheater, double bridge,gluer machine, double facer machine, cut off machine, slitter scorer machine, stacker and glue making system.Our company to absorb advanced technology from other countries, we get feed back from our users and on the base of our experience more than 20 years for develop the new production. The feature of our machine:high automatization,easy operation & maintenance,high efficiency, good quality of paperboard, compact structure and nice appearance.

3 5 7 Layers Corrugated Cardboard Production Line Automatic

Design seed :150m/min Economic speed:80-120m/min
Serial No. Equipment name

Qty.

(set)

 remarks
1

Hydraulic mill roll stand

5 Include paper feeding small car and ground track,with expansion nip head,pneumatic brake
2 double layers heavy type over bridge conveyor 1 with adsorption tension,electric deflection-corrected
3 Floor pre-heater

4

 diameter 1000mm,electric wrap angles
4 Adsorb heavy type single facer 2 Corrugated roller diameter 320,material 48CrMo alloy roller,Flute types :ABCE for option, gimbal drive,frequency conversion control,glue quantity adjust by electric,auto gluing,quick hanging change rollers,heavy type square wallboard
5 Triplicate pre-heater 1 diameter 1000mm,electric wrap angles
6 Double gluer machine 1

press roller pneumatic,frequency

conversion control(10 inch touch screen),glue adjustment by electric
7 Double facer 1

Hot plate 600mm,20pcs,heavy type body

frame,double pneumatic tension,adopt touch press plate complex with press roller compression device,the pressure can adjust,contain 6 pcs of touch press plates,hydraulic lift up and down,manual and automatic deflect correction each one set,

the cooling section adopt concentrated press roller,transport belt:Shenyang brand

Main drive:the belt roller surface with rubber coating,upper roller diameter: 904mm;lower roller diameter:646mm,contains 75kw frequency convertion motor,gearbox underoil
8

Thin blade

slitter scorer

 1 5 blades 8 lines,alloy knives
9 NC.cutoff with spiral blade 1 Servo computer servo control,automatic sheet change,cut range 500-9999mm.
10 Single layer Right-angle sheet output stacker machine 1 unit

Include transport worktable 2 sections,transport output car 2 sets,auto count,electric output
11 Glue making system 1 unit Glue making station,electric glue making,auto glue feeding,electric circle
12 Electric control system 1 unit Control cabinet 5 pcs,all adopt name brand Zhengtai, Delixi electric elements,with touch screen
13 Steam system 1 unit High quality name brand water leading valve,break valve,piezometer,not contain boiler
14 Air system 1 unit 1.5m3 air store tank,0.6m3/7.5kw air compressor

3 5 7 Layers Corrugated Cardboard Production Line Automatic

3 5 7 Layers Corrugated Cardboard Production Line Automatic

Tell us your produce demand and workshop space,other things we do!!!

we will supply full set of technical support till normally corrugated cardboard production.
