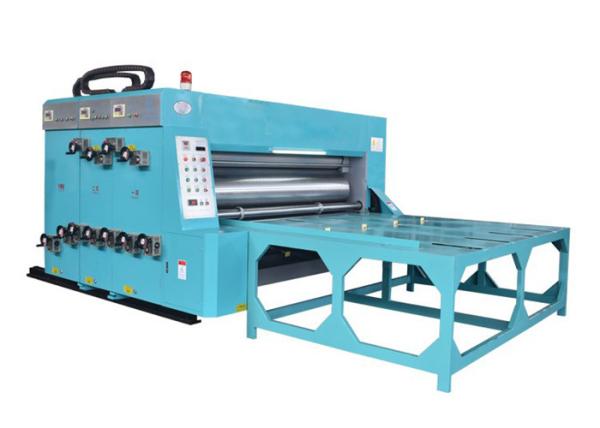

Corrugated Carton Box Printing Slotting Machine With Doctor Blade
Corrugated Carton Box Printing Slotting Machine With Doctor Blade
Corrugated Carton Box Printing Slotting Machine With Doctor Blade
Corrugated Carton Box Printing Slotting Machine With Doctor Blade
Specifications
Brand Name :
Dahua
Model Number :
ZYKM series
Certification :
CE,ISO
Place of Origin :
Hebei,China
MOQ :
1 Set
Price :
USD 20000 - 80000 per set
Payment Terms :
T/T, L/C, D/P, Western Union, MoneyGram, D/A
Supply Ability :
30 sets per month
Delivery Time :
35-45 days
Packaging Details :
Export standard package
Automatic grade :
Automatic
Feeding way :
Independent Lead Edge Feeder
Voltage :
220v/380/440v
Warranty :
1 Year
Name :
Automatic Corrugated Box Making Machine
Weight :
13T-25T
Usage :
Corrugated carton box printing forming
Printing :
1,2,3,4 colors for optional
Description

Corrugated carton box printing slotting machine with doctor blade

Lead edge feeding part:

1. Lead edge feeding system , easy operation and accurate

2. 7.5kw high pressure centrifugal ,frequency converter control blower pressure to ensure feeding warp cardboard exactly

3. Position of Right and left side apron is adjusted by electric with screw drive

4. Front apron lower and upper gap is sync adjustment

5. Skip feeding device , you can choose this as your request to ensure large size cardboard can be processed

6. Install 7.5 inch touch screen and can show productivity number and speed and also to set speed

7. Slotting die-cutting part with chain control switch and it can realize stop or start feeding

Printing part:

1. Phase 360°electrical adjustment (planetary gear )

2. Roller axial position is adjusted electrically and manually , left and right movement 10mm

3. Excellent metal anilox roller made by professional manufacturer

4. Rubber roller made by professional manufacturer and ensure ink quality

5. Supply ink cycling pneumatically

6. You can choose ceramic roller

7. Whole roller with hang lath which is standard

8.Ceramic roller and doctor blade

Product parameter

Item unit 480×2400
Feed paper size mm 1450×2400
Effective printing mm 1400×2000
min. printing size mm 400×720
printing plate thickness mm 7.2
Top speed Sheets/min 100
economic speed Sheets/min 80
Precise color precision mm Four color±0.75
Slot precision mm ± 1.5
Min. slot interval mm Positive knife 170×170×170×170opposite knife 260×90×260×90
