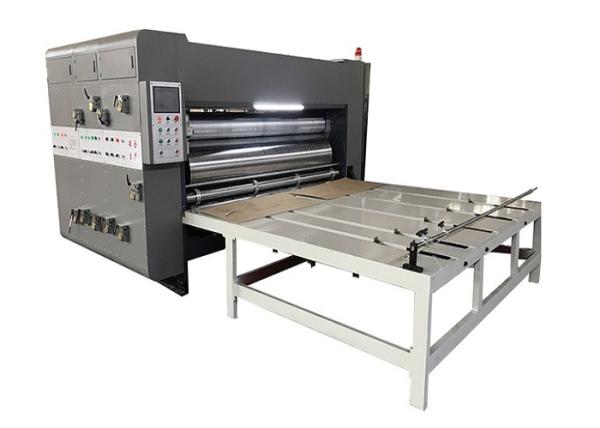

Semi Auto Die Cut Printer Machine For Carton Manufacturing Plant
Semi Auto Die Cut Printer Machine For Carton Manufacturing Plant
Specifications
Brand Name :
Dahua
Model Number :
SYKM420-2500
Certification :
CE,ISO
Place of Origin :
Dongguang
MOQ :
1 set
Price :
usd15000 - 50000 per set
Payment Terms :
T/T, L/C, D/P, Western Union, MoneyGram, D/A
Supply Ability :
50 sets per month
Delivery Time :
25-40 days
Packaging Details :
PP film wrapped Export standard package in FCL
Feeding way :
Worktable Chain feeding
Power :
5.5KW
Voltage :
380V 50HZ
Max.printing area :
1200x2500
Printing color :
1,2,3,4 for choice
Speed :
60 pcs/min
Warranty :
1 Year
Usage :
cardboard box making machine,box machine
Description

Semi Auto Die Cut Printer Machine Carton Box Making Machine For Carton Manufacturing Plant

  1. This machine feeds single piece of cardboard by hand.
  2. Design speed is 70pcs/min.
  3. It can finish multi-process in one time,such as corrugated cardboard printing,corner cutting,slotting,line pressing,edge cutting etc.(can match hole,handle mould).
  4. Main driving gear adopt abrasion resistant material ductile or 45# good quality steel,high hardness of nitriding after shaving(quenching is easy to deform).
  5. Adopt fully automatic spray lubricate.Skewed tooth transmission,automatic spray lubricate,long using life.
  6. This machine is 360 degree planetary electric
  7. phase adjustment,can adjust the printing and slotting position at any time,save the time and improved printing precision and production efficiency.
  8. Printing,slotting,die-cutting each unit adopt pneumatic lock tightly,electric clutch,when separate automatic brake to ensure the postion of printing slotting not change.Easy operation,clear and accurate printing.
  9. All parts of the machine are made of CNC machining center and numerical control machine tool precision production,make the whole machine overprinter accuracy,long using life.
  10. Tubes and plates are tempered at high temperatures,keep the machine body in shape,high stability.
  11. All functions of the machine are electrically controlled by buttons,and digital input makes adjustment convenient and easy to operate.

Model Max sheet (mm) Printing area (mm) Work Speed (Piece/min) Main power (kw) Paperboard thickness
SYKM420-2400 1300*2500 1300*2400 0-60 4.0 2-11mm
SYKM 420-2600 1300*2700 1300*2600 0-60 4.0 2-11mm
SYKM 420-2800 1300*2900 1300*2800 0-60 4.0 2-11mm

Semi Auto Die Cut Printer Machine For Carton Manufacturing Plant

Semi Auto Die Cut Printer Machine For Carton Manufacturing Plant

Semi Auto Die Cut Printer Machine For Carton Manufacturing Plant

Semi Auto Die Cut Printer Machine For Carton Manufacturing Plant
