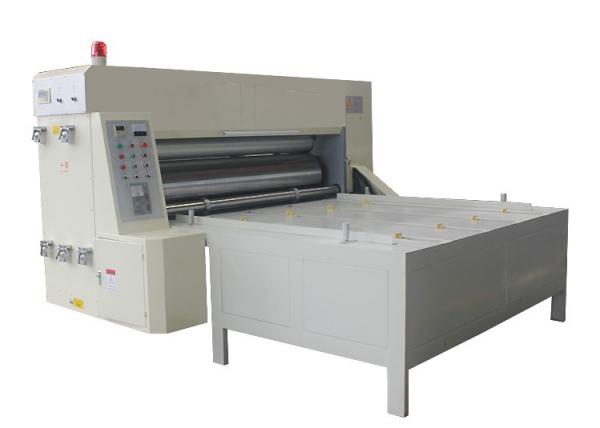

Semi Automatic Corrugated Carton Box Roller Die Cutting Machine
Semi Automatic Corrugated Carton Box Roller Die Cutting Machine
Specifications
Brand Name :
Dahua
Model Number :
MQJ-2500
Certification :
CE,ISO
Place of Origin :
Dongguang
MOQ :
1 set
Price :
USD 10000 -25000 per set
Payment Terms :
T/T, L/C, D/P, Western Union, MoneyGram, D/A
Supply Ability :
30 sets per month
Delivery Time :
25-40 days
Packaging Details :
PP film wrapped outside&fix in container
Automatic Grade :
Semi-automatic
Voltage :
220V/380V/440V
Power :
5.0kw
Dimension(L*W*H) :
4500*2800*2000
Weight :
6 Tons
After-Sales Service Provided :
Overseas Third-Party Support Available
Type :
Carton Packaging Machinery
Function :
corrugated carton making machine
Description

Semi Automatic Corrugated Carton Box Roller Die Cutting Machine Description:

1. Chain type hand move feeding cardboard
2. Adopt 360 degree electric ensure and adjust position ,while working or stop can be adjust quickly and accurately
3. When machine stopped working ink roller can automatic separate with printing roller facer in order to protect it ,
4. Ink roller have the separately turn device to prevent ink dried when machine stopped working
5. Adopt pneumatic locking ,electric separation
6. Ink supply by pneumatic diaphragm pump
7. Main transmission gear made by 45 steel after high frequency quench
8. Transmission part adopt sprinkle lubricating system ,ensure the machine precise and long use time .

Technological parameter

Model BYK1426
Roller diameter (mm) 480
Max sheet size(mm) 1000*2200
Max printing size(mm) 1400*2600
Min sheet size(mm) 400×800
Max die cutting area(mm) 1400*2550
Working speed( pcs/min) 0-60
Printing precision(mm) ±0.5
Standard plate thickness(mm) 4-6
Sheet thickness(mm) 2-10mm
Power (kw) 11.0kw
Wallboard thickness(mm) 40mm

Semi Automatic Corrugated Carton Box Roller Die Cutting Machine

Semi Automatic Corrugated Carton Box Roller Die Cutting Machine

Semi Automatic Corrugated Carton Box Roller Die Cutting Machine
