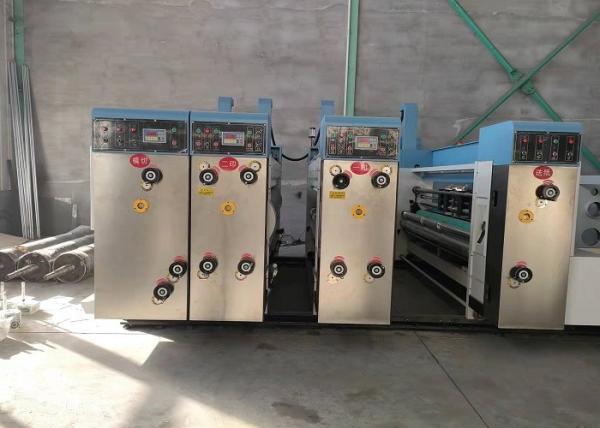

Corrugated Flexo Printing Slotting Die Cutting Machine 2 3 4 Color Cardboard Box
Corrugated Flexo Printing Slotting Die Cutting Machine 2 3 4 Color Cardboard Box
Corrugated Flexo Printing Slotting Die Cutting Machine 2 3 4 Color Cardboard Box
Corrugated Flexo Printing Slotting Die Cutting Machine 2 3 4 Color Cardboard Box
Corrugated Flexo Printing Slotting Die Cutting Machine 2 3 4 Color Cardboard Box
Corrugated Flexo Printing Slotting Die Cutting Machine 2 3 4 Color Cardboard Box
Corrugated Flexo Printing Slotting Die Cutting Machine 2 3 4 Color Cardboard Box
Corrugated Flexo Printing Slotting Die Cutting Machine 2 3 4 Color Cardboard Box
Corrugated Flexo Printing Slotting Die Cutting Machine 2 3 4 Color Cardboard Box
Corrugated Flexo Printing Slotting Die Cutting Machine 2 3 4 Color Cardboard Box
Corrugated Flexo Printing Slotting Die Cutting Machine 2 3 4 Color Cardboard Box
Corrugated Flexo Printing Slotting Die Cutting Machine 2 3 4 Color Cardboard Box
Specifications
Brand Name :
DA HUA
Model Number :
405,480
Certification :
CE,ISO,SGS
Place of Origin :
Hebei,China
MOQ :
1 set
Price :
USD 19900 - USD60000 per set
Payment Terms :
T/T, L/C, D/P, Western Union, MoneyGram
Supply Ability :
15 sets per month
Delivery Time :
30-50 days
Packaging Details :
wooden case container
Automatic grade :
Full automatic
Speed :
100-150 pcs / min
Control system :
PLC+Touch Screen
Voltage :
440/380/220V
Power :
18KW
Weight :
12000KGS
Dimension(L*W*H) :
12*4.8*2.7m
Warranty :
1 Year
Description

Flexo corrugated cardboard 2 3 4 color printing slotting die-cutting machine / Cardboard box printer slotter die cutter

1.The lead edge feeder adopts the high quality cam mechanism control so that curved cardboard can be accurately transmitted.

2.Frequency converter control main motor safer and more energy saving.

3.Repeated orders can be stored and recalled by PLC control, easy and fast to set-up orders, and more convenient to operate. Dedicated computer control desk is provided.

4.The machine is also equipped with an automatic lubrication system that keeps the lubricant levels in all of units uniform at all times.

5.With the function of automatic locking , convenient and fast.

6. All units of the machine can be separated automatically or manually, and an audible alarm sounds during the opening and closing for safe operation.

7.All gears train have been quenched with high frequency and elaborate milling.

8.All gears and shaft with expansion sleeve type keyless connection mechanism, to avoid central wear, so that the printing machine can maintain a long life overprinter accuracy.

Model
405
480
Speed
180/min.
160/min.
Max. Feeding size
1200*2200/2400/2600mm
1400*2400/2600/2800mm
Min.feeding size
350*680mm
380*680mm
Max.printing size
1200*2000/2200/2400mm
1400*2200/2400/2600mm
Max.die cutting size
1200*2150/2350/2550mm
1400*2350/2550/2750mm
Standard printing plate
4-9mm
4-9mm
Corrugated board
2-12mm
2-12mm
