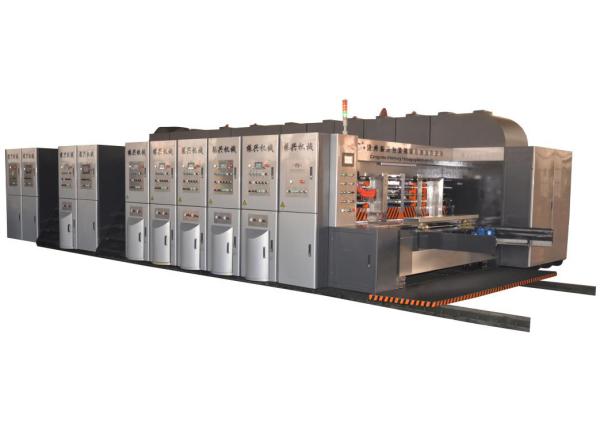

Cardboard feeding unit(Germany servo motor drive,one unit):

• After all the units closed, each part is pneumatic locked. There is also lead locked cylinder which can make each part locked with bottom-track lock. If the cylinder is not locked, the main motor will not work.
• The lead edge feed unit is servo motor control system, Rexroth brand make in Germany,with long life and no noise,running with high feeding accuracy for all the machine lift.and servo model feeding not corrugate board thickness and strength damage.
• Wind absorbing auxiliary paperboard feeding, can make the cardboard feed favoringly. The volume of the wind can be adjusted accord the camber of the paperboard.
• No pressure type feeding table,corrugate board go inside machine without thickness and strength decrease.

The printing Unit:

• The ceramic roller is steel pipe cover with ceramic,with laser cutting the ink hole.
• Ceramic roller customer can chose 400-800Dpi accord printing requirement.
• closed cavity of doctor blade with Four fluorine environmental protection layer,can prevend any sticky.
• can use 80-130 Lpi printing plate to printing.
• double direction ink pump to give ink to roller,stable ink and with improve printing quality.
• cup to prevent the ink splashing. Steady inking and easy to maintain.
• Have ink dust gauze,make the ink more clear,improve the printing effect.

• With ink sensor in the machine,when ink level low,will warning and save the corrugate waste without ink printing.

The dryer system(Germany servo motor drive,14.m width):

• This unit used for the ink and water base oil after printing dry quickly,adopt infrared drier for dry the ink and water base oil coating,in this unit the corrugate board with vacuum transmission,ceramic wheels and vacuum blower working,high precision and long transmission distance,can make the ink or water base oil sufficient dry out.increasing the printing quality and machine working speed.

The water base oil coating unit:this unit exactly same printing unit.

The die-cutting unit(Germany servo motor separate drive):

• Rubber anvil roller is steel material,the surface is grinded and hard chromium plating.
• The rubber anvil roller after balance correction.
• Rubber anvil adopt fastening-type excellent rubber.Easy to install and uninstall. Long service life,can be cutted 4million to 6million times.
• Adopting hydraulic control the position move left and right of the rubber cushion roller.The movement distance is 40mm. This structure makes the rubber covers equally wear,which can increase the use time.
• The die roller is steel material,the surface is grinded and hard chromium plating.After balance correction.

The Vibrate scrap remover:

• With motor independent drive for running.

• Square shaft with belt running for take out the scrap.

• With arm to connect with the die cutting unit,arm can lift and down,eady adjust.

• Belt with table can take out the scrap from the side of the machine.

• With blower for push the waste.
