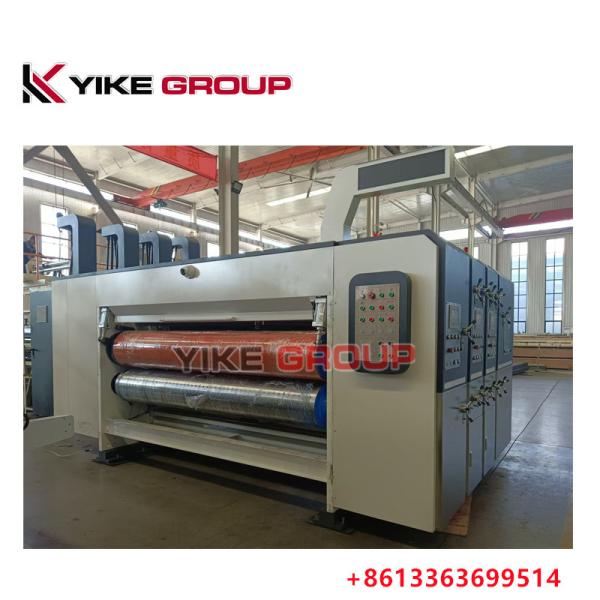

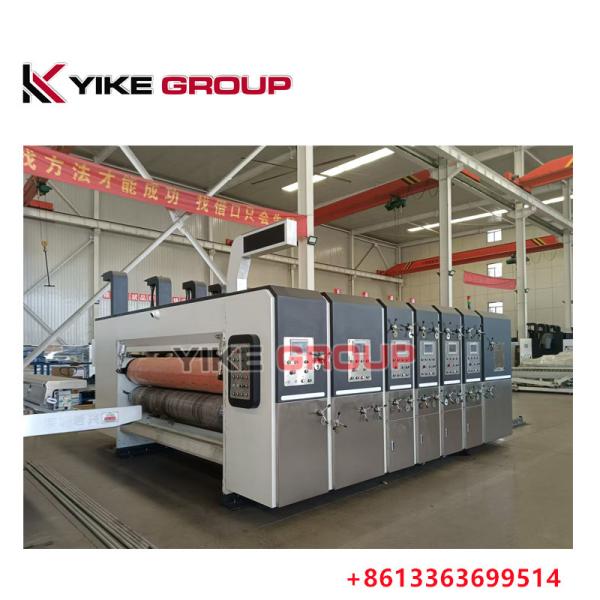

900x2200mm Flexo Printer Slotter Machine 150 pcs/min For Carton Box Printing

1. Feeder Unit

Lead-edge Feeding System

• Front baffle adjust the position of the upper and lower intervals synchronization by manual.
• Skip-feeding devices, could select skip-feeding according to needs. To ensure that large-scale cardboard can also be processed.
• Install 7” touch screen, could automatically display the production quantity, production speed, and set the production quantity and every operating.
• Slotting part is equipped with the interlock switch, to achieve the emergency stop, stop feeding or feeding.

• With printing plate, outer diameter φ300mm
• High quality steel production, surface grinded, hard chromium-plated. Static balance adjustment, stable operation, suitable for high speed running
• Roller horizontal direction and circumferential direction with datum line, convenient for align plate
• Fixed coil axis, suitable for standard hanging slats, realize rapid change plate
• Electric 360° adjust printing roller, automatic digital display adjustment, remember store digital.
• Installed with foot switch to control plate roller reversing, convenient change plate
• Auto-zero function, order memory.
• Printing roller plate-change and fix-plate function.
• Printing roll axial is adjusted left and right by manual, maximum movement left and right 10mm,auto-zero instruction.

Pressing Roller

• Adopt high quality seamless delicately processing, dynamic balance adjustment, stable operation
• Diameter φ175mm, surface grinded, hard chromium-plated
• Gear adopt backlash adjustment mechanism, adjustment none-affect gear enunciation, guarantee transmission accuracy
• Printing roller can be adjusted for a distance 0-12mm
• pressing roller, feeding shaft can be adjusted by manual , and loose and tight the roller also by manual.

3. Slotting Unit

• Single-axle double-knife slotter, use Internal tooth structure adjutment the height of box, So that oil does not easily contaminated cartonsThe first pressure line round, after preloading cardboard not easily crush
• The above press round Urethane appearance package, will not damage the cardboard
• The slotter knife stock use traverse mechanism, screw with linear guide, to move more flexible and precise
• Slotting phase and box height, computer and electric digital control
• Preload, creasing gap adjustment adopt computer and electric digital control
• The slotter knife stock gap adjustment adopt self-locking structure
• There's the elastic corner-cutting knife. Can cut three, five, cardboard without adjusted.
• Preload wheel, creas wheel, slot knife traverse position computer and electric digital control
• The slotter knife adopt Anti-knife manner
• Computer automatic arrange knife, can stockpile 999 memories

4. Die-cutting Unit

• Rubber roller mechanical spiral commutation 40mm move about horizontal structure
• Die-cutter phase, computer and electric digital control
• Horizontal phase, computer and electric digital control, range ±5mm
• Rubber roller and die roller gap use computer and electric digital control,
• Adjust the transfer roller use computer and electric digital control,
• The rubber roller compensated by motor-driven,control the speed of thr rubber roller, range ±3mm
• Rubber roller hsiuping cutting structure, keep rubber surface roughness
• Stripping the belt longitudinal output,to easy clean waste paper.
