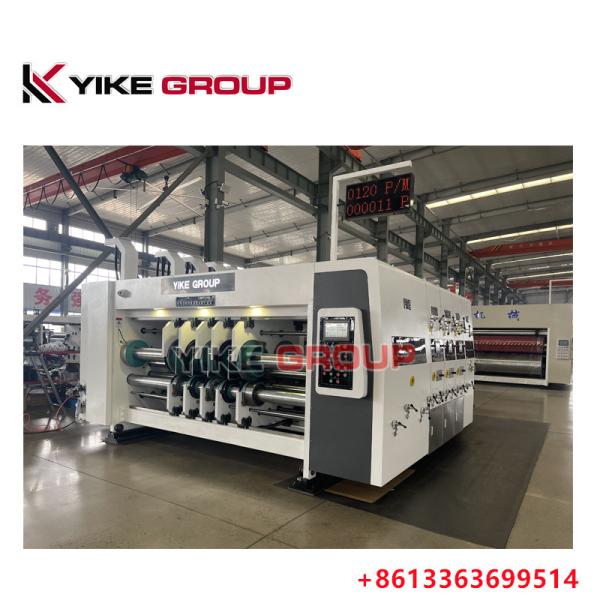

Automatic Lead Edge Feeder Four Color Flexo Printer Slotter Machine For Regular Carton Boxes

General Features

• All the transmission axles are passed through the dynamic balance and balance corection.
• The whole process adopts vaccuum absorption, scroll wheel feeding, adjusting the airflow regularly to ensure the accuracy.
• Driving gears are made of 40Cr high quality steel, high frequency grinding and heat treatment, the hardness is above 60.
• With automatic zero setting and reset fuction.
• Adopting gear lubricant, balance device to keep the lubricant in each unit at the same height.
• With automatic zero setting and reset function.
• Independent computer momtorized for open and close actions ensure operator safety.
• Each working unit is motoerized for open and close action, last warning bell, rubber roller and anilox roller.
• Self lock system is adopted for the gap adjustment on pull roller, press roller and anilox roller.

Specification

General Introduction

Lead-edge Feeding System

1. Lead-edge suction feeding system, easy operation, high accuracy, (adopts lead feeder system).
2. 7.5KW high pressure centrifugal fans, according to the cardboard warping degree of frequency control pressure, to ensure warp cardboard or thin cardboard high-speed accurate transmission.
3. Left and right side baffle position electrically adjustable,screw-driven.and can remember by computer.
4. Front baffle adjust the position of the upper and lower intervals synchronization by manual.
5. Skip-feeding devices, could select skip-feeding according to needs. To ensure that large-scale cardboard can also be processed.
6. Install 7” touch screen, could automatically display the production quantity, production speed, and set the production quantity and every operating.
7. Slotting part is equipped with the interlock switch, to achieve the emergency stop, stop feeding or feeding.​

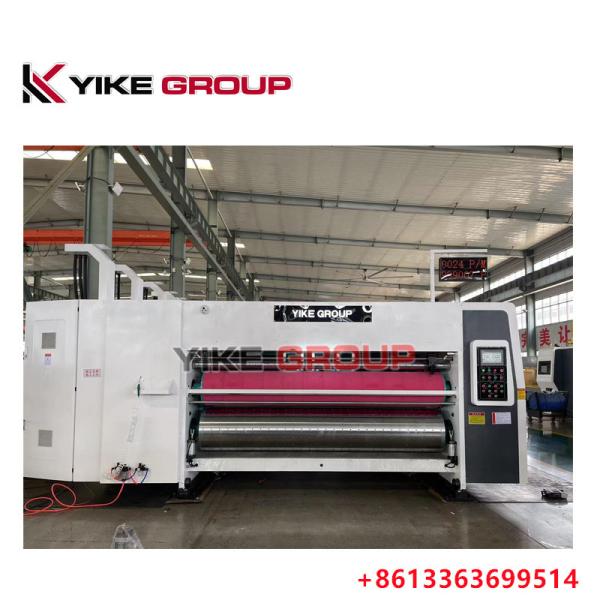

Pressing Roller

1. Adopt high quality seamless delicately processing, dynamic balance adjustment, stable operation
2. Diameter φ175mm, surface grinded, hard chromium-plated
3. Gear adopt backlash adjustment mechanism, adjustment none-affect gear enunciation, guarantee transmission accuracy
4. Printing roller can be adjusted for a distance 0-12mm

Rubber Roller

1. Outer diameter φ200mm
2. Rubber roller adopts Guangdong Jingyang.
3. Overrunning clutch and automatic idling device, to prevent the ink dried
4. Rubber roller drum type middle part higher, to ensure ink quality
5. Rapid spaced spinner self-locking device, ensures uniform ink

Slotting Unit

1. Single-axle double-knife slotter, use Internal tooth structure adjutment the height of box, So that oil does not easily contaminated cartons
2. The first pressure line round, after preloading cardboard not easily crush
3. The above press round Urethane appearance package, will not damage the cardboard
4. The slotter knife stock use traverse mechanism, screw with linear guide, to move more flexible and precise
5. Slotting phase and box height, computer and electric digital control
6. Preload, creasing gap adjustment adopt computer and electric digital control
