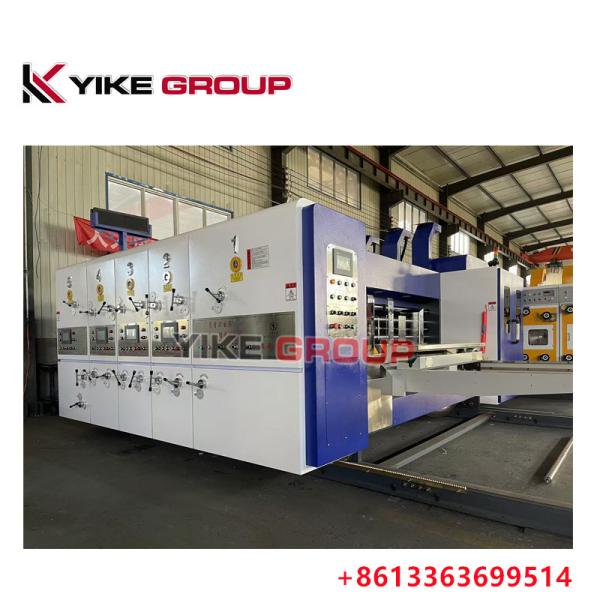

High Speed 150Pcs/Min Lead Edge Flexo Printer Slotter Die Cutter Machine For Corrugated Carton Box Printing

Whole Machine Fuction

• Each unit is controlled by PLC, color touch screen display operation content,computer management order and storage order, switching order fast, easy to operate.
• Important parts of the whole machine are aging treatment,tempering to eliminate internal stress andthe use of high-precision machining center for production, CNC grinding machine.
• The whole shaft roller is made of high quality steel after tempering treatment, grinding, high precision computer dynamic balance correction, hard chromium plating on the surface.
• The whole machine transmission gear are used by 20CrMnTi steel alloy, carburizing and quenching treatment, hardness HRC58-62, bygrinding machining up to 6 grade precision, ensure the use of long term high overprinter precision.
• The transmission parts o fthe whole machine adopt the key link to ensure the accuracy of the transmission.
• Die cutting unit with an independent servo drive, effectively improve the precision of the die cutting

General Introduction

Lead-edge Feeding System

1. Lead-edge suction feeding system, easy operation, high accuracy, (adopts lead feeder system).
2. 7.5KW high pressure centrifugal fans, according to the cardboard warping degree of frequency control pressure, to ensure warp cardboard or thin cardboard high-speed accurate transmission.
3. Left and right side baffle position electrically adjustable,screw-driven.and can remember by computer.
4. Front baffle adjust the position of the upper and lower intervals synchronization by manual.
5. Skip-feeding devices, could select skip-feeding according to needs. To ensure that large-scale cardboard can also be processed.
6. Install 7” touch screen, could automatically display the production quantity, production speed, and set the production quantity and every operating.
7. Slotting part is equipped with the interlock switch, to achieve the emergency stop, stop feeding or feeding.​

Printing Roller

1. With printing plate, outer diameter φ420mm.
2. High quality steel production, surface grinded, hard chromium-plated. Static balance adjustment, stable operation, suitable for high speed running.
3. Roller horizontal direction and circumferential direction with datum line, convenient for align plate
4. Fixed coil axis, suitable for standard hanging slats, realize rapid change plate.
5. Electric 360° adjust printing roller, automatic digital display adjustment,remember store digital.
6. Installed with foot switch to control plate roller reversing, convenient change plate.
7. Auto-zero function,order memory.
8. Printing roller plate-change and fix-plate function.
9. Printing roll axial is adjusted left and right by manual,maximum movement left and right 10mm,auto-zero instruction.

Slotting Unit

1. Single-axle double-knife slotter, use Internal tooth structure adjutment the height of box, So that oil does not easily contaminated cartons
2. The first pressure line round, after preloading cardboard not easily crush
3. The above press round Urethane appearance package, will not damage the cardboard
4. The slotter knife stock use traverse mechanism, screw with linear guide, to move more flexible and precise
5. Slotting phase and box height, computer and electric digital control
6. Preload, creasing gap adjustment adopt computer and electric digital control

Die-cutting Unit

1. Rubber roller mechanical spiral commutation 40mm move about horizontal structure
2. Die-cutter phase, computer and electric digital control
3. Horizontal phase, computer and electric digital control, range ±5mm
4. Rubber roller and die roller gap use computer and electric digital control,
5. Adjust the transfer roller use computer and electric digital control,
6. The rubber roller compensated by motor-driven,control the speed of thr rubber roller, range ±3mm
