YIKE GROUP Semi Auto Pressure Folder Gluer Machinery For Making Carton Box Machine
YIKE GROUP Semi Auto Pressure Folder Gluer Machinery For Making Carton Box Machine
YIKE GROUP Semi Auto Pressure Folder Gluer Machinery For Making Carton Box Machine
YIKE GROUP Semi Auto Pressure Folder Gluer Machinery For Making Carton Box Machine
Specifications
Brand Name :
YIKE GROUP
Model Number :
YK-1800
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 Set for Folder Gluer Machine
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
Folder Gluer Machine 50 Sets Per Month
Delivery Time :
3 Months for Folder Gluer Machine
Packaging Details :
Folder Gluer Machine Packages by Plastic Film
Item :
Folder Gluer Machine
Size :
1800mm
Weight :
1800KG
Power :
380V, 3KW
Automatic grade :
Semi-Automatic
Packaging type :
Film
After-sales service provided :
Online support
Description

CHINA YIKE GROUP CO.,LTD

WEB: www.yikegroup.net

Email: info@yikegroup.net

WhatsApp: +86 17743859771

Semi-Automatic Pressure Folder Gluer Machine For Making Carton Box Machine

I. Introduction

  • YK type semi automatic pressing type gluing machine.
  • Small and medium-sized orders, according to user needs of heterosexual carton, carton production of the latest research and development of new environmental protection equipment.

II. The Structure Of This Machine

  • Paper feeding table
  • A conveying device
  • Grinding device
  • Coating device
  • Conveying device
  • Pressing device
  • Electrical control device

  • 2 gluer unit, 1 polish unit

III. Charcteristics

  • Save the glue, the glue quantity is only equivalent to manual gluing 1 / 3
  • Artificial equipment, a maximum speed of 56 M / min, efficiency is the manual operation of the 3-4 times.

IV. Specification

Linear velocity 0~400m/min
Suitable paper quality 220~800g/m² carton paper and E wave corrugated paper
Paste box basic form One-side edge pastes, two-side edge pastes.
Feeding way Automatically and continuously feeding
Adhesive Solute type
Needed power 380V 3KW
Weight 1800KG
Overall Size 5500×1000(1400)×1300mm
The scope of Count 0~999999

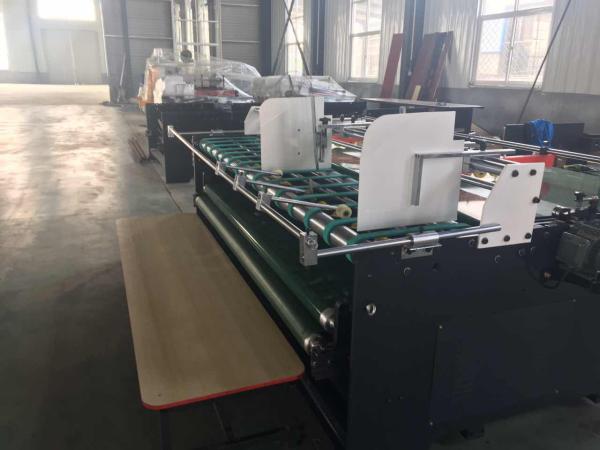

V.100% Real Photos

YIKE GROUP Semi Auto Pressure Folder Gluer Machinery For Making Carton Box Machine
