Semi Auto Folder Gluer Machine 40-60m/min Speed For Corrugation Packing Industry
Semi Auto Folder Gluer Machine 40-60m/min Speed For Corrugation Packing Industry
Specifications
Brand Name :
YIKE GROUP
Model Number :
YK-2400
Certification :
ISO,CE
Place of Origin :
China
MOQ :
1 Set for Folder Gluer Machine
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
Folder Gluer Machine 50 Sets Per Month
Delivery Time :
3 Months for Folder Gluer Machine
Packaging Details :
Folder Gluer Machine Packages by Plastic Film
Item :
Folder Gluer Machine
Size :
2800mm
Automatic :
Semi-Automatic
Use :
Packaging Carton Boxes
Speed :
40-60m/min
Power :
4kw
Description

CHINA YIKE GROUP CO.,LTD

WEB: www.yikegroup.net

Email: Anna@yikegroup.net

WhatsApp: +86 13363699514

Corrugated Box Semi-Auto Folder Gluer Machine Used For Corrugation Packing Industry

1. Fetures

  • This machine is designed of manual folding and feeding, automatic glue application.
  • Working table up and down automatically. It is controlled by photoelectricity facility with features of convenience and easy operation.
  • Glue application assembly and both side block can be moved for adjustment conveniently and fastly. The order size setting can be finished within 1 minute.
  • The cam-linkage mechanism drive auto-emendation section by fan shape forwarding to enable good box sticking and good order output.
  • The strong wind blower work on box vertically to make sure nice box sticking.
  • After auto-emendation section there are another four pressure rollers with dia.60mm to keep output thickness more even and more better looking.
  • The output section is equipped with detective photo electricity. Customer can set each lot order quantity ranging from 1 pc to 20 pcs, then the finished output will be delivered, which can save labor and accurate quantity.

2. Details

The structure is consist of the following units:

  • Frame
  • Lifting workbench
  • Forepart paper feeding device
  • Forepart correction device
  • Midpiece conveying device
  • Midpiece pressing device
  • Finished products side outputting device
  • Electrical control system

3. Charcteristics

Brand electric spare parts

  • Siemens electric
  • Omron photoelectricity switch
  • Japan TOKY counter
  • Taiwan MINGWEI electric powe
  • Taiwan Chengpang motor

4. Specification

Model YK-2800
Max size (L+W)*2 2600mm
Min size (L+W)*2 340mm
Max size(W+H)*2 1500mm
Min size (W+H)*2 260mm
High of feeder 1000mm
Power 4kw
Machine length 5300mm
Machine weight 2150kg
Machine speed 60m/min

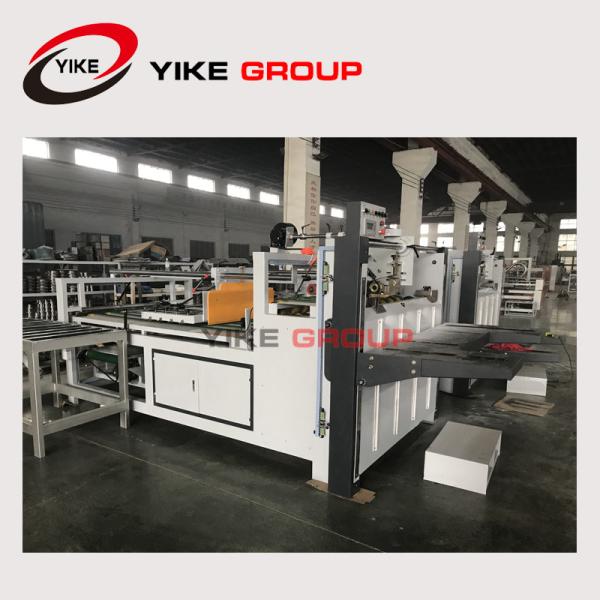

5. Machine Details Photo

Semi Auto Folder Gluer Machine 40-60m/min Speed For Corrugation Packing Industry
