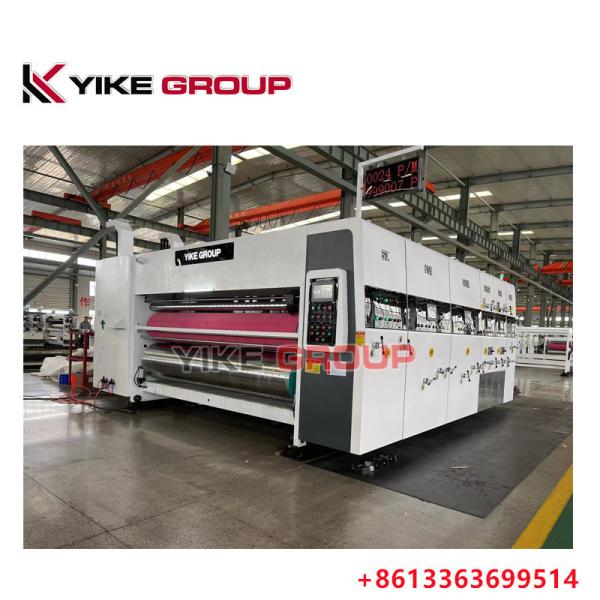

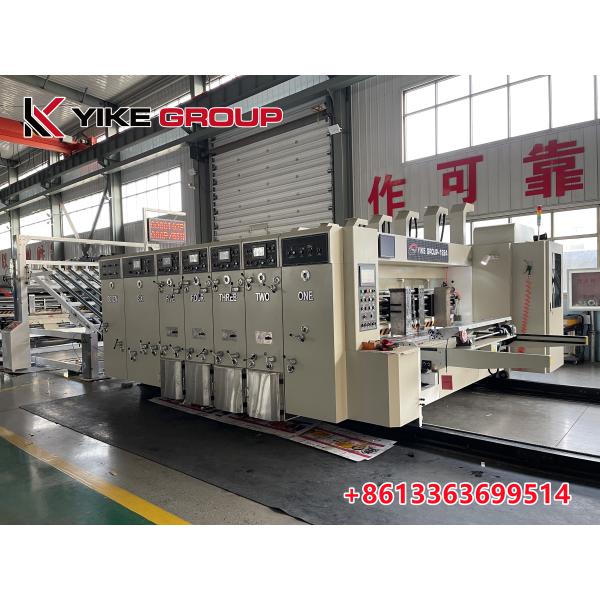

YK-1224 High Speed Printer Slotter Die Cutter Machine With Stacker For Carton Box Making

Main Technical Parameters

PRINTER UNIT

►Printing Roller

1.High quality steel production, surface grinded, hard chromium-plated. Static balance adjustment, stable operation, suitable for high speed running

2. Roller horizontal direction and circumferential direction with datum line, convenient for align plate

3. Fixed coil axis, suitable for standard hanging slats, realize rapid change plate

4. Electric 360° adjust printing roller, automatic digital display adjustment,remember store digital.

5. Installed with foot switch to control plate roller reversing, convenient change plate

6.Auto-zero function,order memory.

7. Printing roller plate-change and fix-plate function.

8 Printing roll axial is adjusted left and right by manual,maximum movement left and right 10mm,auto-zero instruction.

►Pressing Roller

1.Adopt high quality seamless delicately processing, dynamic balance adjustment, stable operation

2. Gear adopt backlash adjustment mechanism, adjustment none-affect gear enunciation, guarantee transmission accuracy

3.Printing roller can be adjusted for a distance 0-12mm

4.pressing roller, feeding shaft can be adjusted by manual , and loose and tight the roller also by manual.

►Anilox Roller

1. Steel anilox roller

2. Steel anilox roller mesh:150-300 line

►Rubber Roller

1.Overrunning clutch and automatic idling device, to prevent the ink dried

2. Rubber roller drum type middle part higher, to ensure ink quality

3. Rapid spaced spinner self-locking device, ensures uniform ink

4. Ink distributing roller independent drive mechanism, ensure ink quality

►Feeding Roller

1. Feeding roller diameterφ86mm, four wheels feeding

2. Feeding roller gear adopts no-side-gap regulating mechanism, can adjust the interval of 12mm

3.Hand adjustable rapid clearance adjustment self-locking device, fast, reliable.

Phase Adjust System

1.Planetary gear structure

2. Digital computer 360 ° adjustment, both running and stopping state conditions

3. Printing phase adjustment of PLC computer display adjustment

4. After units separate, automatic reset system (eraser memory)

Phase Fix System

Pneumatic brake device, Unit separation and combination or phase adjustment, original point of transmission gear with constant

Zero Device

Auto-zero device, to ensure that the units have a unifo

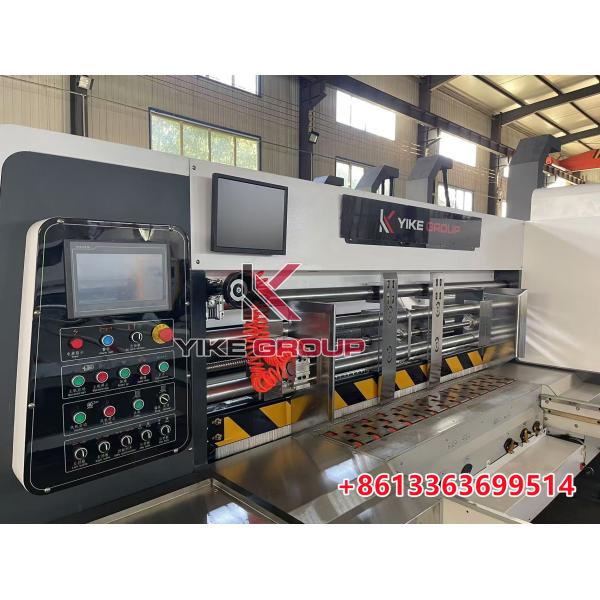

COMPUTER SLOTTER UNIT

• Single-axle double-knife slotter, use Internal tooth structure adjutment the height of box, So that oil does not easily contaminated cartons
• The first pressure line round, after preloading cardboard not easily crush
• The above press round Urethane appearance package, will not damage the cardboard
• The slotter knife stock use traverse mechanism, screw with linear guide, to move more flexible and precise
• Slotting phase and box height, computer and electric digital control
• Preload, creasing gap adjustment adopt computer and electric digital control
• The slotter knife stock gap adjustment adopt self-locking structure
• There's the elastic corner-cutting knife. Can cut three, five, cardboard without adjusted.
• Preload wheel, creas wheel, slot knife traverse position computer and electric digital control
• The slotter knife adopt Anti-knife manner
• Computer automatic arrange knife, can stockpile 999 memories

※DIE CUTTER UNIT

• Rubber roller mechanical spiral commutation 40mm move about horizontal structure
• Die-cutter phase, computer and electric digital control
• Horizontal phase, computer and electric digital control, range ±5mm
• Rubber roller and die roller gap use computer and electric digital control,
• Adjust the transfer roller use computer and electric digital control,
• The rubber roller compensated by motor-driven,control the speed of thr rubber roller, range ±3mm
• Rubber roller hsiuping cutting structure, keep rubber surface roughness
• Stripping the belt longitudinal output,to easy clean waste paper.

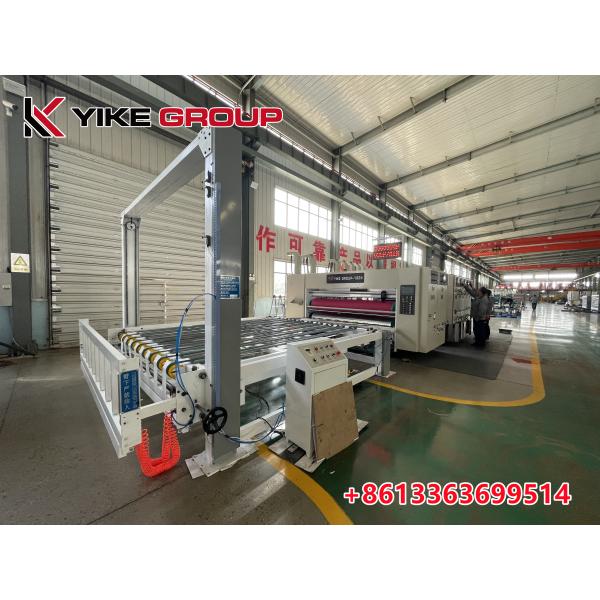

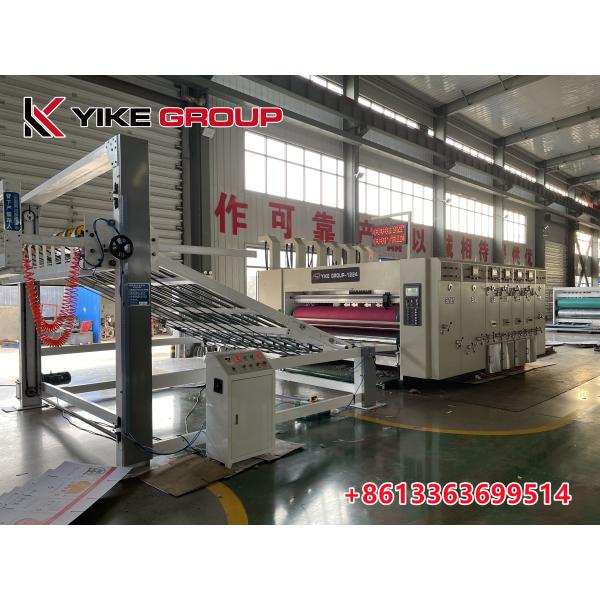

※ VIBRO SHAKEER (OPTION)

• 3 fan with 2 shaft vibrator unit
• Standard staker, safe and easy operation
• Maxmum stacker pipe height 1500mm
